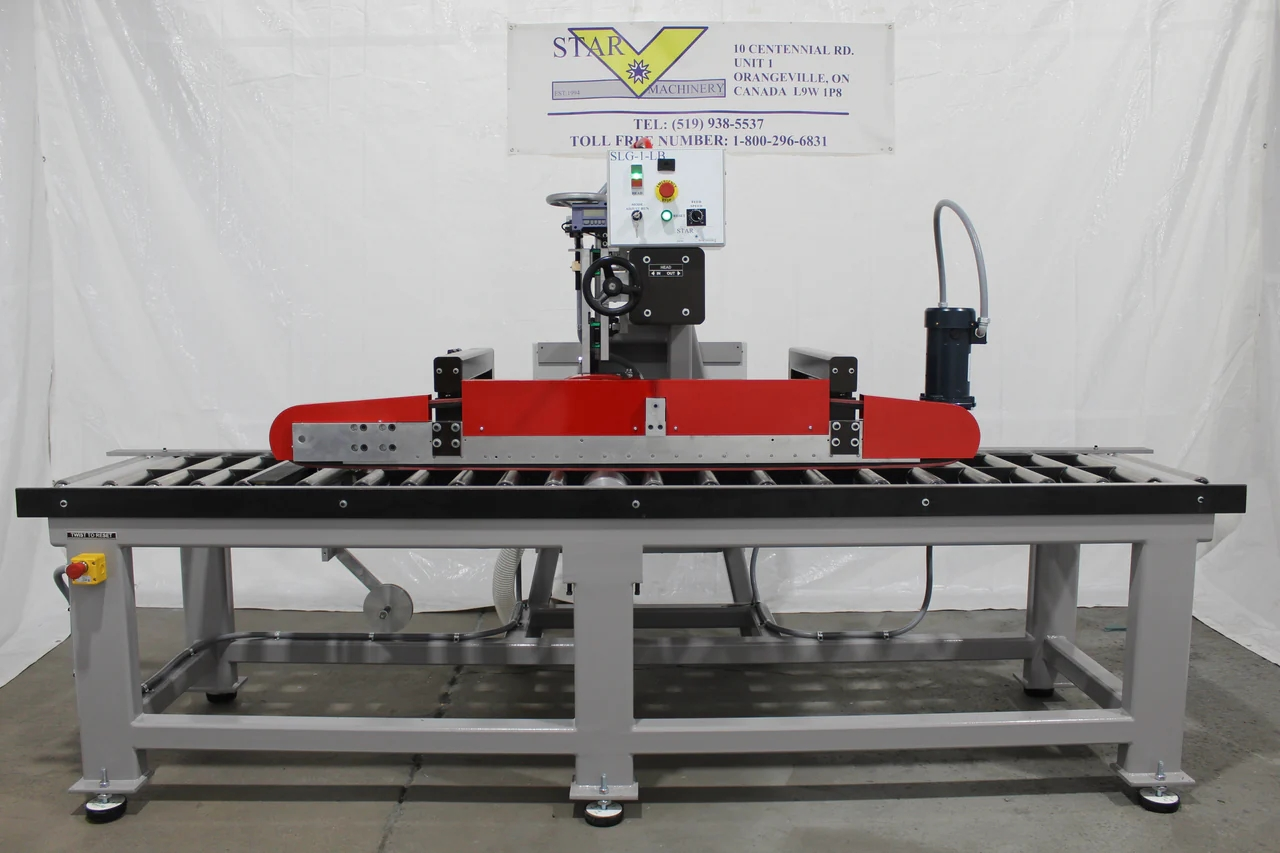

NEW MACHINERY SLG-1-LB

Overview

A must for any solid surface fabricator. With a single cutting station, a single tape applicator, and frame customizability. The SLG-1-LB can be ordered as a reverse feed machine to accommodate workflow in any shop.

Creating a V-fold edge, instead of building up the front edge, or a cove back splash profile, the v-groove is being applied from above, simultaneously taping from below, with the workpiece moving thought the machine automatically. Both linear and crosscuts up to 15” away from the fixed fence are possible. (Set-up controls are manual)

Features of SLG 1-LB
Narrowest Board: V Groove Center from Fence + 3.5”
Widest / Longest Board: Unlimited
Shortest Board: 20”
Thickness Capacity: 1/4” to 1-13/16”
Max. Cut Distance from Fence: 15” standard, options available 25”, 30”, 36”, and 40” upon request
Spindle Motor (1): 10 HP, 3 Ph, 3,600 RPM
Cutter Spindle: 30mm x 72mm, with clamping 8mm keyway
Cutter Max. Diameter: 9-1/4”
Cutter Depth Adjustment: Hand wheel on linear bearings and rails, ACME nut and rod, position on digital indicator
Cutter Side Movement: Hand Wheel on linear bearings and rails, ball screw and nut, positioning via ProScale digital readout
Tape Appicator (1): Manual positioning, automatic application
Roll Bed: Stainless steel rollers
Reference Rolls: Solid aluminum on cutting area
Material Feed: Double belt with variable DC motor, 0 to 50 FPM
Both linear as well as cross cuts up to 15” away from the fixed fence are possible
Construction: Tubular welded frame
Machine Dimensions (LxWxH): 132”x63”x72”
Service Connection Requirements
Voltage: 230V 3Ph
Air: 60 PSI
Dust Port: 3” requiring 197 CFM
Warranty
2 Year Warranty
Star V Machinery Customer Satisfaction Guarantee
