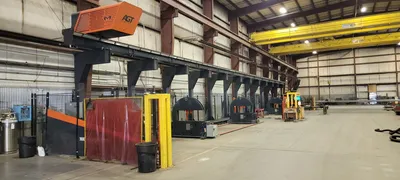

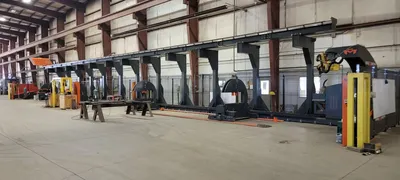

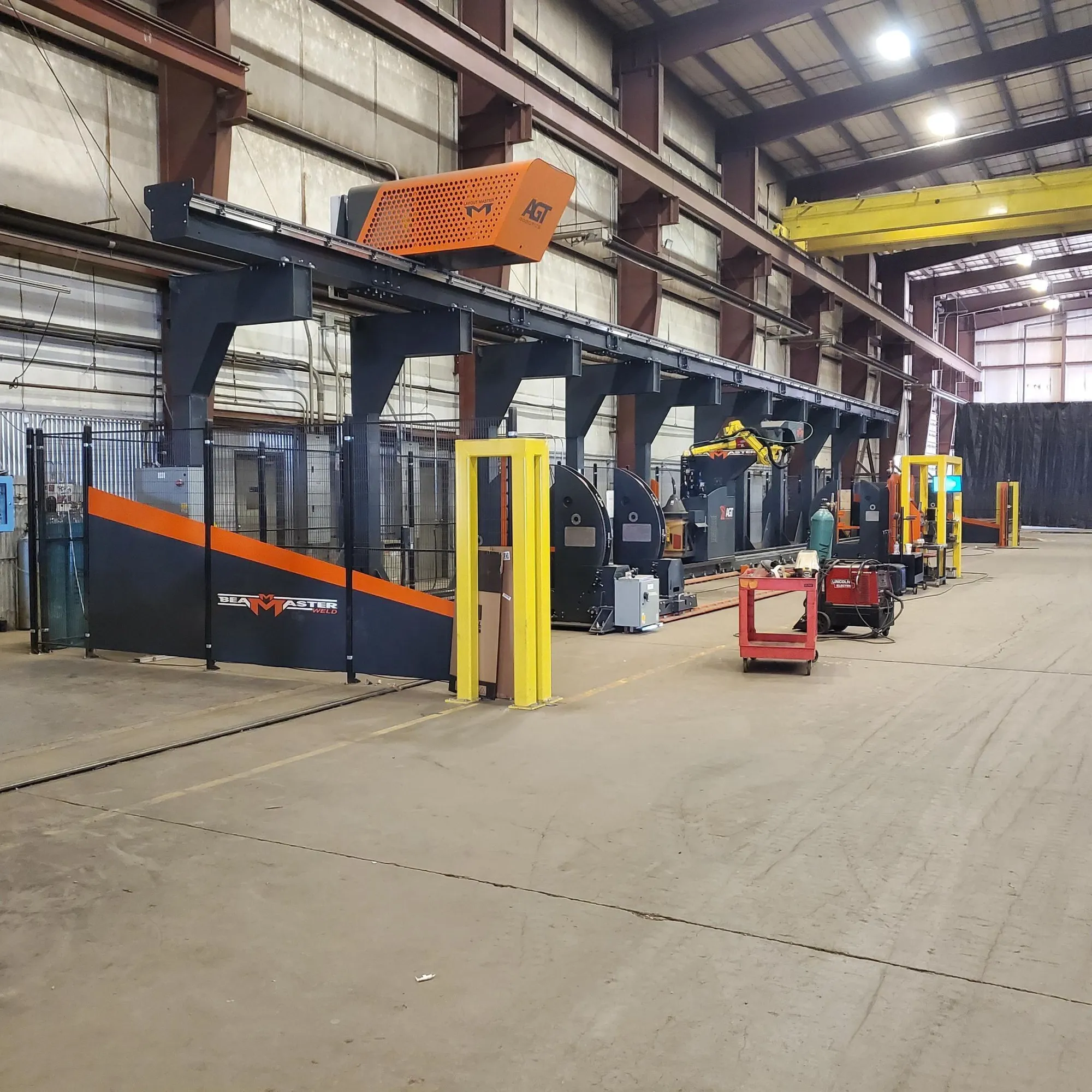

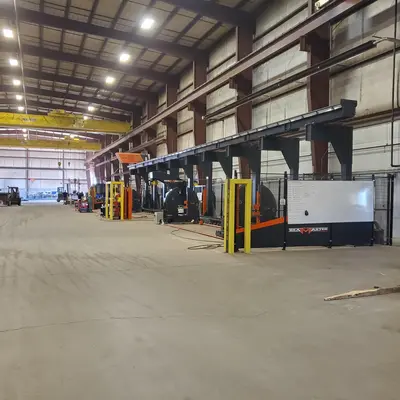

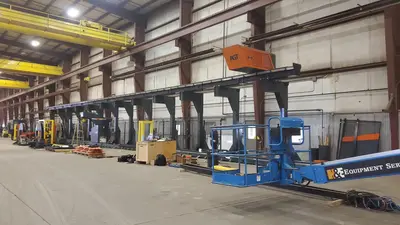

USED AGT Beam Master BM48R2
Overview
COMING SOON LATE MODEL, LOW HOURS
Specs
AGT Beammaster: BM48R2 [50-BM48R²]
Robot: Fanuc Arcmate 120iD/12L with R-30iB Controller
Power Source: Lincoln Powerwave R450 w/ Binzel W500 Water Cooled Torch
Material Handling:
Zone 1 – 58’ Beam / 37’ Rotator positioning
Zone 2 – 58’ Beam / 37’ Rotator positioning
Overall – 93’ Beam
Max Beam Size: 93’ x W48
Min Beam Size: 6.75’ x W6x14
Max HSS Size: 93’ x 20” x 20”
Min HSS Size: 12‘ x 6“ x 6”
AGT LayoutMaster model [50-LM-100] LM100 is an augmented reality fitting assistant designed for structural steel fabrication.
Key specifications:
Dimensions:
Width: 40’ – 138’
Height: 12’
Projection & Fitting Capabilities:
- High-resolution 3D color projection for connections, holes, and part numbers
- Precise fitting assistance for base plates, angle seats, and bearing pads
- Optimized workflow to reduce manual measuring and marking
Equipped With
Model Layoutmaster: [50-LM-100] LM100
Robot: Fanuc Arcmate 120iD/12L with R-30iB Controller
Power Source: Lincoln Powerwave R450 w/ Binzel W500 Water Cooled Torch
Additional option parts included:
4m extensions on both zones
Binzel torch cleaning station
AGT laser touch device
Safety zone equipment
Operator and corner guard protection
(2)- 500lb boxes of Lincoln L-56 .045” wire
Various spare parts
Torch head neck alignment fixture
