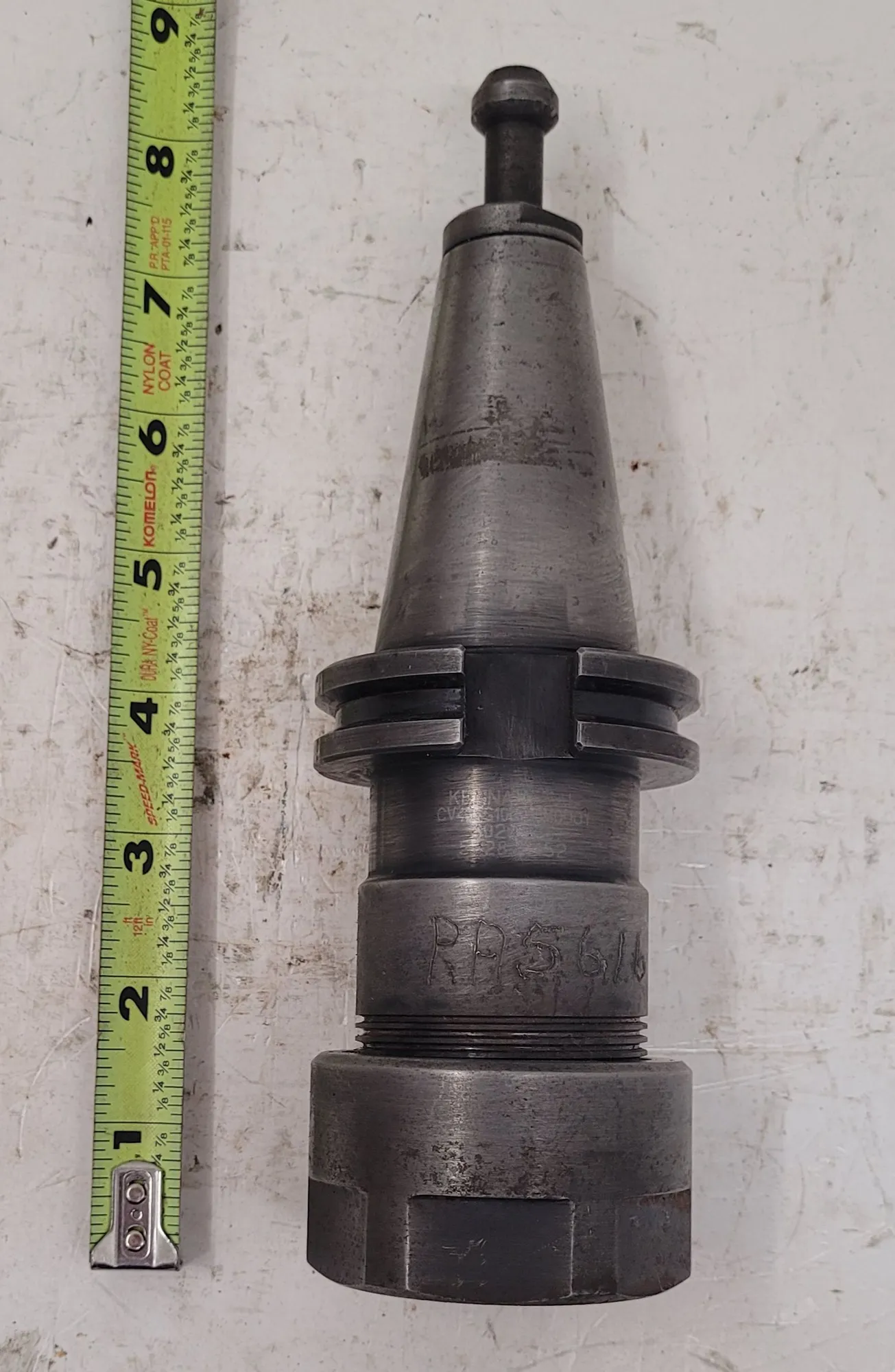

USED KENNAMETAL ERICKSON CV40TG100400

KENNAMETAL ERICKSON CV40TG100400 Collet Chuck, used but in good condition. CAT 40 Holder, 61.976 mm lock nut diameter, 101.6 mm gage length, and 150 torque foot-pounds. Ideal for precise tooling needs. Specs available upon request.

KENNAMETAL ERICKSON CV40TG100400 COLLET CHUCK

USED
Diagram in Photos for below specs
ISO Catalog ID CV40TG100400
[CST] Catalog Collet Series TG100
[D11] Lock Nut Diameter 61.976 mm
[L1] Gage Length 101.6 mm
[L9] Clamping Length 75 mm
[V] Adjustment Range 39 mm
Torque Catalog Foot Pounds 150
Stop Screw ID Drive Size 4 mm & 5/32
Overall Length: 6.687 in
CAT 40 Holder
