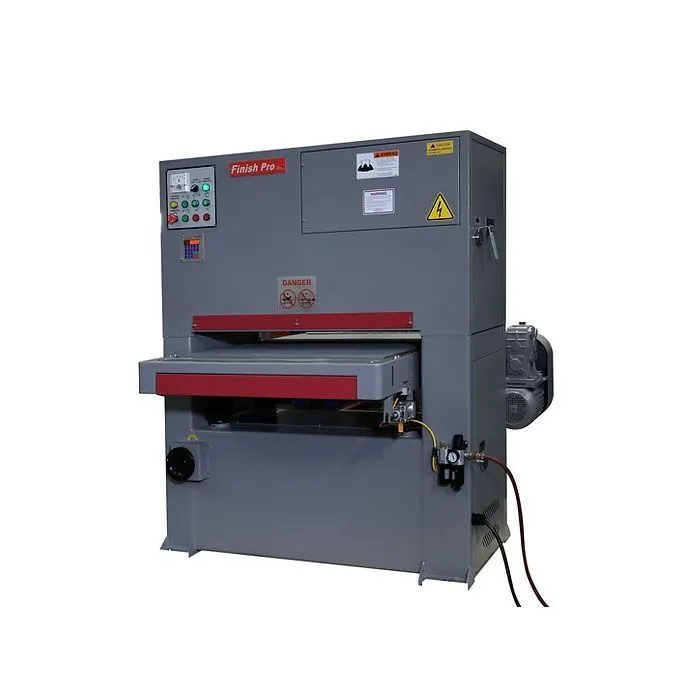

NEW FINISH PRO FP-3760T

Florida, United States
Asking Price
USD $23,950.00
1 available
3,965Listings|11Followers
Overview
Wide Belt Sanders

The Finish Pro 37 x 60 in. Dry Line Graining/Deburring/Finishing machine has a thickness capacity of 5-1/8 inches. Made in Taiwan. The main motor is 20HP, 208/230, 3-Phase.

Specs
Width of Belt
37"
939.8 mm
Length of Belt
60"
1,524 mm
Max Part Width
37"
939.8 mm
Minimum Part Length
12"
304.8 mm
Motor Power
20 hp
14.9 kW
Phase
3-Phase
3-Phase
Voltage
230V
230V
Amperage draw
75A on 220V
75A on 220V
Table Lifting Motor
1/4 HP, 230v, 3-Phase
1/4 HP, 230v, 3-Phase
Conveyor Motor
2 HP, 230v, 3-Phase
2 HP, 230v, 3-Phase
Conveyor Speed
16-66 FPM
16-66 FPM
Infeed Conveyor Length
20"
508 mm
Max. Thickness Capacity
5.125"
130.17 mm
Contact Roller Size (dia.)
8"
203.2 mm
Passline Height
31-37 in.
31-37 in.
Max. Workpiece Weight
275 lb
124.7 kg
Dust Collector Capacity (cfm)
1,800 ft³/min.
50,970,275.8 cm³/min.
Outlet of Dust Hood
6"
152.4 mm
Net Weight
2,650 lb
1,202 kg
Shipping Dimensions
65 x 65 x 72 in.
65 x 65 x 72 in.
Shipping Weight
2,950 lb
1,338.1 kg
Dimensions
63 x 63 x 70 in.
63 x 63 x 70 in.

* Min. workpiece length - Min 12 in., need a fixture for smaller parts

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly

Equipped With

OPTIONAL ITEMS - CALL FOR PRICE:

*WDC-2100: Wet Dust Collector , 5 HP, 2100CFM (for FP-2560T/FP-3760T/ FP-5160T) - $10,950.00
