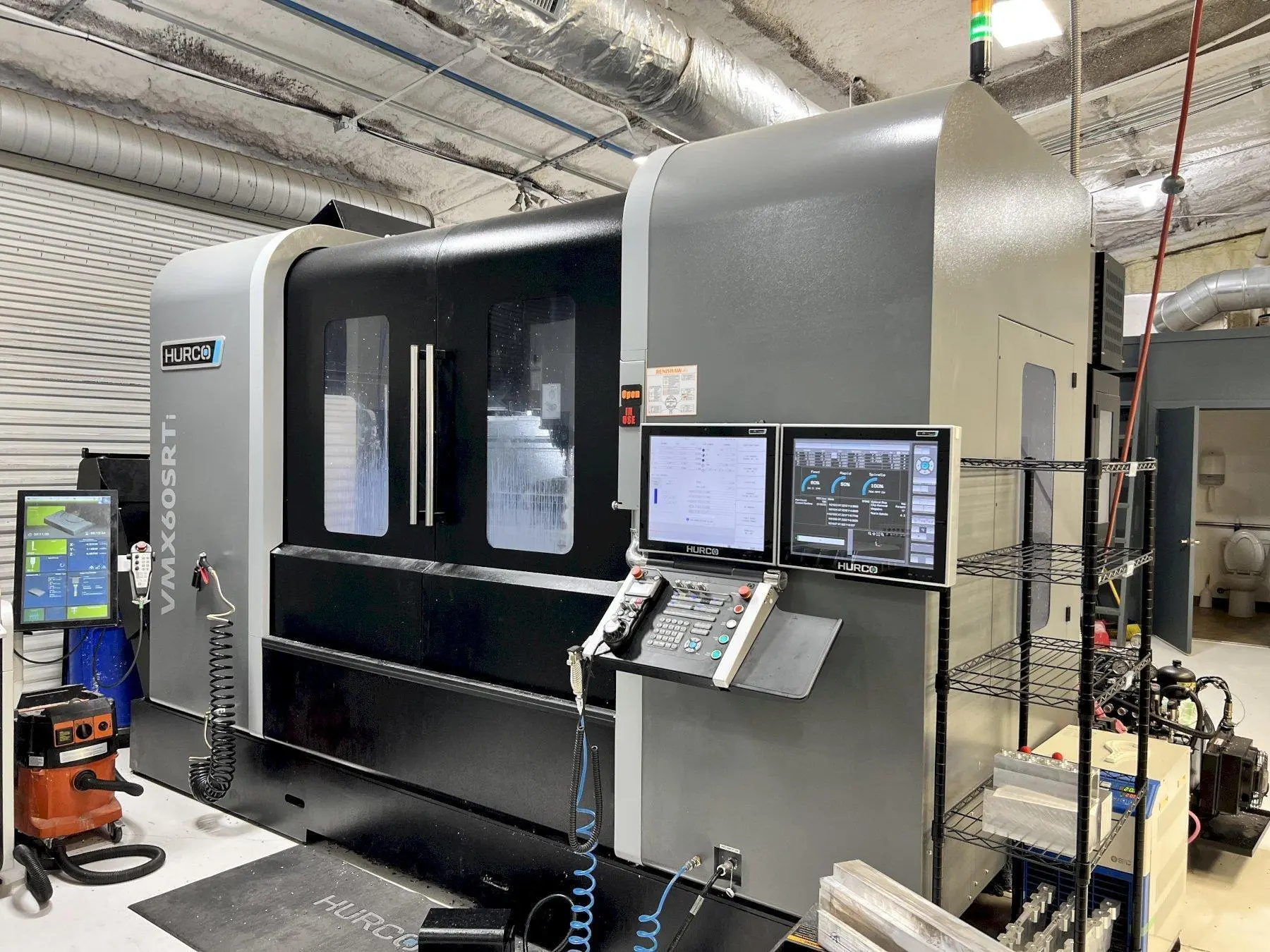

Used 2024 HURCO VMX60SRTI: 5-axis vertical machining center with WinMax Dual Screen CNC, 12,000 RPM spindle, and extensive travels. Features include tool/material library, Renishaw probes, 40-tool changer, and mist collector.
| X | 60" | 1,524 mm |
| Y | 26" | 660.4 mm |
| Z | 24" | 609.6 mm |
| # Axis | 5 | 5 |
| Power | 48 hp | 35.8 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 40 | 40 |
| Taper | CAT-40 | CAT-40 |
| Control | CNC (HURCO) | CNC (HURCO) |
X Axis Travel: 60″
Y Axis Travel: 26″
Z Axis Travel: 24″
B, C Axis Travel: +/- 92°, 360°
Spindle Nose to Table (Min-Max): .5 / 24.5 in
Table Size: 66″ x 26″
Table Size C: 23.6″ diameter
Max. Weight on Table: 3,000 lbs.
Max Weight on Rotary/ Trunnion Table: 1,100 lbs.
Max. Spindle Speed: 12,000 rpm
Tool Changer: CAT-40
Number Of Tools: 40
Max Tool Diameter: 2.95″
Max Tool Length:9.8″
Max Tool Weight: 15.4 lbs.
WinMax Dual Screen CNC Control
300 psi Coolant Thru Spindle
12,000 RPM spindle
3D Import includes DXF
Tool & Material Library
UltiPockets
NC/Conversational Merge
Renishaw RMP 60 Part Probe & RTS Tool Probe
Mist Collector
