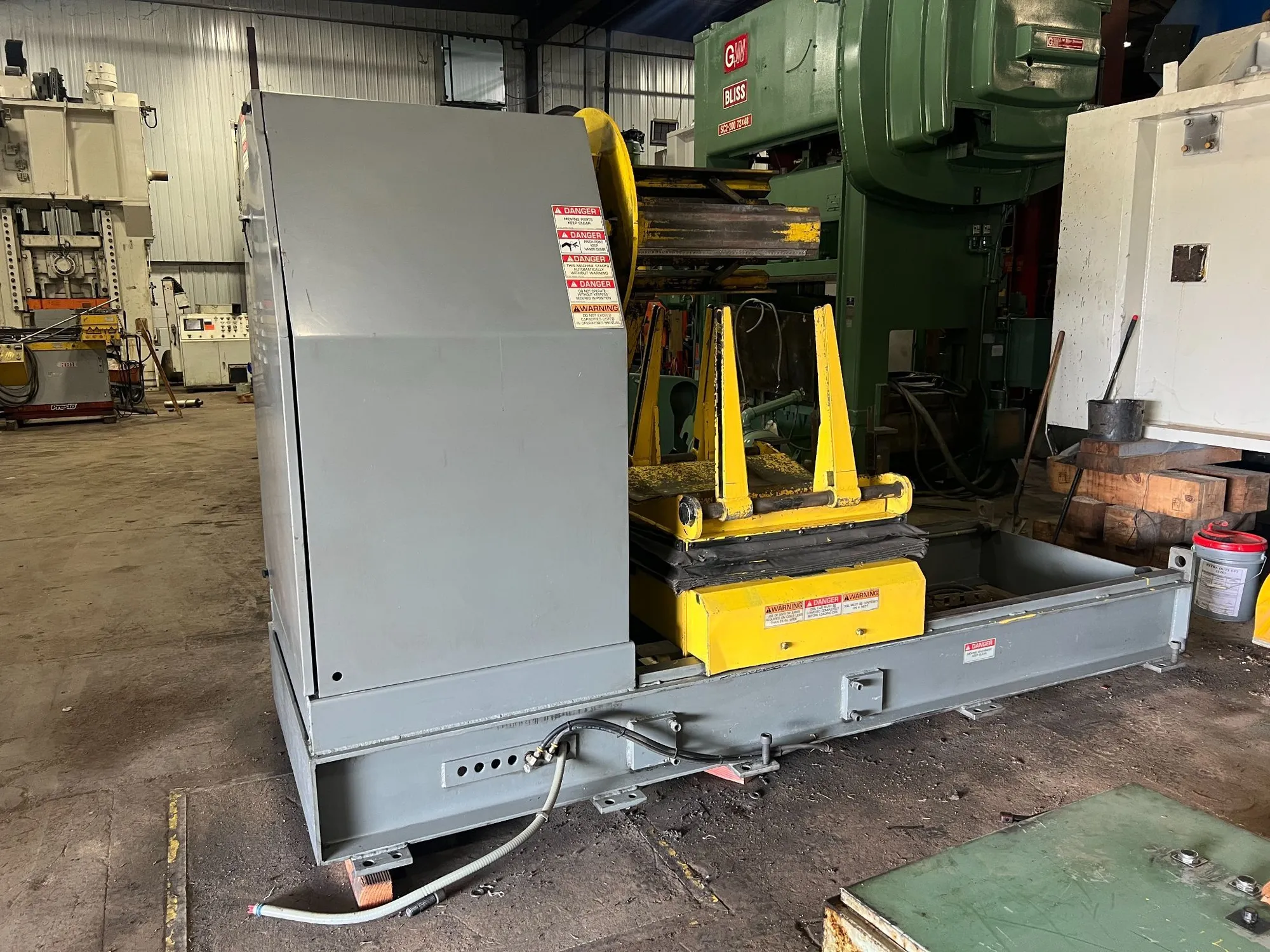

USED 2000 COE 8,000lb x 24" x .090" SERVO FEED LINE
Overview
Description
Used COE 8,000 lb Servo Feed Line, 2000 model, ideal for coil feed operations. Features adjustable cabinet base, 340 FPM speed, and COE straightener with variable speed drive and central lube system. Stock# 14327J, ready for your metalworking needs.
Specifications
| Max Weight Capacity | 8,000 lb | 3,628.7 kg |
|---|
COE 8,000 LBS X 24" X .090" SERVO FEED LINE, STOCK# 14327J
NEW 2000
SERVO FEED MDL# CPRF-SM-2 24
S/N# 27454-1
24" X .090"
6" X .187
2.63" ROLL DIA
SPEED 340 FPM
CABINET BASE ADJUSTABLE
COE STRAIGHTENER MDL# CPPS-300-24
S/N# 27454-2
24" X .090"
12" X .125"
2" X .187"
SPEED UP TO 80 FPM
7 ROLL 3" DIA
5 HP VS MOTOR
FULLY FUNNELED STOCK PATH FOR MATERIAL THREADING
3 ROLL CATENARY SECTION
AIR CYLINDER RAISE & LOWER OF UPPER PINCH ROLLS
UPPER STRAIGHTENER ROLL HEIGHT SCALES & POINTERS
INDEPENDENT ADJ OF UPPER STRAIGHTENING ROLLW
ELECTRICAL SAFETY DISCONNECT
5 HP AC VARIABLE SPEED DRIVE - DIGITAL CONTROL
CENTRAL POINT LUBE SYSTEM
460 VOLT THREE PHASE
ENTRANCE SIDE & EXIT SIDE PINCH ROLLS
COE COIL REEL MDL# CPR-PO-8024
S/N# 27454-3
CAPACITY 8,000 LBS
COIL WIDTH 24"
COIL ID 16"-21"
COIL OD 60"
POWERED EXPANSION
AIR DISC BRAKE
BACKPLATE
2 COIL KEEPERS
HYD COIL CAR
