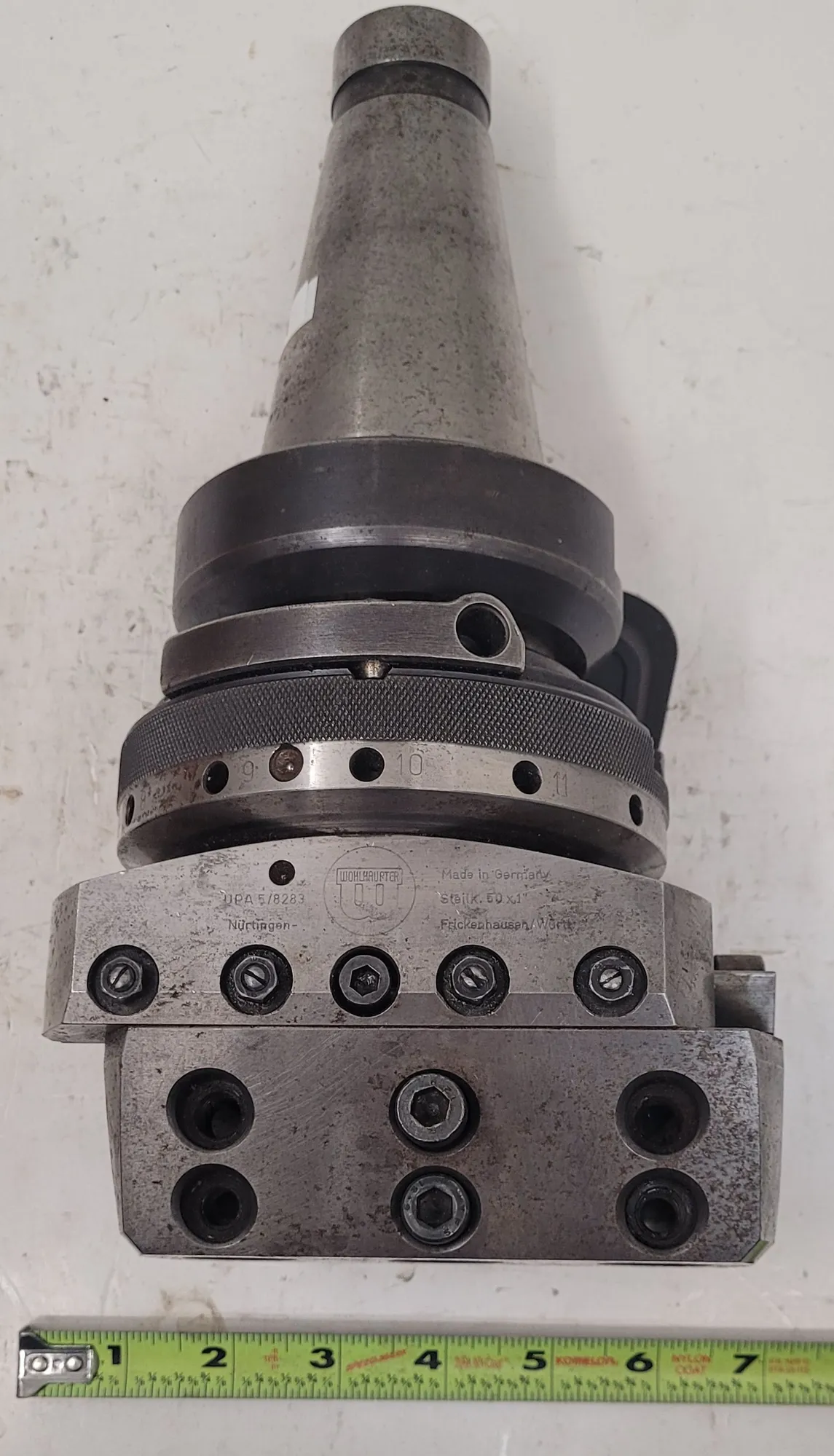

USED WOHLHAUPTER UPA 5

Wohlhaupter UPA 5 Boring Head #50 Taper, ideal for precision tooling. With a diameter range of 0.000" - 24.409", slide adjustment of 4.410", and max 600 RPM, this used item offers robust performance. Model UPA 5/8283, weight 7.9 kg.

Wohlhaupter UPA 5 Boring Head w/ NMTB50 SHANK

Brand: Wohlhaupter
Model #: UPA 5
Serial: 8283
Taper Type: NMTB50
1 Div: .0005”
1 Rev: .0160”
Diameter Range: 0.000" - 24.409" (0.00 mm - 620.00 mm)
Slide Adjustment: 4.410" (112.00 mm)
Feed: 0.050, 0.08, 0.12, 0.24 mm/rev
Max. Working Diameter: 500 / 620 mm
Weight (without shank): 7.9 kg
Max. Permissible Revolutions: 600
End Cut Off Accuracy: +/- 0.05 mm
