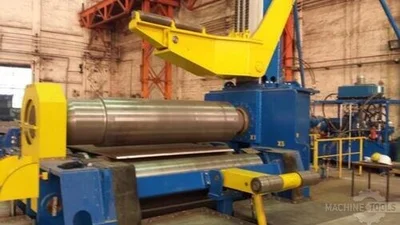

USED 2009 HAEUSLER VRM-HY

Force lower rol upper roll 1178 Ton
Cone bending attachment
Hardned and grounded rolls
Width between upper and lower roll 200 mm
Power 180 kW

Rolling width: 3050 mm
Rolling thickness 3x toproll Ø: 90 mm
Rolling thickness 5x toproll Ø: 100 mm
Rolling thickness prebending: 80 mm
Top Roll Ø: 840 mm
Bottom Roll Ø: 760 mm
Side roll Ø: 610 mm
Number of rolls: 4
Rolling speed: 1,5 / 3 / 4,5 / 6 M/Min
Adjustiment lower roll: 0 - 300 mm/min.
Number of driven rolls: 2
Power: 180 kW
Length: 7500 mm
Width: 3250 mm
Height: 4250 mm
Weight: 130000 kg
