USED 1997 BLOW SC2-300-60-42

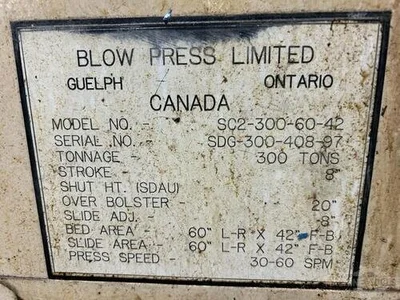

300-ton Blow SC2-300-60-42 Straight Side Mechanical Press For Sale, Year 1997

Tonnage: 300
Stroke: 8 inches
Shut Height: 26 inches
Adjustment: 8 inches
Bed Size: 60" x 42"
Ram Area: 60" x 42"
SPM: 30-60 VSPM

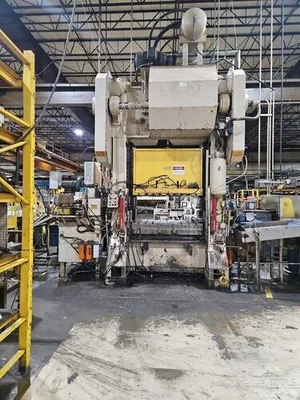

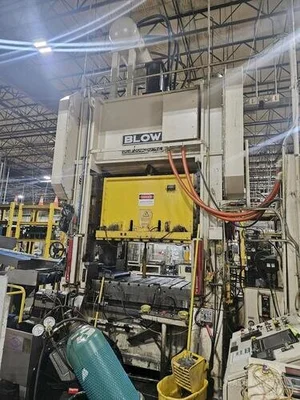

Used 300-ton Blow Straight Side Mechanical Press

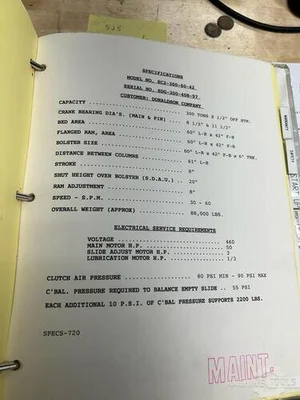

Blow Press Model SC2-300-60-42 Serial Number SDG-300-408-97Standard Specifications300-ton Capacity8" Stroke26" Shut Height on Bed20" Shut Heigh on Bolster8" Motorized Adjustment60" LR x 42" FB Bed Area60" LR x 42" FB Slide Area30-60 VSPMEquipment and FeaturesAir Clutch and BrakeAir CounterbalancesRecirculating Lube SystemT-Slotted Ram and Bolster 6" Bolster Plate ThicknessTwin End DriveVibro-Dynamic Floor Pads26" Wide Windows 460 Volt / 50 HP Main MotorWintriss Light Curtains Front and BackWintriss SmartPac PRO Press ControlsFloor Standing Approx. Press Weight:  #88000 lbs.Price includes installation of NEW Flywheel Bearings.Can be seen under power in the S&G Press Livonia Michigan Warehouse.
If you're searching for a reliable used mechanical press, consider this robust 300-ton Blow Straight Side Mechanical Press, Model SC2-300-60-42. This heavy-duty industrial press offers an impressive 300-ton capacity, ideal for demanding metal stamping and forming operations.

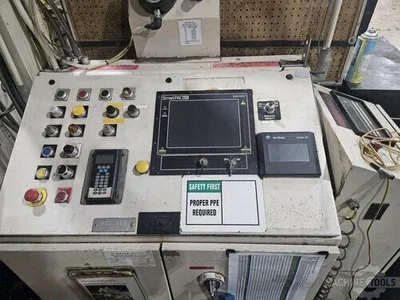

With an 8-inch stroke and generous 60" LR x 42" FB bed and slide areas, it accommodates diverse tooling and large workpieces. The twin end drive ensures superior force distribution, leading to enhanced precision and die life. Equipped with an air clutch and brake, air counterbalances, and a recirculating lube system, this Blow press is built for continuous, high-performance production.Safety is paramount, thanks to Wintriss Light Curtains (front and back) and Wintriss SmartPac PRO Press Controls, providing advanced monitoring and diagnostics. Vibro-Dynamic Floor Pads minimize vibration for quieter operation. This floor-standing straight side press also includes new flywheel bearings for immediate, reliable use. Discover the efficiency and power of this used 300-ton press machine for your manufacturing needs.Click Here For More Blow Press Metal Stamping Equipment
