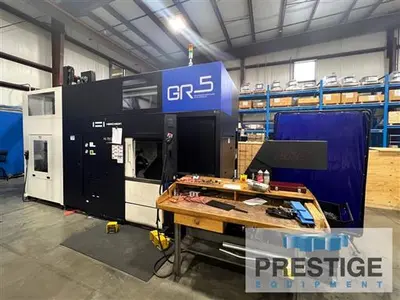

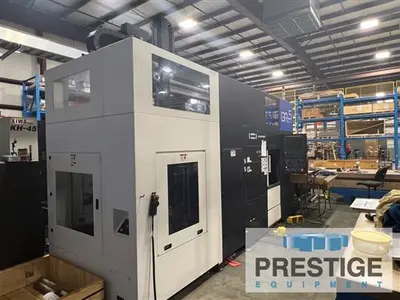

USED 2022 HWACHEON HWACHEON HI-TECH230A
Overview
Specs
CAPACITY:
Swing Over Bed: 27.16"
Maximum Working Diameter: 16.73"
Maximum Working Length: 15.86"
Maximum Bar Diameter: 2.55"
Spindle Nose: A2-6
Spindle Thru-Hole Diameter: 2.992"
Spindle Speed: 4500 RPM
Spindle Motor: 25 HP
Spindle Inner Bearing Diameter: 4.33"
Electrics: 220/3/60
Approximate Weight: 12,980 Lbs.
Equipped With:

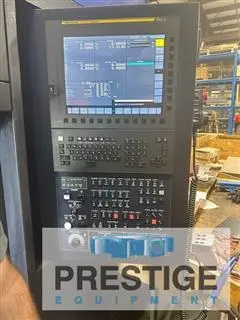

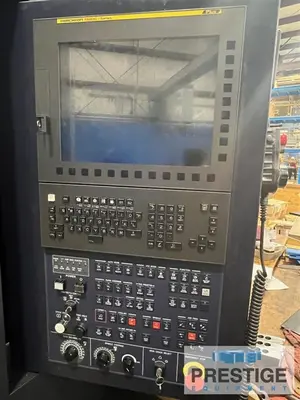

Fanuc i-Series Plus CNC Control
6" 3-Jaw Chuck
12-Position Turret
Tool Setter
Tailstock
LNS Chip Conveyor

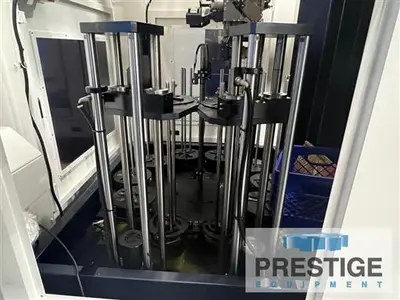

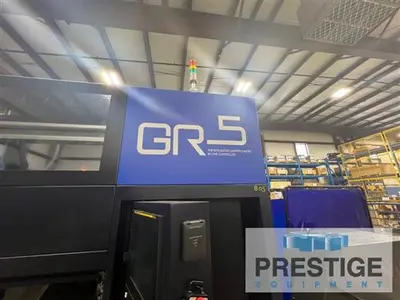

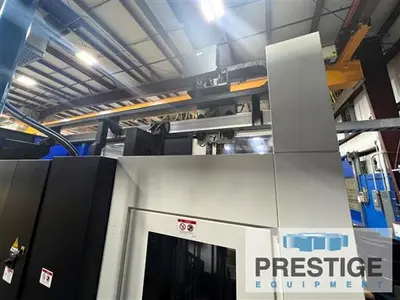

One Controller GR5 Integrated Gantry Loader
Features:
Fanuc i-Series Plus CNC Control
One Controller GR5 Integrated Gantry Loader
Tool Setter
Tailstock
Chip Conveyor
