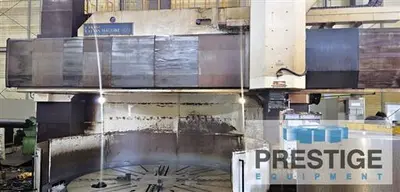

USED 2012 HNK NT-40/50

SPECIFICATIONS:
Table Diameter: 157.48"
Maximum Swing: 196.85"
Maximum Work Height: 98.42"
Table Speeds, 2-Speeds: 1 to 50 RPM
Table Weight Capacity: 88,000 Lbs
Machine Weight: 255,000 Lbs

TRAVELS:
X-Axis Ram Horizontal: -7.87" to +165.25"
Y-Axis Ram Vertical: 59.05"
W-Axis Cross Rail:
Ram Cross Section: 13.78" x 13.78"
Cross Rail Positioning: 6 x 9.84" Steps

Equipped With:

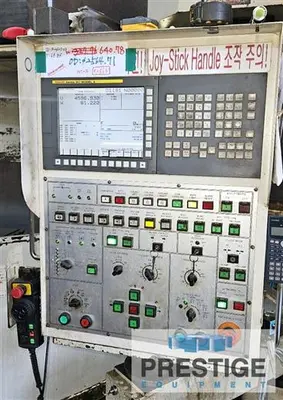

Fanuc 31iA CNC Controls
12 Position Automatic Tool Changer
Pendant Mounted CRT
157.84" 4-Jaw Chuck
Chip & Splash Guarding
Chip Conveyor System
118 HP/154 HP Main Drive Motor

NOTE:
Inspect In Plant Under Power!

Features:
Fanuc 31iA CNC Controls
Ram With 12-Station Automatic Tool Changer
154 HP Main Drive
