BENDING CAPCITIES:
Maximum O.D. Steel: 5" x 7/32"
Sched. 40 Pipe: 4"
Square Tube: 4" x 4" x 1/4"
CATALOG SPECIFICATIONS:
Speed R.P.M.: 3.75
Speed FT./Min.: 15
Min. Centerline Radius: 18"
Dia. of Standard Rolls: 15"
I.D. of Standard Rolls: 6"
Drive Motor: 15 H.P.
Equipped With:

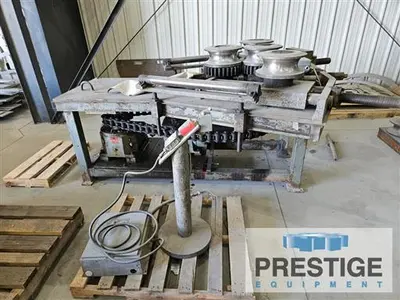

Pedestal Mounted Controls
Ability to Roll Coiled Pipe

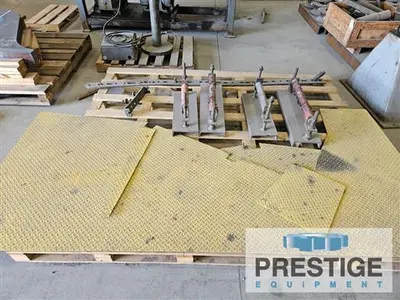

Large Quantity of Tooling, 3/4" Thru 5" Pipe (List Available on Request)
Features:
Ability to Roll Coils, Cold Forming, Low Distortion

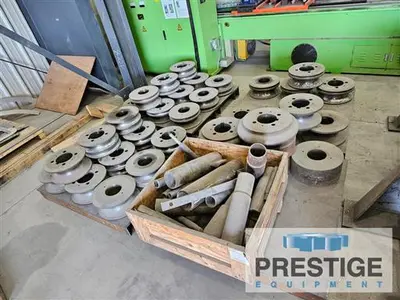

(13) Sets of Dies for Rolling Pipe 3/4" to 5"
