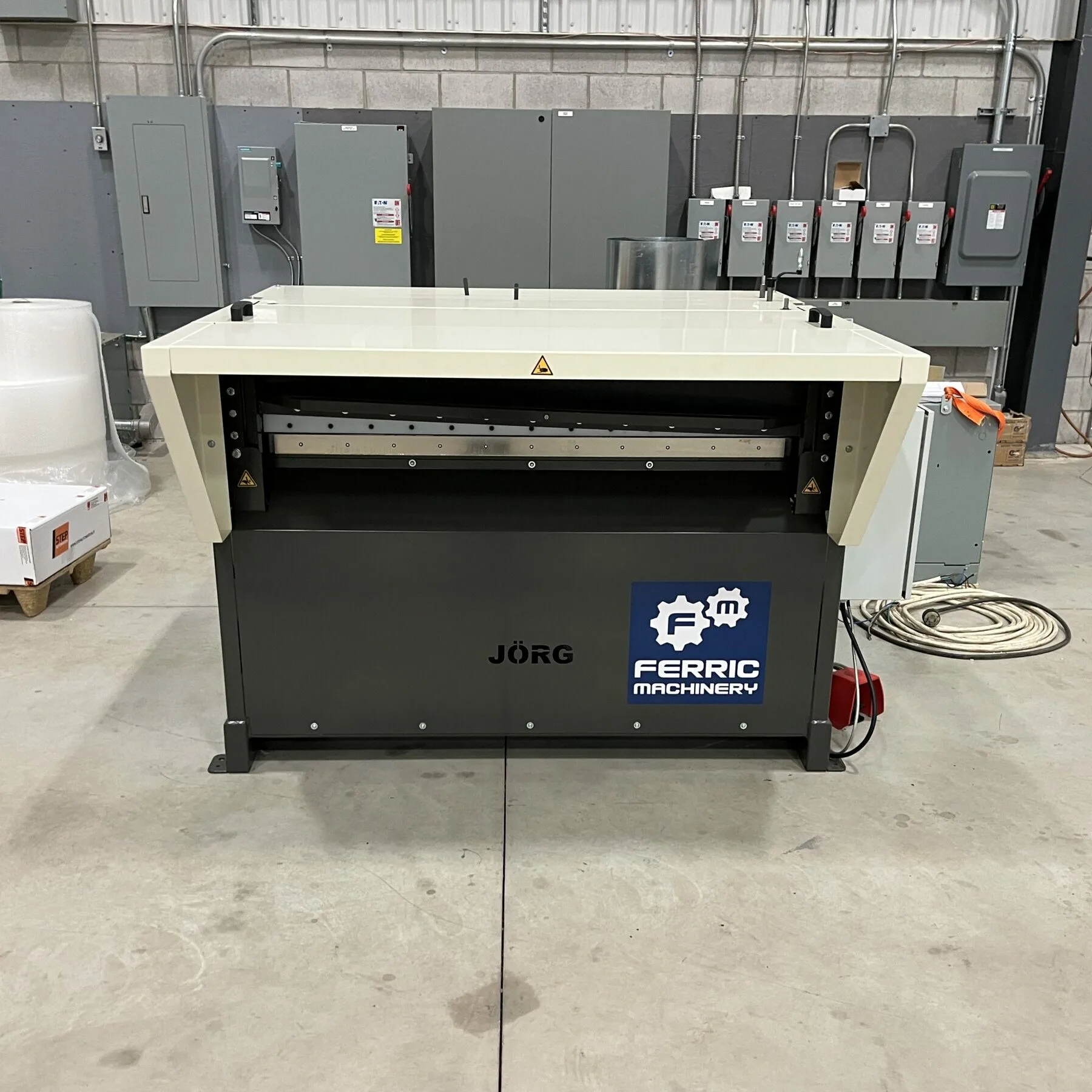

NEW JORG 4923

The JÖRG Cut to Length line 4923 is a compact machine for the decoiling, straightening, slitting, and cutting of rolls of zinc, copper, steel, aluminium, stainless steel, and other metals. Fully welded steel construction, compact design with electronic controls.

Advantages

-Decoiling, straightening and cut to length
-Very compact and stable machine.
-Easy operation via touch screen
-8 rules can be entered with separate length and number
-Cutting with stable guillotine shear driven by excenter.
-Length measuring with wheel and electronical encoder
-Straightener with 2 rubberized feeding rolls and 4 straightening rolls for proper straightening of the coil set in the sheet.

Control system updated

-Measuring system with encoder and steel measuring wheel
-Electronic PLC control with touchscreen.
-Frequency controller for accurate length measurement
-Transport speed adjustable via touchscreen.
-Function for automatic feeding and trimming.
-Function for automatic sheet return for easy adjustment of slitting blades.
-Programmable for length and number of pieces; 8 different job lines can be entered
-Slitting stop for reduced sheet waste during slitting
-Improved repeatability, now + 0.25 mm
-Control cabinet available on the left or right of the machine.

Film Applicator and other options available on request.
