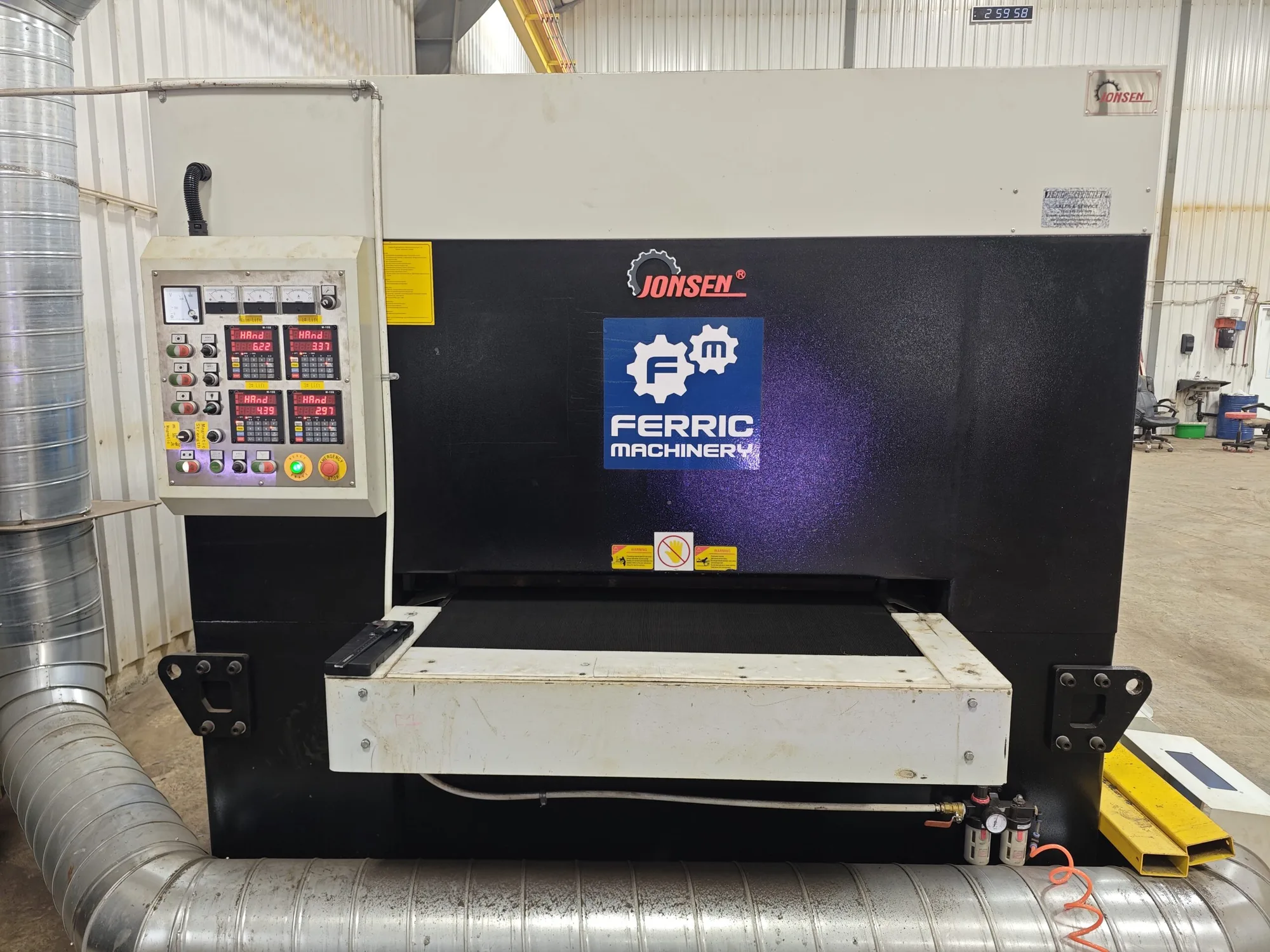

The Jonsen SB1000-3TB is equipped with a total of 3 crossbelt work stations:
• 2 sets of horizontally arranged de-slagging crossbelt station, each one rotates in opposite direction for better de-slagging performance and efficiency
• 1 set of horizontally arranged abrasive crossbelt station, for further parts cleaning and edge rounding.
| Max Thickness | 80 mm | 3.1496" |
| Table Width | 1000 | 1000 |
| # of stations | 3 | 3 |
Application
• De-slagging and edge rounding of plasma, high power laser, flame (oxy-fuel) cutting parts.
Max. working width..... 1000 mm (39.3”)
Working thickness...... 3 mm – 80 mm (0.118”-3.15”)
Min. working size...... 100 mm x 100 mm (3.94” x 3.94”) ferrous parts
Full width electro-magnetic conveyor
Feed speed............. 1-5 m/min (3.2-16.4 ft/min) (variable speed)
Dust extraction required
Weight................. 5,500 KG (12,100 lb) (approx.)
Machine dimension...... L2800×W2160×H2100 mm (110x85x82”) (approx.)
