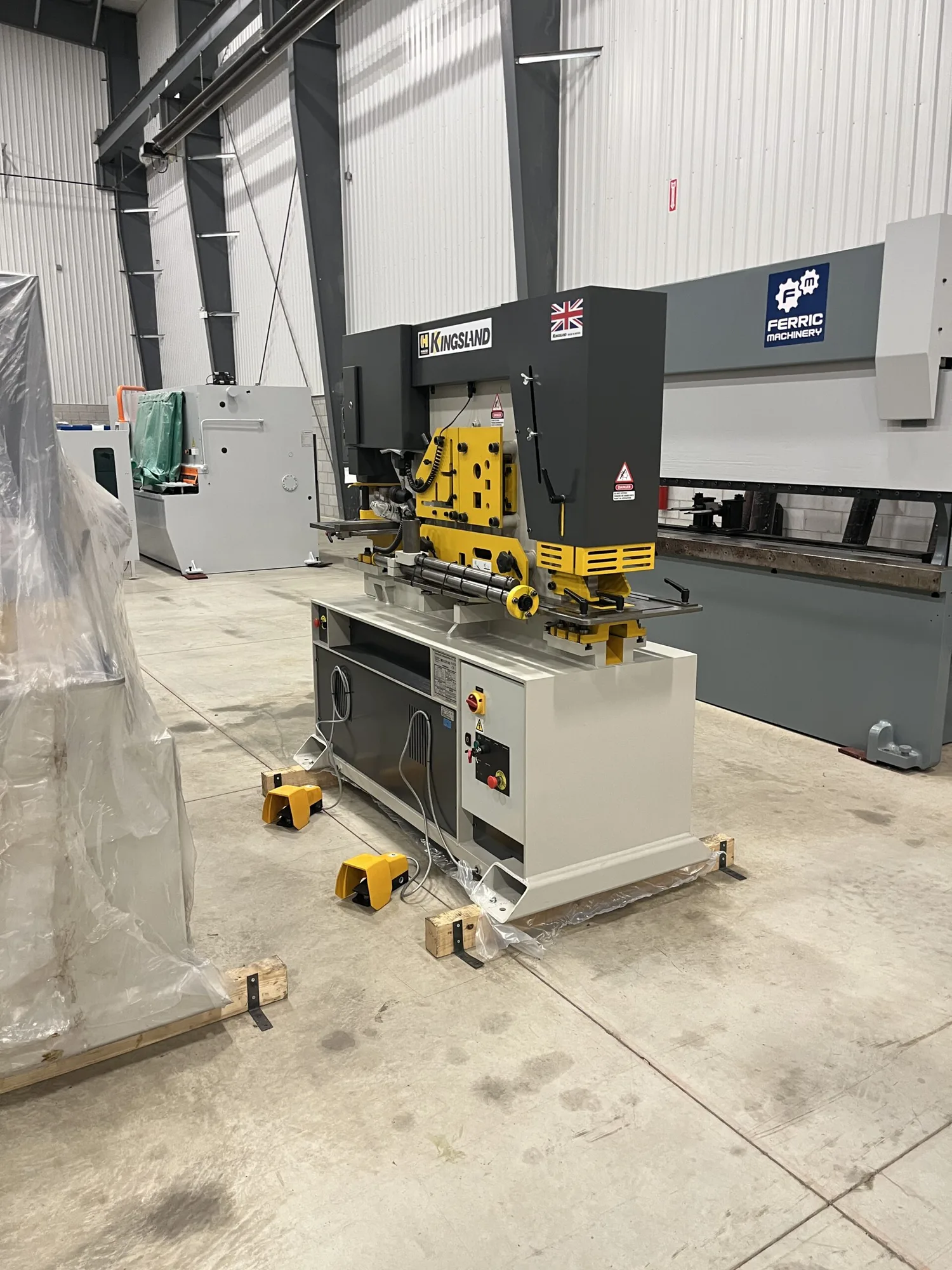

(1) 95 Ton PUNCHING STATION for punching: plate,
flat bars, angle and flanges of channel and joists
- With additional tooling, ability to punch large holes up to 6”
- Removable table block for punching flanges of channel or
Beam can be punched up to 1 ½” maximum capacity.
- Additional tooling in this versatile workstation can be
provided: bending unit – tube notching
(2) SECTION CUTTING STATION for round and square bar.
(3) ANGLE CUTTING STATION this station provides large capacity angle cutting at 90 Degree. Special feature: 45 Degree mitre cutting.
(4) SHEARING UNIT for flat bars: max: 15” x 3/4”, alternatively: 18-7/8” x 5/8”. A plate support table with adjustable stops is fitted to allow accurate and easy feeding.
(5) RECTANGULAR NOTCHING UNIT with adjustable 4 edge blades.
| Angle (L1) | 6" | 152.4 mm |
| Angle (L2) | 6" | 152.4 mm |
| Power | 10 hp | 7.5 kW |
| Throat | 14" | 355.6 mm |
| Stroke | 3.125" | 79.375 mm |
| Dimensions | 75 x 31 x 75 | 75 x 31 x 75 |
| Weight | 5292 lbs (Net), 5821 lbs (Gross) | 5292 lbs (Net), 5821 lbs (Gross) |
PUNCHING
Rated capacity 95 Short tons
Max. Capacities 1 3/8” hole in 3/4”
Diameter x thickness 2 1/8” hole in 1/2”
Maximum stroke length 3 1/8”
Speed over ¾” travel 56 (28 cycles)
Largest hole to be punched 6”
Maximum section flange punch 12”
Standard throat depth 14”
Working height 41 ½”
SHEARING
Flat bar 15” x 3/4”
Alternatively 18 7/8” x 5/8”
Blade length 19”
Angle flange trim 5” leg x 5/8”
Working height 35”
ANGLE CUTTING
At 90 Degrees 6” x 6” x ¾”
At 45 Degrees 3” x 3” x 3/8”
Working height 45 1/2”
SECTION CUTTING
Round or square bar 2”
Channel / I beam 6 3/8” x 3 ½”
Tee 4” x ½”
NOTCHING
Material thickness ½”
Width 2”
Depth Vee – Rect. 2 3/4” – 4”
Angle flange 4” x ½”
Working height 35”
Dimensions
Motor + voltage 10 HP – 575V/3ph/60Hz
Approx. weight 5,775 Lb
Machine dimensions 74” x 31” x 76”
