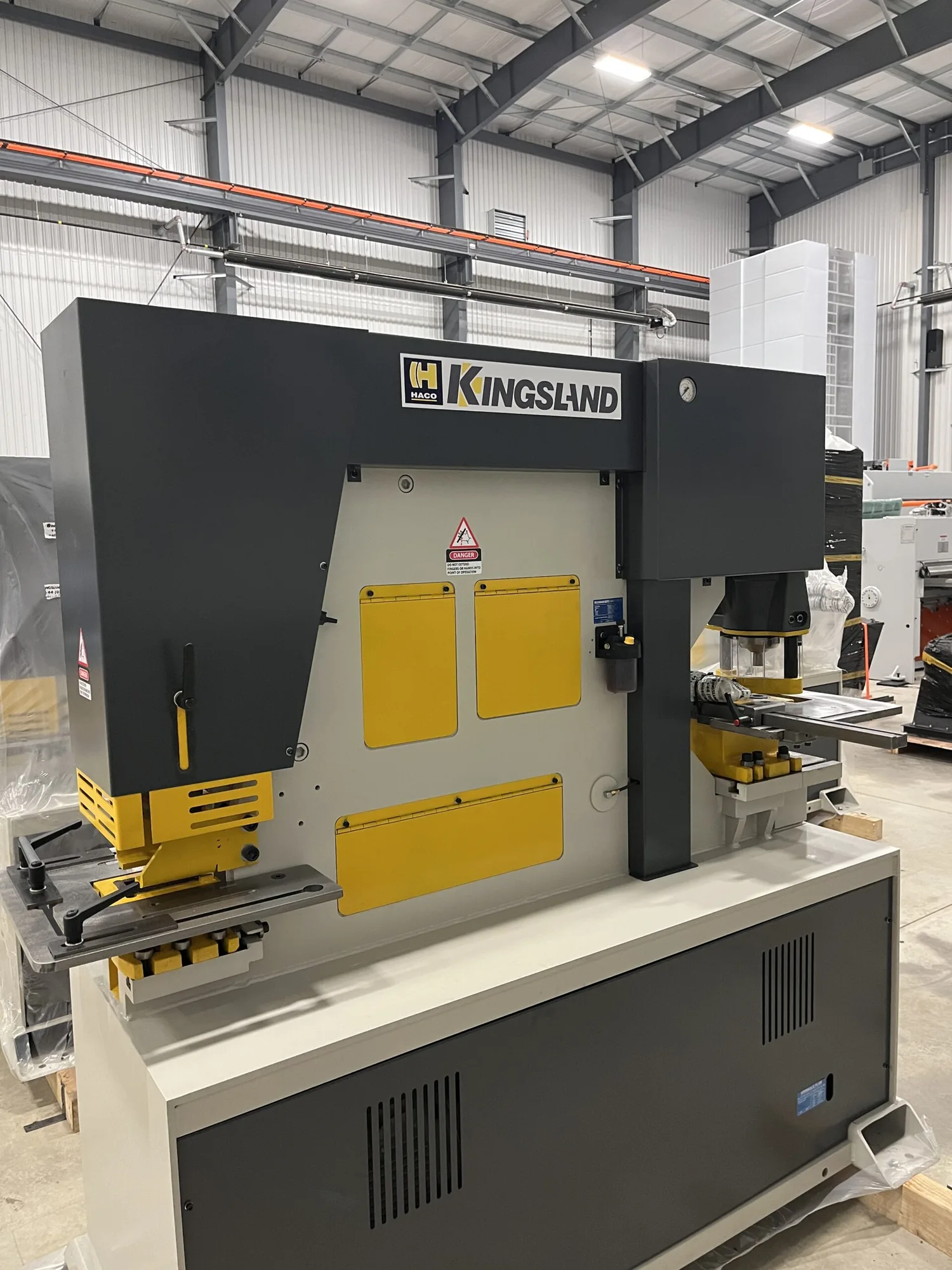

NEW KINGSLAND MULTI 125

(1) 125 Ton PUNCHING STATION for punching: plate,
flat bars, angle and flanges of channel and joists
- With additional tooling, ability to punch large holes up to 9”
- Removable table block for punching flanges of channel or
Beam can be punched up to 1 ½” maximum capacity.
- Additional tooling in this versatile workstation can be
provided: bending unit – tube notching

(2) SECTION CUTTING STATION for round and square bar.

(3) ANGLE CUTTING STATION this station provides large capacity angle cutting at 90 Degree. Special feature: 45 Degree mitre cutting.

(4) SHEARING UNIT for flat bars: max: 15” x 1”, alternatively: 24” x 5/8”. A plate support table with adjustable stops is fitted to allow accurate and easy feeding.

(5) RECTANGULAR NOTCHING UNIT with adjustable 4 edge blades.

All Multi models are standard delivered with a 39” Touch & Cut ruled length stop
