The GH Series delivers proven performance, all at a price more competitive than premium brands—while Ferric machinery provides superior service and faster responses. The all-new GH series will be the smartest investment you can make.
ENGINEERED SPECIFICALLY FOR HIGH POWER LASER CUTTING

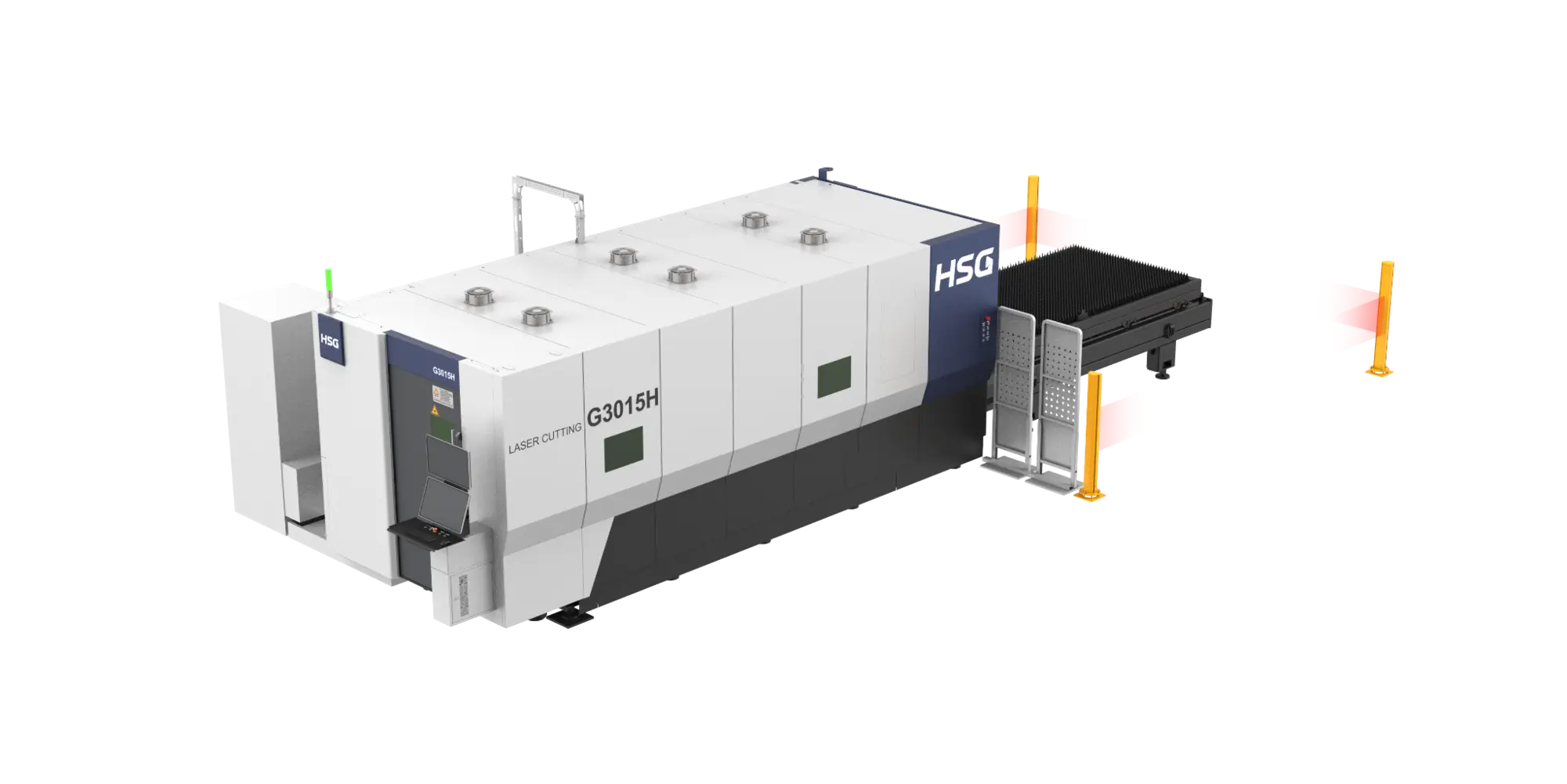

Discover a new level of productivity with the HSG GH Series, a high-power laser cutting machine designed to transform your fabrication process. From unmatched cutting speeds to impressive cost efficiency, the GH Series is engineered to meet the demands of modern high-volume production.
UP TO 60KW, ACCELERATE PRODUCTION WITH UNMATCHED SPEED
Built for versatility, the GH Series can cut thicker and tougher metal sheets with ease.
GH series can be combined with 3-60KW power, suitable for different processing ranges and application fields. Higher power, further improve your sheet processing efficiency.Reduce processing time by about 30%.
SPEEDING UP YOUR CUTTING CYCLE
Material Equipped Janpanese professional drive system brings upgraded dynamic ratio, which can significantly reduce general processing time. Lightning perforation technology improves thick-sheet piercing speed by 9%, greatly speeding up your cutting cycle.
SEAMLESS INTEGRATION WITH HSG AUTOMATION
Easily expand to automated production systems to increase your equipment utilization. Boost your productivity with our affordable automation solutions.
| KWs | 3-60kw | 3-60kw |
| Max Cutting Thickness | 12KW Machine: 1.5" Mild Steel / 1.25" Stainless / 1.125" Aluminum | 12KW Machine: 1.5" Mild Steel / 1.25" Stainless / 1.125" Aluminum |
| Max Linkage Acceleration | 4 - 2.8G | 4 - 2.8G |
| Table Size | 5ftx10ft - 6x12ft - 8ft x 20ft (larger available) | 5ftx10ft - 6x12ft - 8ft x 20ft (larger available) |
| Z-axis Stroke | 350mm | 350mm |
| Positioning Precision | +/-0.03mm | +/-0.03mm |
| Repetitive Positioning Precision | +/-0.02mm | +/-0.02mm |
| Max Loading Weight | TBA | TBA |
| Power/Current | 58KW/116A (12kw 6x12ft machine) | 58KW/116A (12kw 6x12ft machine) |
| Laser Source | Raycus | Raycus |
| Laser Head | HSG/Boci | HSG/Boci |
| Dust Collector | Donaldson | Donaldson |
| Security Package | Camera remote monitoring, Light curtains, Estops, monitoring alarms | Camera remote monitoring, Light curtains, Estops, monitoring alarms |
| Bevel Option | Optional | Optional |
| AC Room for Resonator | Included with 12kw + | Included with 12kw + |
| Control | T Alpha | T Alpha |
| Nesting Software | Cybnest / Lantek / Pronest | Cybnest / Lantek / Pronest |
| Dimensions | TBA | TBA |
| Weight | TBA | TBA |
