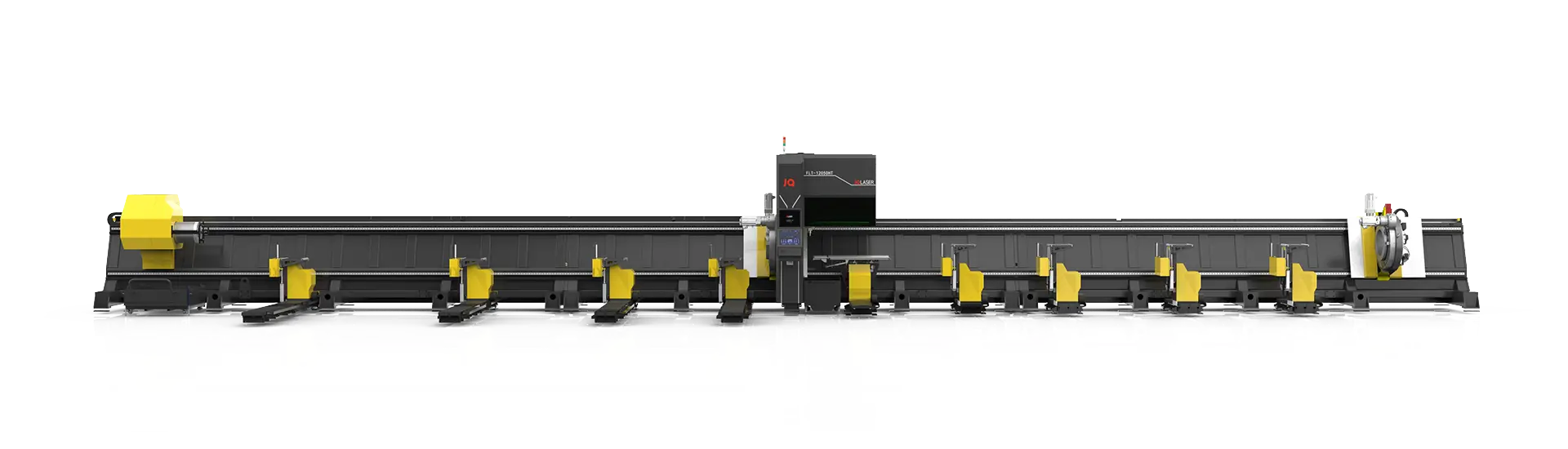

High-Speed Long-Length CNC Tube Laser with features including:
• Applications: Structural steel, shipbuilding, large-scale manufacturing
• High-speed, high-capacity cutting
• Extreme accuracy for long/heavy tubes
• No repositioning required
• Supports fully automated workflow
| Laser Power Kw | 6 - 20Kw | 6 - 20Kw |
| Max Tube Diameter | 650mm (25") | 650mm (25") |
| Tube Length | 6.5m - 15m (20ft - 50ft) | 6.5m - 15m (20ft - 50ft) |
| Chuck Type | Square or circle | Square or circle |
| Number of Chucks | 4 | 4 |
| Profiles | Round, square, rectangular, elliptical, C-channel, I-beam, etc. | Round, square, rectangular, elliptical, C-channel, I-beam, etc. |
| Positioning Accuracy | 0.05mm (0.002") | 0.05mm (0.002") |
| Repeatability | 0.05mm (0.002") | 0.05mm (0.002") |
| Automatic Loading/Unloading System | Available | Available |
| 5 Axis Cutting Head | Available | Available |
| Laser Source Type | Raycus/IPG/ max photonics/ JQ | Raycus/IPG/ max photonics/ JQ |
| Safety Enclosure & Interlocks | Yes | Yes |
| CAD/CAM Software Compatibility | Step, IGES, DXF, Tekla etc... | Step, IGES, DXF, Tekla etc... |
Dual-drive servo motor system
Full-length stability
