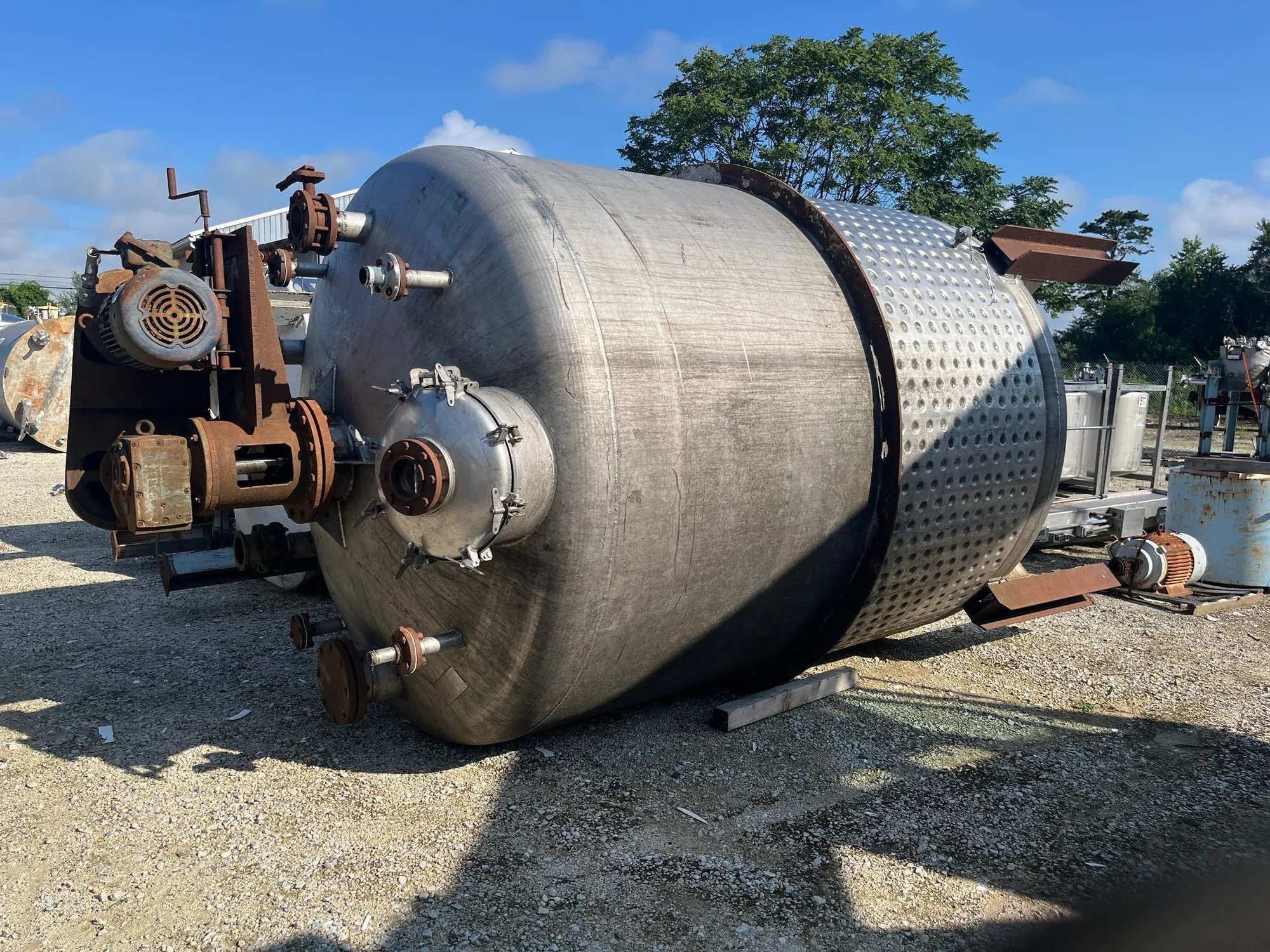

Used approximately 3,500 gallon 316 stainless steel reactor. Rated 50/full vaccum @ 350°F. Dimple jacket on bottom 1/2 side wall rated 100 psi @ 350°F. Dished top and bottom. 15 hp center-mounted top drive. Top manway. Center bottom outlet. On legs. Built by Check Gardin in 1986.
| Capacity | 3,500 gal | 13,248.9 L |
| Type of stainless | 316 | 316 |
| Internal Pressure | 50 PSI | 3.4 bar |
| Internal Temperature | 350°F | 176.7°C |
| Jacket Pressure | 100 PSI | 6.9 bar |
| Type Of Heads | Dished top and bottom | Dished top and bottom |
| Legs/Lugs | On legs | On legs |
