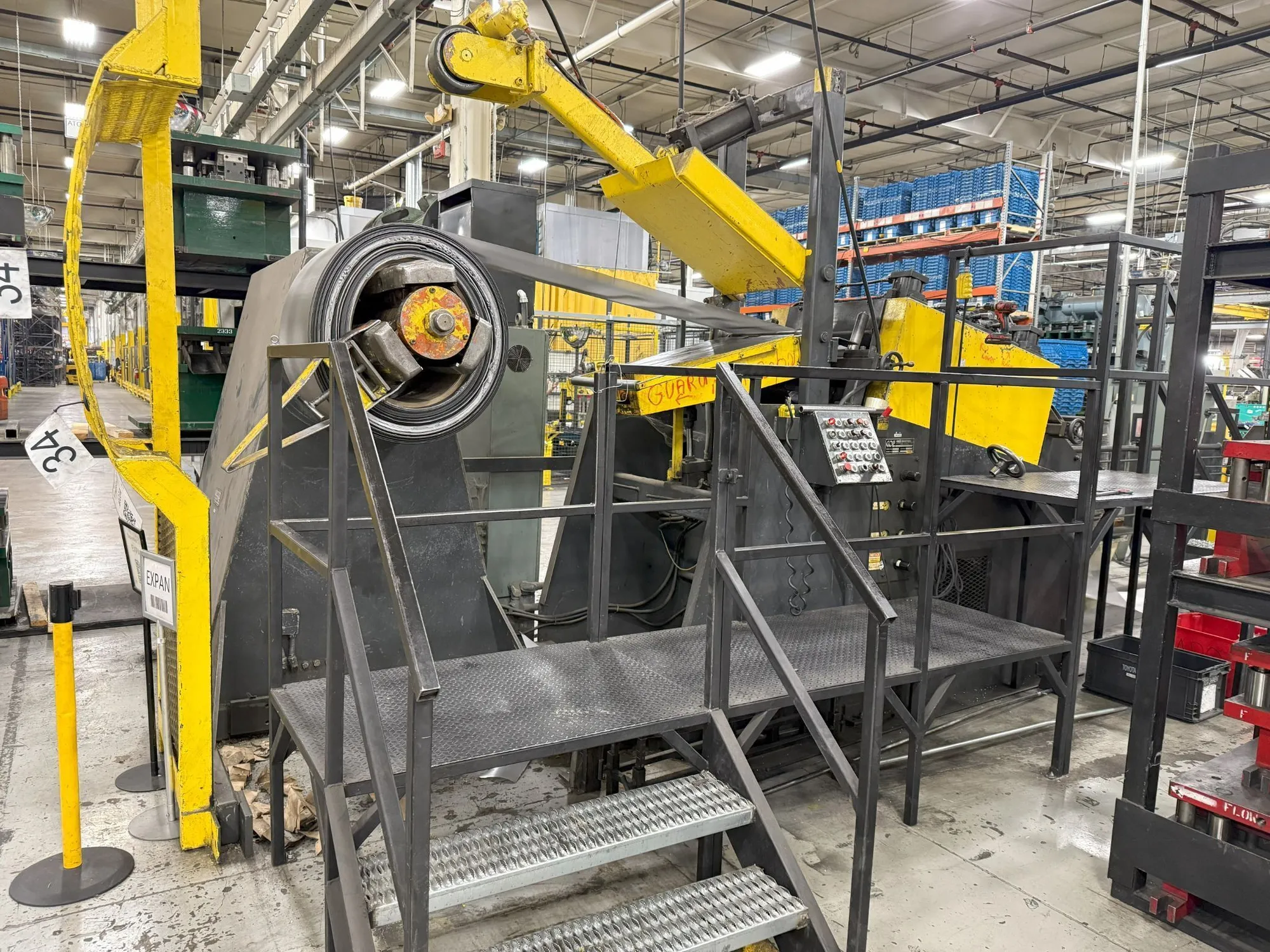

USED COE CPR-PO-15024 / CPPS-350
Overview
Description
15,000 lbs. x 24" Coe Press Equipment Coil Reel and Straightener For Sale, Model CPR-PO-15024 & CPPS-350
Specifications
| Coil Weight Capacity | 15,000 lb | 6,803.9 kg |
|---|---|---|
| Coil Width Capacity | 24" | 609.6 mm |
| Max Stock Thickness Capacity at Full Width | 0.187" | 4.7498 mm |
| Minimum Expansion Range | 19" | 482.6 mm |
| Maximum Expansion Range | 24" | 609.6 mm |
| Coil O.D. Capacity | 72" | 1,828.8 mm |
15,000 lbs. Maximum Coil Capacity
24" Maximum Coil Width
.156" x 24" Stock Thickness at Full Width
.250" x 18" Maximum Coil Thickness
72" Maximum Coil O.D.
19-24" I.D. Range
Equipped With
Coe Press Coil Reel Model # CPR-PO-15024
Three Leaf Mandrel Pads
Hydraulic Thread Drive
Hydraulic Mandrel Expansion
Adjustable Coil Guides
Coil Hold Down Arm with Motorized End Wheel
Air Brake Mounted on Main Spindle with Pressure Regulator
Threading Drive for Jog/Forward/ Reverse
Remote Jog Control on pendent
Self Contained Hydraulic Pump Unit
Coe Press Powered Coil Straightener # CPPS-350-24
7 Straightening Rolls x 3.5" Diameter
Entry and Exit Pinch Rolls with Air Operated Upper Roll Adjustments
Independently Adjustable Breaker Rolls
- Raise and lower by 2 ton Jacks
Adjustable Stock Width Edge Guides
Automatic Lubrication System
Inclined Head with Exit Cascade Loop Support Rolls
Air Operated Stock Peeler - Threading - De-Bending Station
Air Operated Hold Down Arm
Motorized Neoprene End Wheel
Air Operated peeler table with Spade Extension
Auto / Run Cycle
Loop Controls
