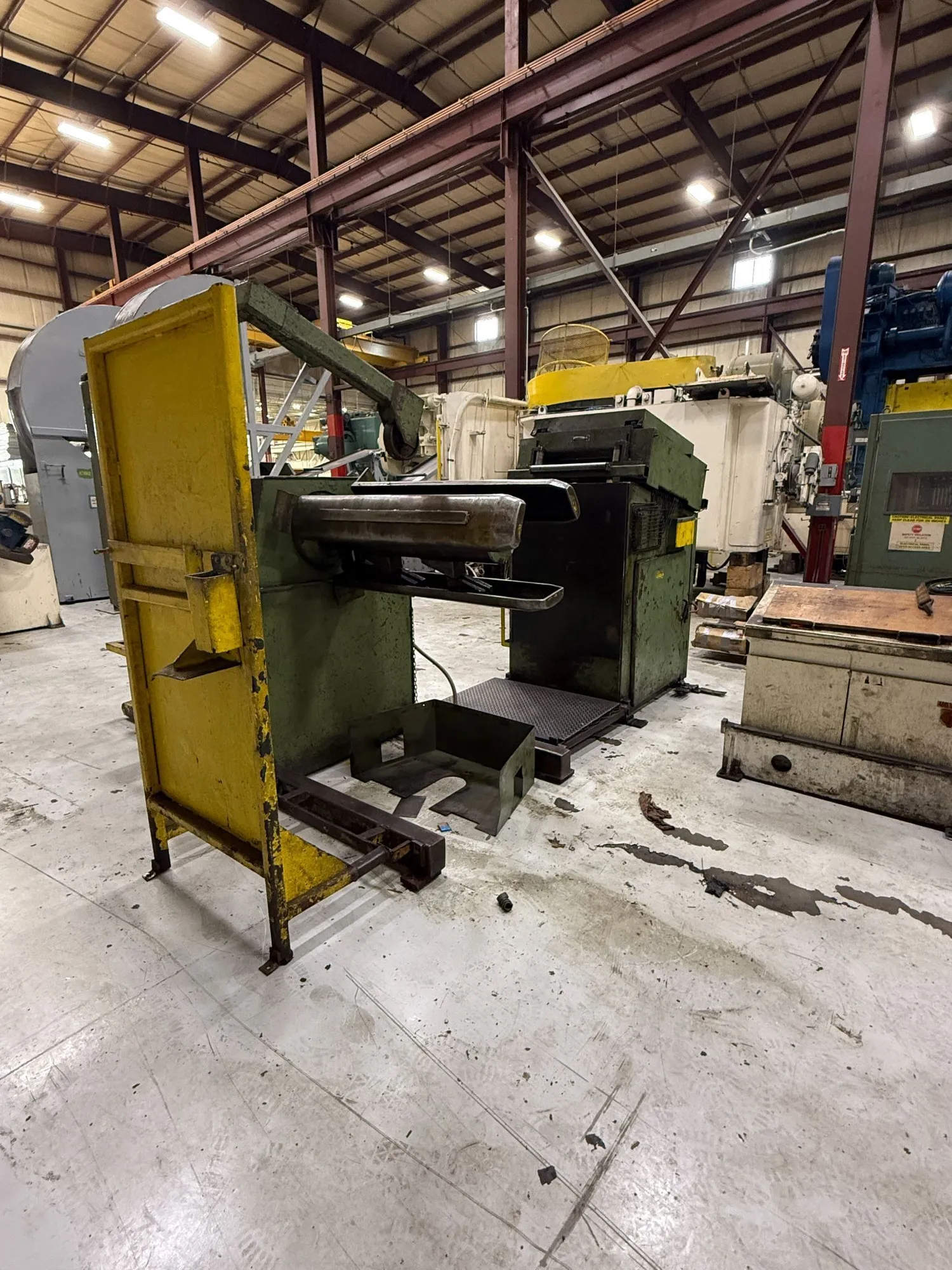

USED FEED LEASE PR-15M-42 / FLCC-24-76-7
Overview
Description
15,000 lbs. x 24" wide Feed Lease Coil Reel with Feed Lease Powered Straightener For Sale - Models PR-15M-42 and FLCC-24-76-7
Specifications
| Coil Weight Capacity | 15,000 lb | 6,803.9 kg |
|---|---|---|
| Coil Width Capacity | 24" | 609.6 mm |
| Max Stock Thickness Capacity at Full Width | 0.187" | 4.7498 mm |
| Minimum Expansion Range | 19" | 482.6 mm |
| Maximum Expansion Range | 24" | 609.6 mm |
| Coil O.D. Capacity | 72" | 1,828.8 mm |
15,000 lbs. Coil Weight
24" Maximum Coil Width
.187" x 24" Coil Thickness at Full Width
.250" x .12" Maximum Coil Thickness
Right To Left Feed Direction
72" Maximum Coil O.D.
19-24" I.D. Range
Equipped With
Feed Lease Coil Reel Model # PR-150M-42
Serial Number - 4509
Three Leaf Mandrel Pads
Hydraulic Thread Drive
Hydraulic Mandrel Expansion
Hold-Down Arm with End Wheel
Clock Spring Safety Guard
Air Brake on Main Spindle
Hydraulic Unit and Pump
Feed Lease Powered Coil Straightener # FLCCS-2476-7.5
Serial Number 1297
7 Straightening Rolls
Entry and Exit Pinch Rolls with Air Operated Adjustment
Adjustable Breaker Rolls
Automatic Lubrication System
Inclined Straightening Head
Adjustable Stock Width Edge Guides
Auto / Run Cycle
Loop Control
7.5 HP Main Drive Motor
