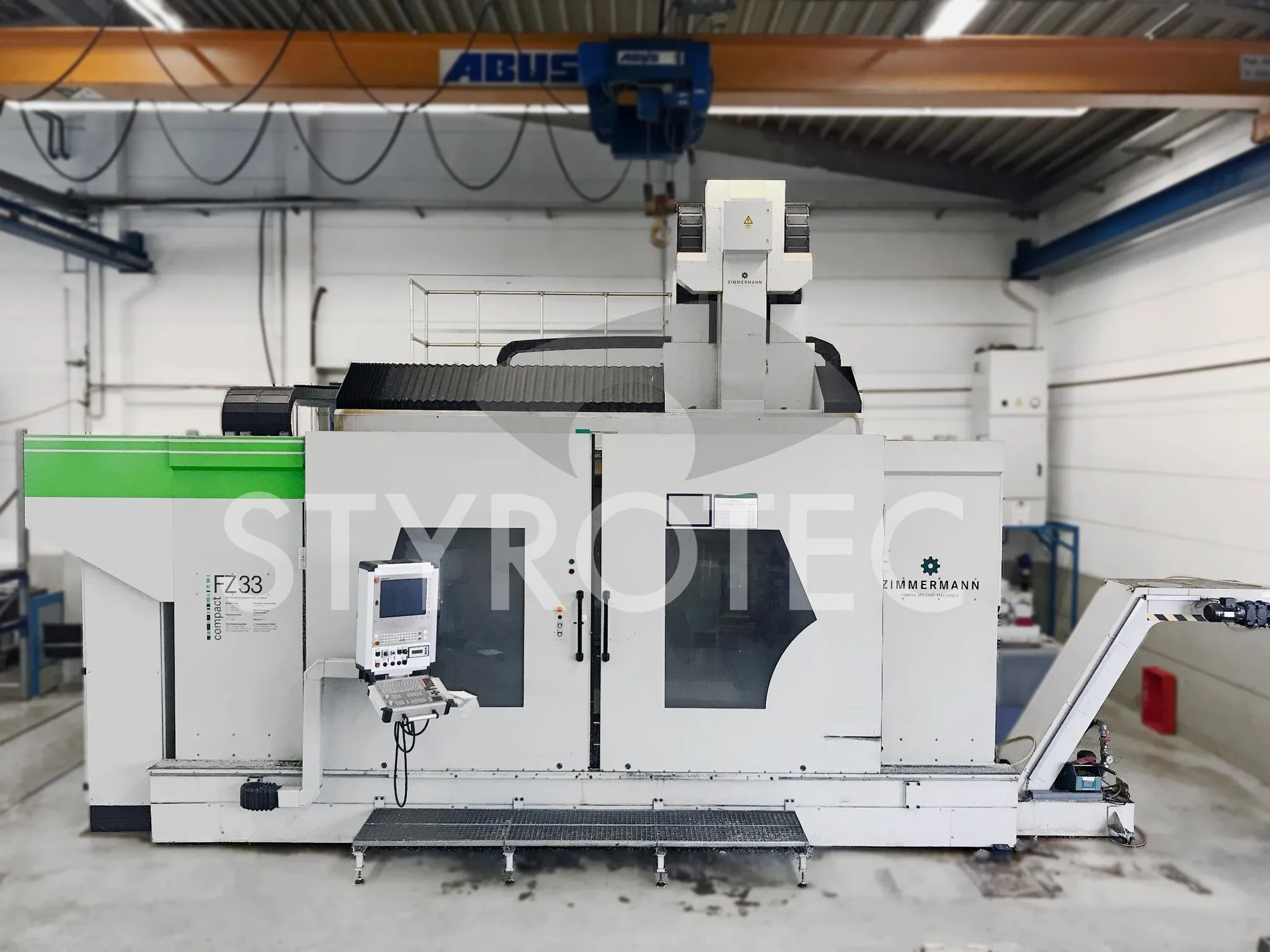

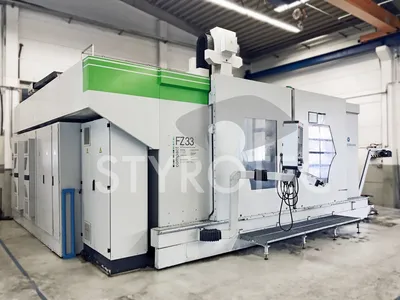

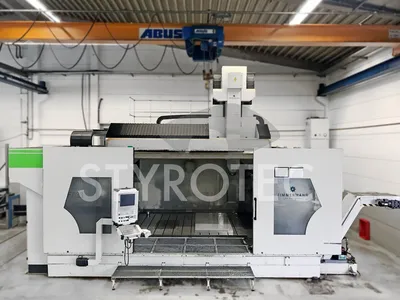

USED 2013 ZIMMERMANN FZ 33 COMPACT
Overview
Description
ZIMMERMANN FZ 33 COMPACT, 2013 model, used gantry machining center suitable for bridge and double-column tasks. Ideal for precision machining projects, this reliable equipment offers robust performance for your industrial needs.
Specifications
| X | 98.43" | 2,500.1 mm |
|---|---|---|
| Y | 118.11" | 3,000 mm |
| Z | 49.21" | 1,249.9 mm |
| Power | 80.4 hp | 59.9 kW |
| RPM | 22,000 RPM | 22,000 RPM |
| # ATC | 50 | 50 |
| Taper | HSK 63A | HSK 63A |
| Table-W | 98.43" | 2,500.1 mm |
| Table-L | 127.95" | 3,249.9 mm |
| Control | CNC (Heidenhain iTNC 530) | CNC (Heidenhain iTNC 530) |
| Dimensions | 393.70 x 315.0 x 222.44 | 393.70 x 315.0 x 222.44 |
| Weight | 138891.50 | 138891.50 |
Equipped With
Machine Specifications
First Commissioning: 2013

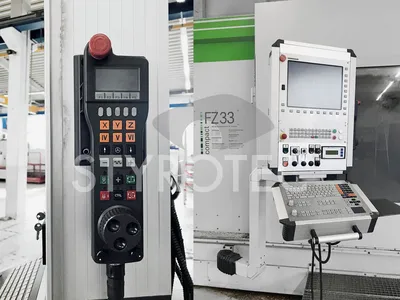

Control System: Heidenhain iTNC 530 including Handwheel HR 520
Machine Hours
Machine Powered On: approx. 40,700 h
Spindle Hours: approx. 17,100 h
Current Milling Spindle Hours: approx. 150 h
Working Area
X-axis: approx. 2,500 mm
Y-axis: approx. 3,000 mm
Z-axis: approx. 1,250 mm
A-axis: ± 110°
C-axis: ± 300°

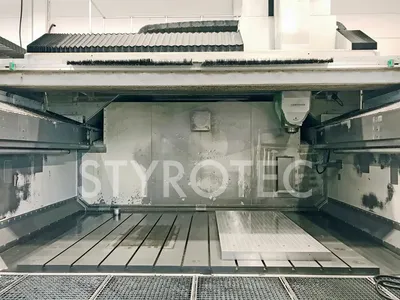

Clamping Table
Clamping Surface: approx. 2,500 x 3,250 x 400 mm

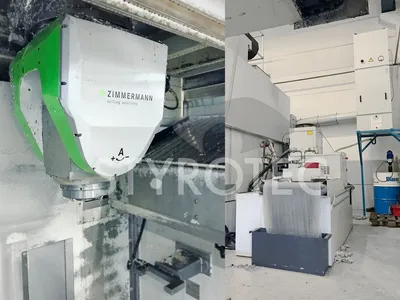

2-Axis Milling Head VH30
Spindle Power: 60 kW
Spindle Speed: max. 22,000 min$\text{^-1}$
Torque: 95 Nm
Tool Holder: HSK 63A
Tool Clamping: Hydraulic
Coolant Supply: External and Internal
Linear Axis Drives (Default Values)
Feed Rate X/Y/Z-axis: up to 60 m/min
Axis Acceleration X/Y/Z-axis: up to 5 m/s²
Please note: The machine is currently set to the following reduced basic values due to insufficient power supply at its previous location:
Feed Rate X/Y-axis: up to 40 m/min
Feed Rate Z-axis: up to 30 m/min
Axis Acceleration X/Y/Z-axis: up to 2.5 m/s²
The machine can be reset to its original values at any time, provided sufficient power supply is available.
Connection Data (Original / Reduced)
Connected Load: 190 kVa / 130 kVa
Pre-fuse: approx. 315 A / approx. 250 A
Dimensions, Weights
Machine Footprint with Peripherals: approx. 10,000 x 8,000 x 5,650 mm
Total Weight: approx. 63,000 kg
Color
Enclosure, Gantry, Control Cabinet: RAL 7035 light grey
Milling Head and Applications: RAL 6038 luminous green
Description
Additional Equipment
Coolant supply with belt filter system
50-station chain tool changer
Work area cover
Chip conveyor
LTA emulsion mist extraction system
Optional (at extra cost)
Renishaw RMP60 wireless measuring probe
BLUM Control NT
Machine Condition
Fully functional, very good condition. Already disassembled and stored.
