USED 2002 ZIMMERMANN FZ 35
Overview
Description

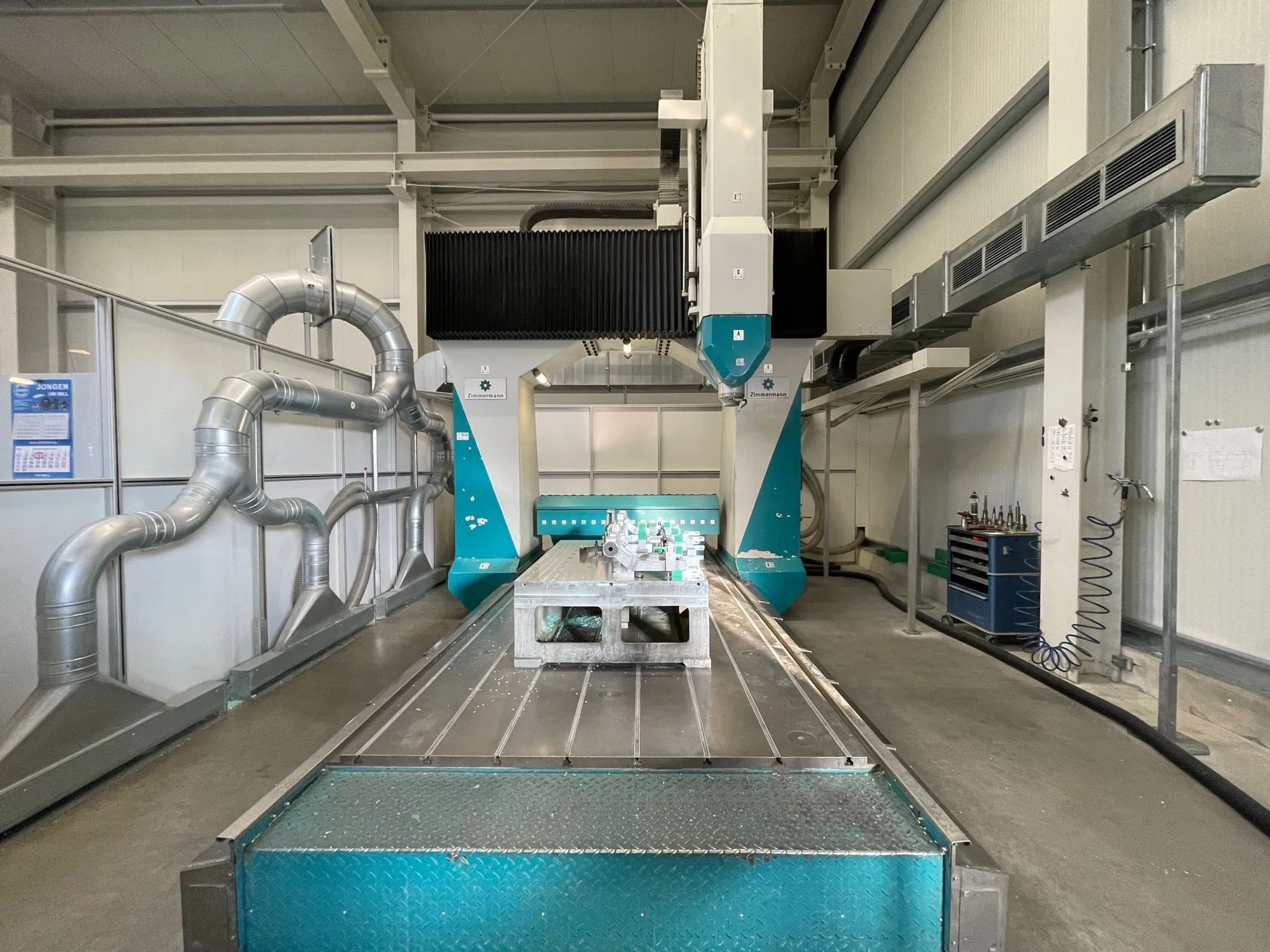

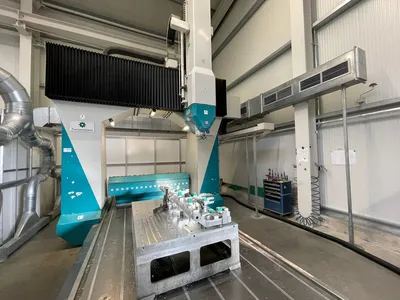

ZIMMERMANN FZ 35 Gantry Machining Center, 2002 model, in used condition. Ideal for bridge and double column tasks. Enhance your machining capabilities with this reliable equipment.
Specifications
| X | 157.48" | 4,000 mm |
|---|---|---|
| Y | 92.91" | 2,359.9 mm |
| Z | 59.05" | 1,499.9 mm |
| Power | 26.8 hp | 20 kW |
| RPM | 18,000 RPM | 18,000 RPM |
| Taper | HSK 63A | HSK 63A |
| Table-W | 196.85" | 5,000 mm |
| Table-L | 78.74" | 2,000 mm |
| Control | CNC (Fidia C20 XPower) | CNC (Fidia C20 XPower) |
| Dimensions | 6500 x 4500 x 4100 mm | 6500 x 4500 x 4100 mm |
| Weight | 17000 kg | 17000 kg |
Working Area
X-axis: approx. 4,000 mm
Y-axis: approx. 2,360 mm
Z-axis: approx. 1,500 mm
A-axis: +95° / -125°
C-axis: ±275°
Technical Data
First Commissioning: 2002

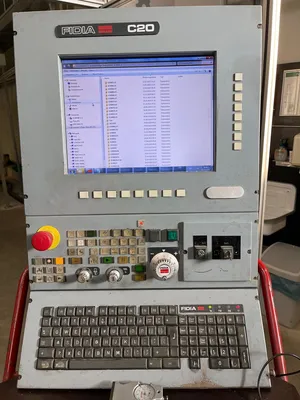

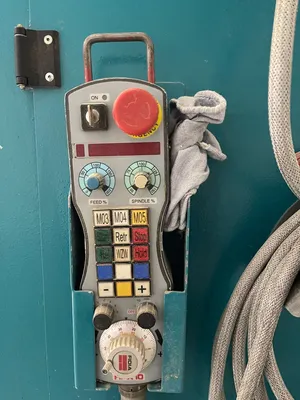

Control System: Fidia C20 XPower, including mobile control panel and HPX20 handheld unit
Clamping Table
Clamping Surface: approx. 5,000 x 2,000 x 400 mm

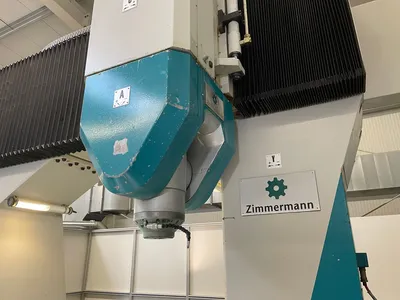

2-Axis Milling Head
Spindle Power: 20 kW
Spindle Speed: max. 18,000 min-1
Tool Holder: HSK 63A
Tool Clamping: Hydraulic
Linear Axis Drives
Feed Rate X, Y, Z-axis: 20 m/min
Axis Acceleration X, Y, Z-axis: 1.5 m/s²
Connection Data
Connected Load: 30 kVA
Pre-fuse: 63 A
Dimensions, Weights, Machine Footprint
Dimensions: approx. 6,500 x 4,500 x 4,100 mm
Total Weight: approx. 17,000 kg
