USED 1998 BORNEMANN 4030
Description

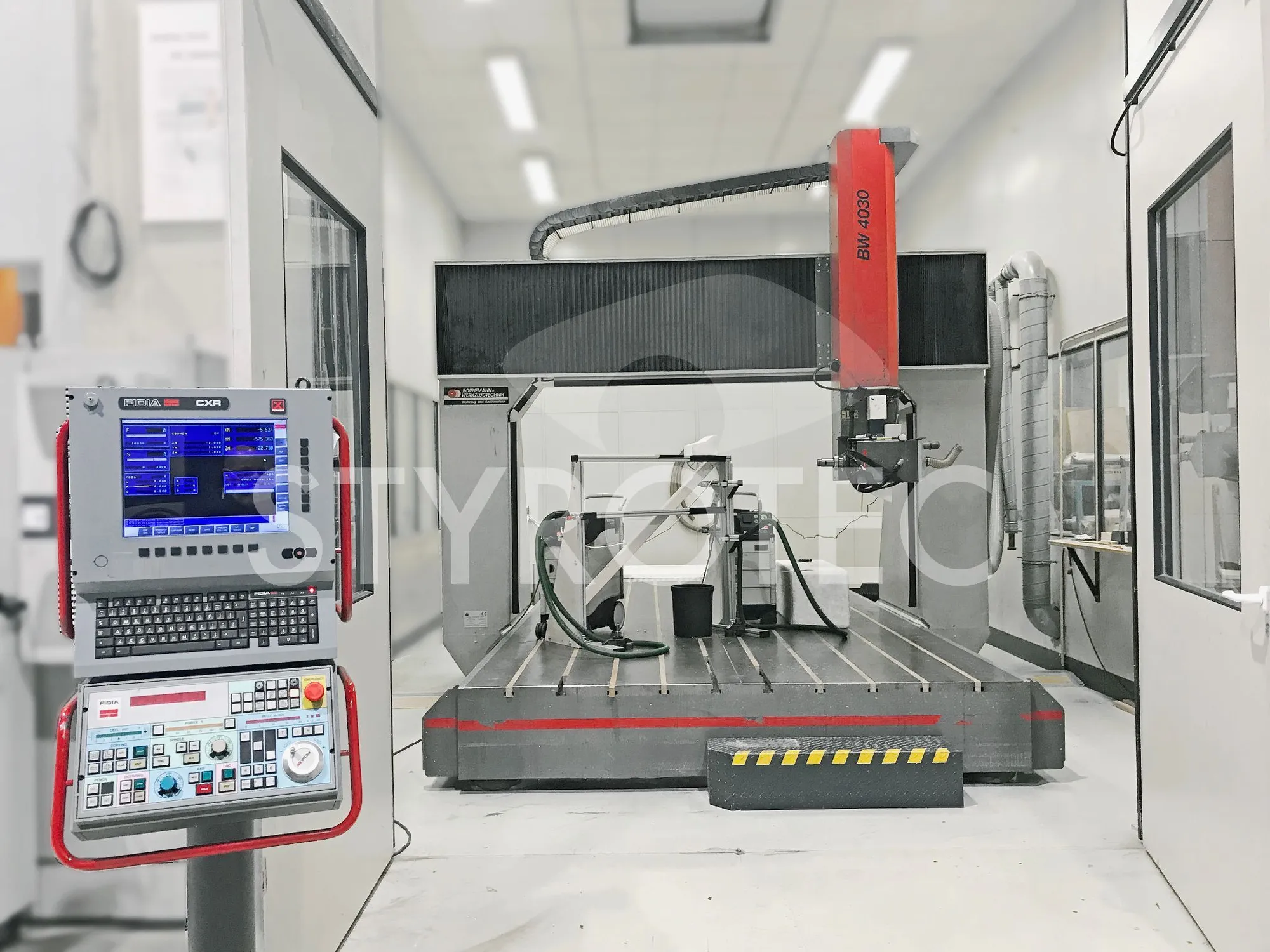

BORNEMANN 4030 Gantry Machining Center, double column type, in used condition. Ideal for heavy-duty machining tasks. High-quality engineering from a trusted manufacturer.
Specifications
| X | 196.85" | 5,000 mm |
|---|---|---|
| Y | 98.42" | 2,499.9 mm |
| Z | 49.21" | 1,249.9 mm |
| Power | 10 kW | 13.4 hp |
| RPM | 24,000 RPM | 24,000 RPM |
| Taper | HSK 63F | HSK 63F |
| Table-W | 107.87" | 2,739.9 mm |
| Table-L | 220.47" | 5,599.9 mm |
| Control | CNC (Fidia CXR) | CNC (Fidia CXR) |
| Dimensions | 8.000 x 5.000 x 4.500 mm | 8.000 x 5.000 x 4.500 mm |
| Weight | 25.000 kg | 25.000 kg |

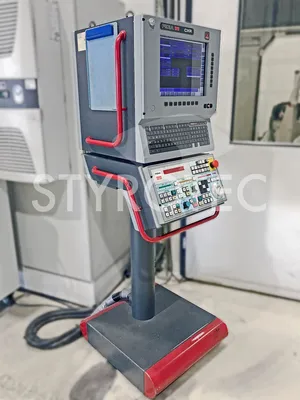

Control System
Fidia CXR with Handwheel (new in 2017!)
Working Area
X-axis: approx. 5,000 mm
Y-axis: approx. 2,500 mm
Z-axis: approx. 1,250 mm

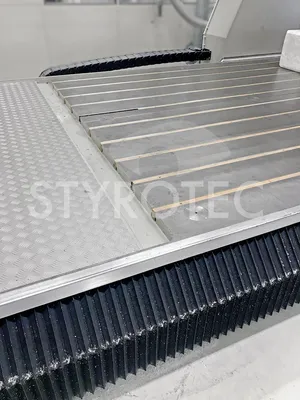

Clamping Table
Length x Width x Height: approx. 5,600 x 2,740 x 520 mm (Cast Iron)
Table Load: max. 15,000 kg
T-slots and Spacing: 10 x 22H8 / 255 mm
Milling Spindle (new!)
Type: HSD ES951
Tool Holder: HSK63F
Cooling: Air
Clamping: Pneumatic
Max Speed: 24,000 rpm
Power: 10 kW
Torque: 8.7 (S1) and 10.5 (S6)
Suitable Materials: Wood, Plastic, Aluminum
Linear Axis Drives
Feed Rate X, Y, Z-axis: up to 20 m/min
Axis Acceleration X, Y, Z-axis: up to 1.5 m/s²

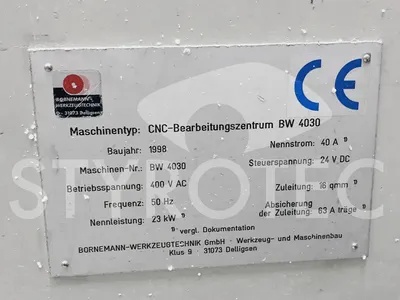

Connection Data
Connected Load: approx. 28 kW
Pre-fuse: 63 A
Dimensions, Weights
Machine Footprint: approx. 8,000 x 5,000 x 4,500 mm
Total Weight: 25,000 kg
Machine Condition
Fully functional condition, regularly maintained by the machine manufacturer.
The machine is no longer powered and DOES NOT have an enclosure anymore!
Immediately available!
