USED 2014 ZIMMERMANN FZ 33 COMPACT
Overview
Description

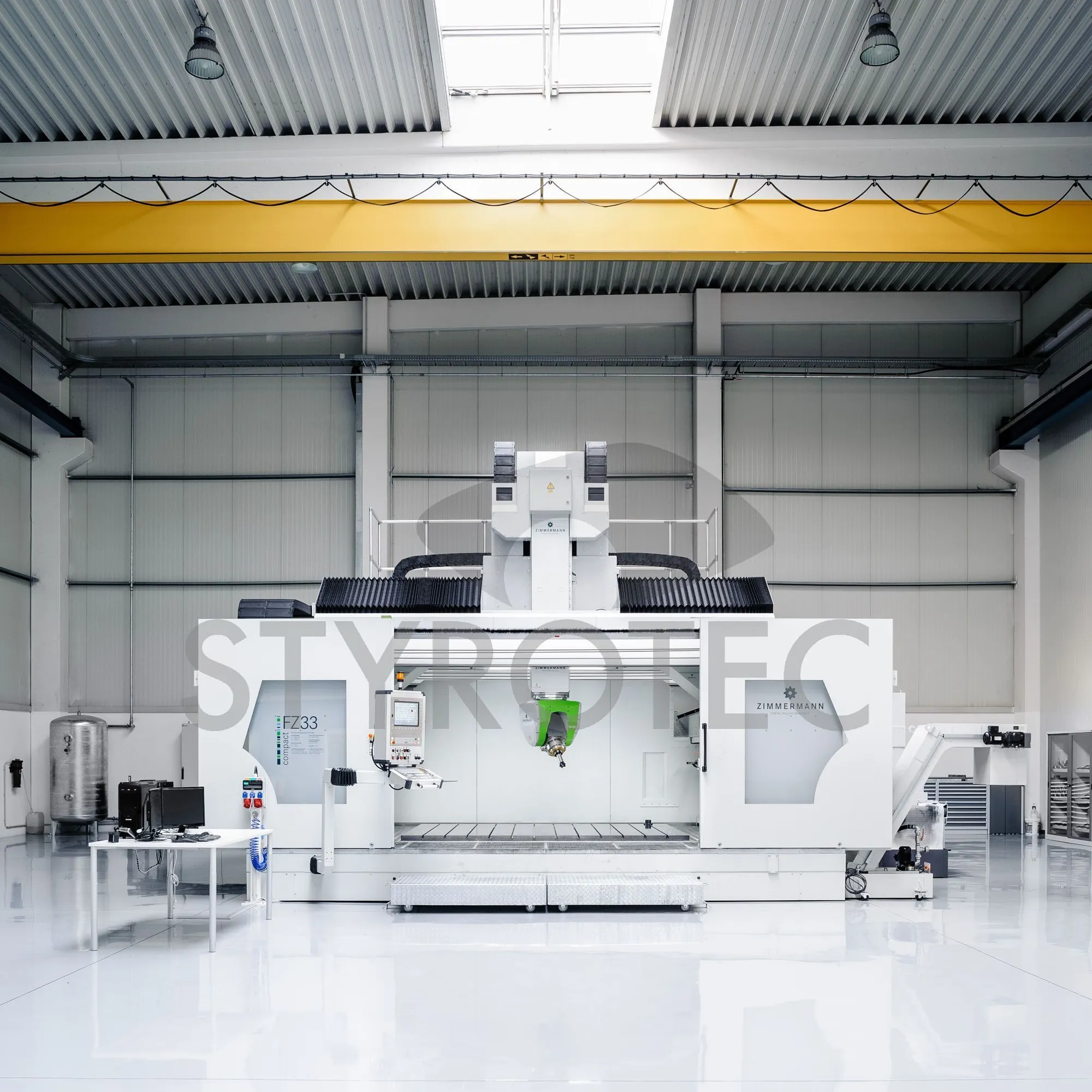

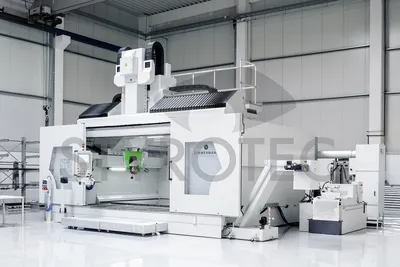

ZIMMERMANN FZ 33 COMPACT, 2014 model, used gantry machining center. Includes bridge & double column features. Ideal for precision machining. A reliable addition to your manufacturing equipment. Contact for more details about this quality machine.
Specifications
| X | 128" | 3,251.2 mm |
|---|---|---|
| Y | 98.43" | 2,500.1 mm |
| Z | 23.62" | 599.95 mm |
| Power | 60 kW | 80.5 hp |
| RPM | 22,000 RPM | 22,000 RPM |
| # ATC | 50 | 50 |
| Taper | HSK 63A | HSK 63A |
| Table-W | 128" | 3,251.2 mm |
| Table-L | 98.43" | 2,500.1 mm |
| Control | CNC (Heidenhain iTNC 530) | CNC (Heidenhain iTNC 530) |
| Dimensions | 394 x 315 x 222 in | 394 x 315 x 222 in |
| Weight | 138891.35 | 138891.35 |
First Commissioning: 2014
Control System: Heidenhain iTNC 530 HSCI including Handwheel HR 520
Machine Hours
Machine Powered On: approx. 90,000 h
Spindle Hours: approx. 38,000 h
Current Milling Spindle Hours: approx. 900 h
Clamping Table
Clamping Surface: approx. 2,500 x 3,250 x 600 mm
2-Axis Milling Head VH30
Spindle Power: 60 kW
Spindle Speed: max. 22,000 min-1
Torque: 95 Nm
Tool Holder: HSK 63A
Tool Clamping: Hydraulic
Coolant Supply: External and Internal
Linear Axis Drives
Feed Rate X/Y/Z-axis: up to 60 m/min
Axis Acceleration X/Y/Z-axis: up to 5 m/s²
Connection Data
Connected Load: 190 kVa
Pre-fuse: approx. 315 A
Dimensions, Weights
Machine Footprint with Peripherals: approx. 10,000 x 8,000 x 5,650 mm
Total Weight: approx. 63,000 kg
Color
Housing, Gantry, Control Cabinet: RAL 7035 light grey
Milling Head and Applications: RAL 6038 luminous green
Additional Equipment

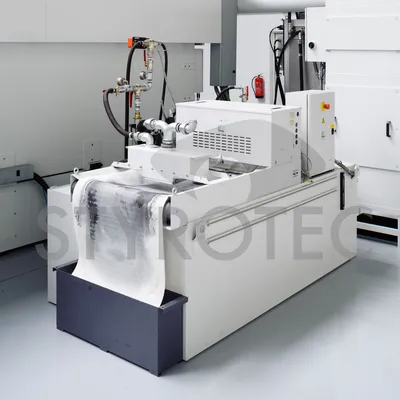

Coolant supply with belt filter system
50-station chain tool changer
Work area cover
Chip conveyor

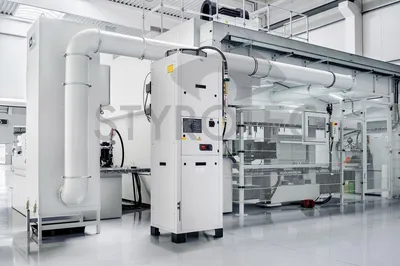

LTA emulsion mist extraction system
Optional (at extra cost):
Renishaw RMP60 radio measuring probe
BLUM Control NT
Machine Condition
Fully functional, very good condition, and still under power for inspection!
