USED 2012 ZIMMERMANN FZ 33
Overview
Description
ZIMMERMANN FZ 33 Gantry Machining Center, 2012 model, available in used condition. Suitable for heavy-duty machining projects, offering precise performance in a robust design. Ideal for bridge and double-column tasks in a professional setting.
Specifications
| X | 5,000 mm | 196.85" |
|---|---|---|
| Y | 3,000 mm | 118.11" |
| Z | 1,500 mm | 59.055" |
| Power | 45 hp | 33.6 kW |
| RPM | 25,000 RPM | 25,000 RPM |
| # ATC | 30 | 30 |
| Taper | HSK 63A | HSK 63A |
| Table-W | 3,000 mm | 118.11" |
| Table-L | 5,700 mm | 224.41" |
| Control | CNC (Heidenhain iTNC 530) | CNC (Heidenhain iTNC 530) |
| Dimensions | 10.000 x 7.700 x 5.850 mm | 10.000 x 7.700 x 5.850 mm |
| Weight | 63000 kg | 63000 kg |

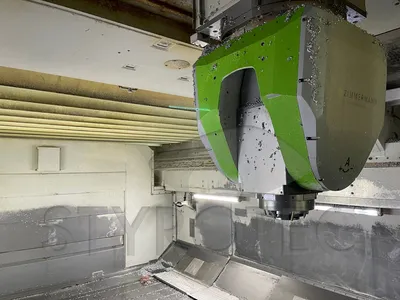

VH20 Milling Head
Spindle Power: 40 kW
Spindle Speed: max. 25,000 rpm
Torque: 48 Nm
Tool Holder: HSK 63A
Tool Clamping: Hydraulic
Coolant Supply: External and Internal
Blow Air: External
Control System

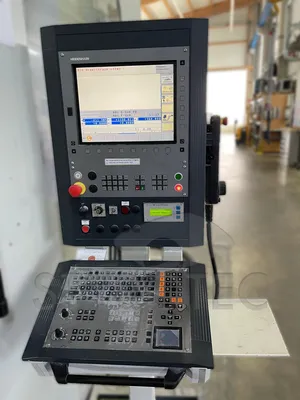

Control: Heidenhain iTNC 530 including Handwheel HR 420
Linear Axis Drives
Feed Rate X-, Y-axis: up to 50 m/min
Feed Rate Z-axis: up to 30 m/min
Axis Acceleration X-, Y-, Z-axis: up to 2.5 m/s$^2$

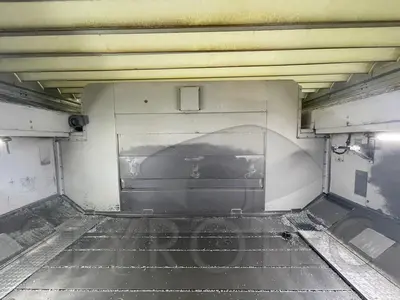

Clamping Table
Clamping Surface: approx. 5,700 x 3,000 x 300 mm
Connection Data
Connected Load: 190 kVA
Pre-fuse: approx. 315 A
Dimensions, Weights
Machine Footprint with Peripherals: approx. 10,000 x 7,700 x 5,850 mm
Total Weight: approx. 63,000 kg
Optional Equipment
Coolant supply with belt filter system
30-station chain tool changer
Work area cover
Chip conveyor, right side
