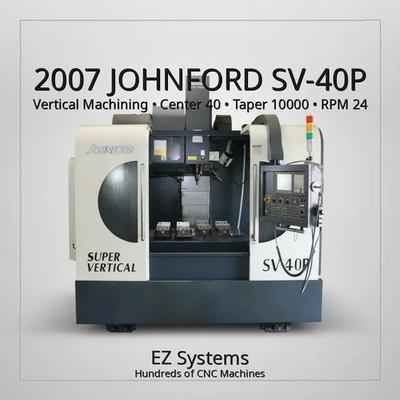

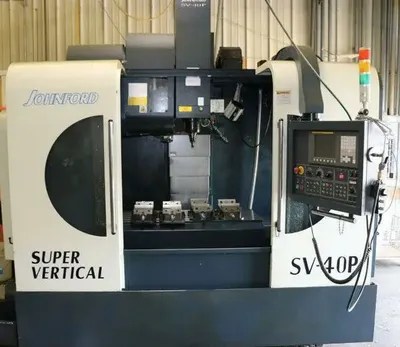

USED 2007 JOHNFORD SV-40P

2007 JOHNFORD SV-40P Vertical Machining Center with 41" X-Travel, 10000 RPM Spindle, 24-Position ATC, and Fanuc 0i CNC Control FOB

Specifications
X-Axis Travel: 41"
Y-Axis Travel: 20"
Z-Axis Travel: 24"
Rapid Rate X Axis: 1,181 IPM
Rapid Rate Y Axis: 1,181 IPM
Rapid Rate Z Axis: 787 IPM
Table Size: 19.7" x 47.2"
Max Table Load: 880 LBS
Spindle Motor: 14.75 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40
Tool Changer: 24 Position Side Mount
Control: Fanuc 0i CNC Control
Number of Axes: 3
Dimensions: 115" x 126" x 106.2"
Weight: 13,200 LBS

Description
Discover the robust capabilities of the 2007 JOHNFORD SV-40P Vertical Machining Center. This 3-axis CNC VMC is engineered for precision and efficiency, featuring a 40 taper spindle capable of 10,000 RPM and a reliable Fanuc 0i CNC Control. Its generous work envelope, with X, Y, and Z travels of 41", 20", and 24" respectively, makes it suitable for a wide range of machining tasks. The machine is further enhanced by a 24-position side mount tool changer, ensuring quick and seamless tool changes to maximize productivity.

Key Features & Benefits
Key features include rapid traverse rates of 1,181 IPM on the X and Y axes and 787 IPM on the Z axis, facilitating faster part processing. The substantial 19.7" x 47.2" table can accommodate a maximum load of 880 LBS, supporting diverse workpiece sizes. Driven by a powerful 14.75 HP spindle motor, this machining center delivers consistent performance for demanding applications.

Dimensions & Weight
Physical Footprint: 115" x 126" x 106.2"
Weight: Approximately 13,200 lbs

Shipping & Location Details
This machine is offered FOB . Buyer is responsible for all applicable freight and rigging expenses.
