USED 1987 SERTOM PP HD 250

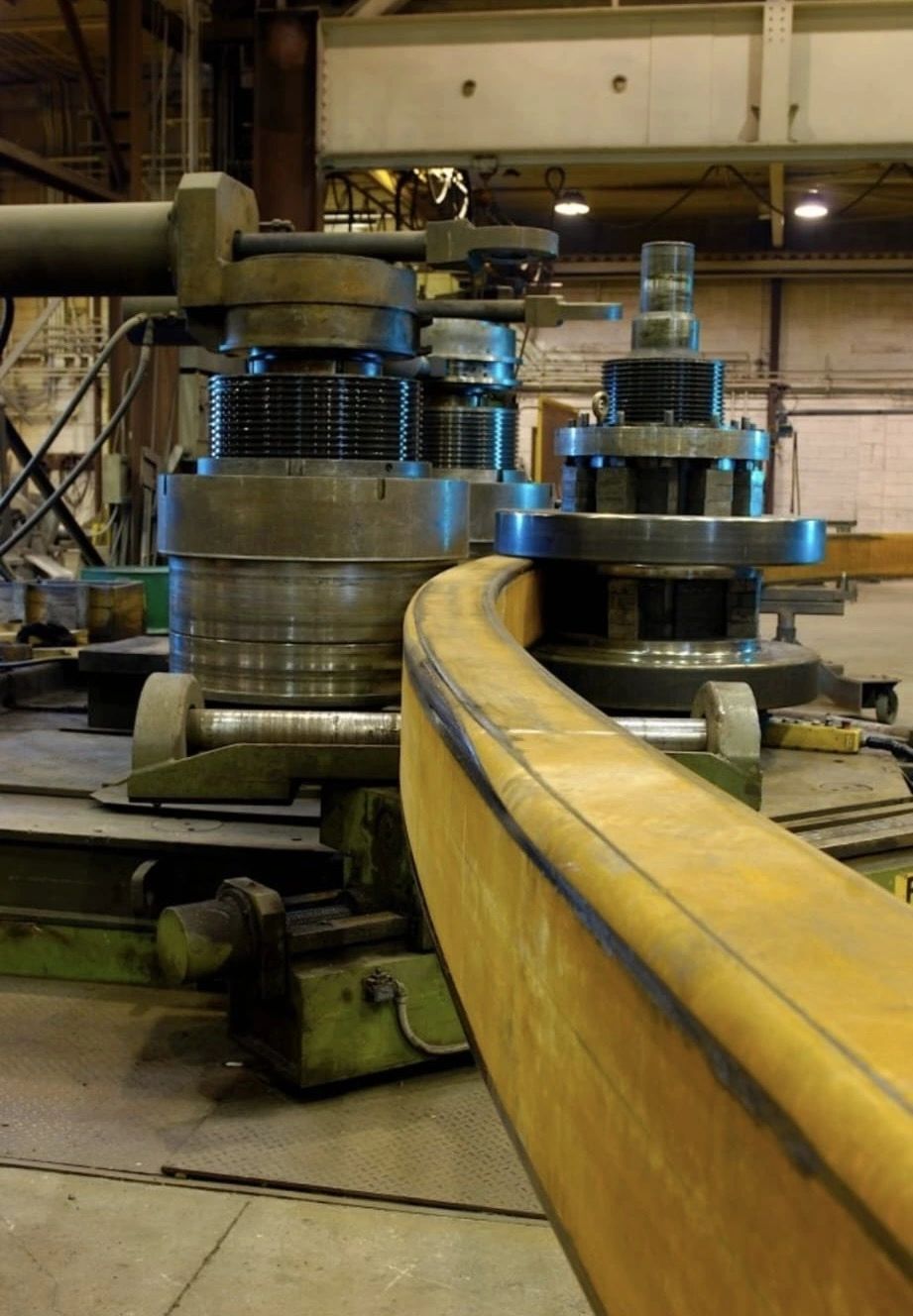

Sertom PP HD 250 Heavy-Duty Hydraulic Section Profile Angle Bending Roll (1987)

• Angle Iron (Leg In / Out): Up to approx. 8" x 8" x 3/4" (200 x 200 x 20 mm)
• Flat Bar (Easy Way / Hard Way): Up to 10" x 2" (250 x 50 mm) or equivalent section modulus
• I-Beam / H-Beam (Hard Way): Capable of bending structural beams (such as HEB/HEA types) up to approx. 240–300 mm profiles with specific structural traction attachments.
• Pipe / Tube Bending: Up to approx. 8"–10" Schedule 40/80 pipe with custom-radius modular tooling.

Component Manufacturing Standard Specs

Sertom builds custom non-mass-produced units engineered with high-tier components to simplify universal field replacement:
• Hydraulic Valves: Exclusively built with Bosch-Rexroth valves.
• Bearings: Heavy-duty double conical roller bearings from SKF or FAG.
• Seal Configuration: Calibrated Busak-Shamban / Trelleborg high-pressure gaskets rated for up to 700 bar.
• Piping Layout: Solid rigid steel hydraulic lines throughout (no pressure-expanding rubber hoses) to eliminate precision loss during high-tonnage load operations.

Sertom PP HD 250 Angle Bending Roll

The Sertom PP HD 250 (often classified under Sertom PB’s PP-VG series) is a heavy-duty, hydraulic variable-geometry profile and angle bending roll designed to handle complex structural steel sections, heavy pipe, and large profiles.
The defining architecture of the "PP" variable-geometry series is its three-roller motorized setup where the upper roll moves vertically (translates) and the lower rolls adjust horizontally and independently. This variable pitch configuration functions as either a pyramidal or asymmetrical machine, maximizing pre-bending capabilities while minimizing the unbent straight sections at the profile ends.

Core Mechanical Design & Features

• Variable Geometry Setup: By increasing or decreasing the center distance between the lower rolls, the machine can adapt perfectly to roll thick-walled profiles or execute tight-radius bends on thinner materials.
• All-Roll Drive: All three rolls are fully motorized, which prevents material slippage when processing heavy beams, channel sections, or smooth pipes.
• Independent Pre-Bending: The independent hydraulic horizontal adjustment of the lower rollers allows for high-precision pre-bending on both the leading and trailing edges of the profile.
• Anti-Twist Mechanics: Equipped with multi-directional (axial, radial, and angular) hydraulic guide rolls. These structural lateral guide systems are essential for counter-acting the natural twisting effect that occurs when bending asymmetric profiles like angle iron or leg-in channels.

Common Industrial Applications

The PP HD 250 series is heavily utilized across heavy industrial sectors due to its capacity to roll structural shapes:
• Heavy Structural Fabrication: Rolling structural steel sections like H-beams (HEA/HEB), standard I-beams, and large channel sections.
• Shipbuilding & Energy: Curving massive framework panels, heavy-duty support rings, wind tower components, and thick-walled pipes.
• Industrial Modular tooling: Frequently equipped with specialized accessory components like specific pipe rollers, structural traction systems, and compression pressure rollers to handle specialized, non-standard geometry.
If you are evaluating this machine for a specific project or facility acquisition, could you tell me:
• The exact profile types and dimensions you need to roll (e.g., specific H-beam sizes, angle iron dimensions)?
• The minimum bending radius your materials require?
• Whether you are sourcing a new unit or looking for used equipment specs/pricing?
Knowing these details will help me provide tailored capacity charts or structural comparisons.
AI can make mistakes, so double-check responses
Try without personalization
•
Sertom PB
PP-VG angle roll | Hydraulic angle roll machine | Sertom PB
hydraulic traction system for HEA/HEB beams with rollers, hydraulic compression system with pressure rollers, pressure rollers.

Sertom PP HD 250 Angle Bending Roll specifications

The technical specifications for the Sertom PP HD 250 (classified under Sertom PB's PP-VG Series) outline a heavy-duty, industrial-grade engineering machine.
The "250" naming convention typically defines a 250 mm main shaft diameter, positioning this variable-geometry machine above standard fabrication line-ups for handling massive structural elements like heavy structural beams (HEA/HEB), massive channels, and large-diameter solid bars.

Mechanical & Structural Specifications

• Shaft Diameter: 250 mm (Forged from high-strength tempered and ground solid steel)
• Roll Configuration: 3-roll double-pinch style with independent variable-geometry layout.
• Drive System: 3 motorized rolls utilizing independent high-torque hydraulic motors coupled directly to planetary gearboxes.
• Guide Rollers: Multi-directional 3-axis hydraulic lateral correction guides (axial, radial, angular adjustments).
