Metal Cutting Bandsaws for Fabricators

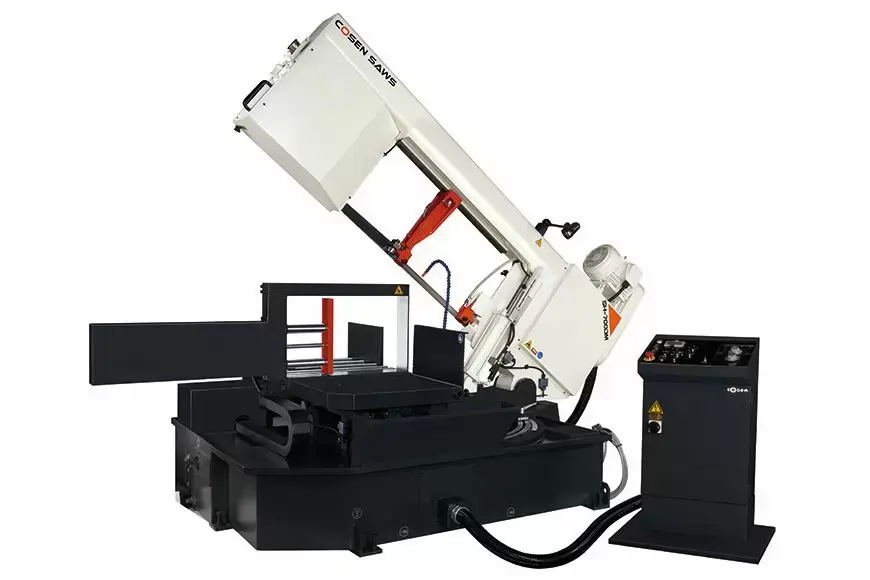

Heavy-duty band saw for fabrication production has a cutting-edge efficiency and durability. Cosen provides a full range of semi-automatic band saws in a wide variety of cutting capacities. These saws exceed many of the standard requirements that operators look for in a band saw machine. With its rigid construction and superior features, Cosen's bandsaw machine SH-700DM fits into that category. This heavy-duty band saw offers precision, efficiency in operation, lower cost per cut, and durability in a demanding production environment.
Standard Features
• Swivel saw head allows miter cutting from 0 degrees to +60 and -45 degrees.
• Hydraulic cylinder plus precision ground hinge support.
• Hardened worm gear for durability.
• Inverter blade drive system which allows infinitely variable blade speeds.
• Adjustable flood coolant system.
• Motor driven, synchronized wire blade brush.
• Carbide blade guides and bearing provides additional blade support.
• Rigid cast-iron guide arms.
• Cast-iron hydraulic vise.
• Dual valve feed pressure and feed rate system for optimal cutting performance.
• Automatic hydraulic blade tensioning device.
| Rect-Cap (H) | 17.7" | 449.58 mm |
| Rect-Cap (W) | 27.5" | 698.5 mm |
| Rounds-Cap | 17.7" | 449.58 mm |
| Power | 7.5 hp | 5.6 kW |
| Type (Auto, Manual, Semi) | Semi | Semi |
| Blade Width | 1.6" | 40.64 mm |
| Blade Thickness | 0.05" | 1.27 mm |
| Blade Length | 228" | 5,791.2 mm |
| Weight | 5,093 lb | 5,093 lb |
Type Of Saw
Horizontal
Automation
Semi-Automatic
Miter
Double Miter
Production Line
Horizontal-Mitering
Horizontal-Pivot
Capacity-Max. Height (Mm)
≦450
Capacity-Max. Width/Throat (Mm)
≦700
Capacity-Round (Mm)
420
Top Clamp-Min.~Max. Height (Mm)
≦450
Blade / Circular Saw Width (Mm)
41
Blade Speed Min.~Max. (M/Min)
23~123
Angle Of Swivel Min.~Max. (ﾟ)
0~60
