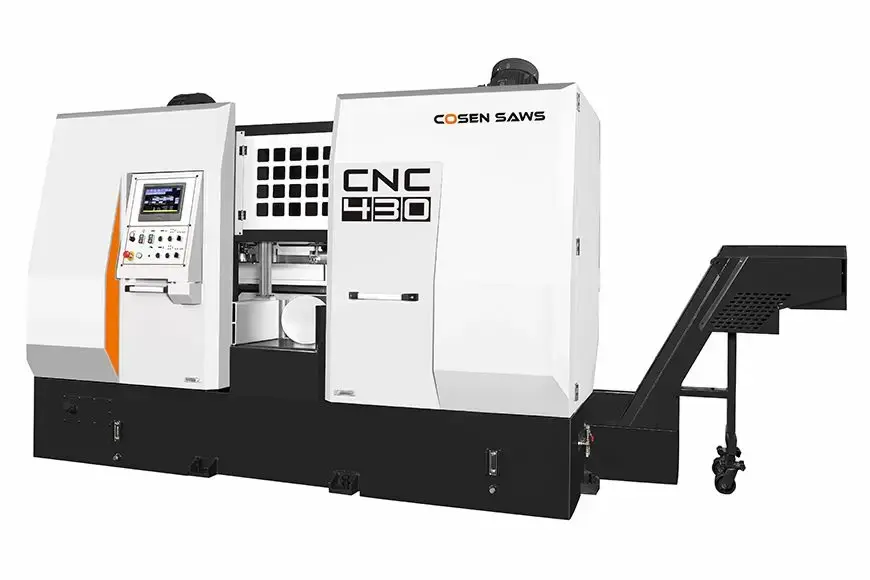

NEW COSEN CNC-430

Bandsaw machine with world class design and technology to cut faster and smarter

Intelligent CNC Performance Programmable Automatic Bandsaw CNC-430 is specially designed for cutting special hard materials with tungsten steel band. Hard materials like Inconel, Titanium, and Stainless Steel are expensive to cut due to extensive time consumption, tool costs, and demand of an experienced operator. With Cosen Intelligent CNC Performance Programmable Automatic Bandsaw, you are in full control by cutting hard material faster, extending blade life, and eliminating guesswork or operator error.

The Intelligent CNC Performance Programmable Automatic Bandsaw allows you to manage blades, work orders from the office, and cut with recommended rates and storing favorite parameters.

Standard Features

• High strength high rigidity saw frame.
• High precision linear guide way design (ball screw) on both saw frame and shuttle vise travels.
• Direct drive motor and bevel gearbox.
• Inverter blade drive system incorporating infinitely variable blade speeds.
• Robust cast-iron guide arms.
• Dual vibration dampener.
• Dual powered chip brushes.
• Ball screw driven shuttle vise.
• Full stroke cast-iron hydraulic vise riding on linear rails.
• Split front vise for reduced burr.
• Adjustable control panel.
• Mitsubishi PLC controller and 10" Color Touch Screen.
• Cosen Advanced Touch Screen Control with program storage via USB, material library and blade management.
• Separately programmable cutting rates for blade entry and after penetration.
• Automatic First Cut & Last Cut.

Type Of Saw
Horizontal

Automation
Automatic

Miter
NO

Automation Type
CNC

Production Line
Horizontal-Column

Capacity-Max. Height (Mm)
≦430

Capacity-Max. Width/Throat (Mm)
≦430

Capacity-Round (Mm)
430

Blade / Circular Saw Width (Mm)
54

Blade Speed Min.~Max. (M/Min)
12~150
