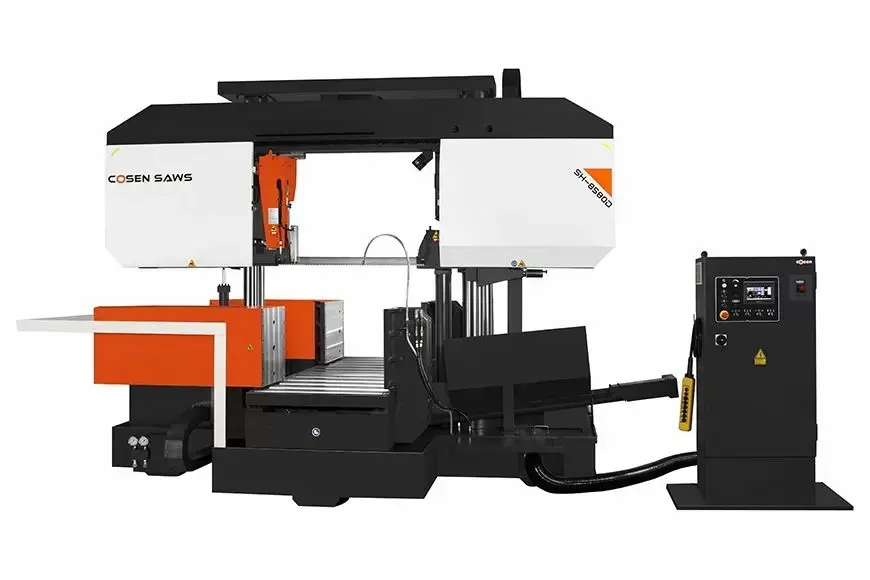

NEW COSEN SH-8580D

Cosen provides a semi-automatic double column heavy duty band saw in a wide variety of cutting capacities. These saws exceed many of the standard requirements that operators look for in a band saw machine. With its rigid construction and superior features, Cosen's SH-8580D fits into that category. This heavy duty band saw offers precision, efficiency in operation, lower cost per cut, and durability in a demanding production environment.

Standard Features

Hydraulic dual column design.
Gearbox designed to accept high lateral pressure (no thermal distortion).
Inverter blade drive system which allows infinitely variable blade speeds.
Adjustable flood coolant system.
Motor driven, synchronized wire blade brush.
Carbide blade guides and bearings provides additional blade support.
Hydraulically actuated cast-iron guide arms.
Cast-iron hydraulic front and rear vises.
Split vise jaw for reduced burr.
Automatic hydraulic blade tensioning device.
Dual valve feed pressure and feed rate system for optimal cutting performance.

Standard Features
• Hydraulic dual column design.
• Gearbox designed to accept high lateral pressure (no thermal distortion).
• Inverter blade drive system which allows infinitely variable blade speeds.
• Adjustable flood coolant system.
• Motor driven, synchronized wire blade brush.
• Carbide blade guides and bearings provides additional blade support.
• Hydraulically actuated cast-iron guide arms.
• Cast-iron hydraulic front and rear vises.
• Split vise jaw for reduced burr.
• Automatic hydraulic blade tensioning device.
• Dual valve feed pressure and feed rate system for optimal cutting performance.

Type Of Saw
Horizontal

Automation
Semi-Automatic

Miter
NO

Production Line
Horizontal-Column

Capacity-Max. Height (Mm)
≦800

Capacity-Max. Width/Throat (Mm)
≦850

Capacity-Round (Mm)
800

Blade / Circular Saw Width (Mm)
67

Blade Speed Min.~Max. (M/Min)
15~88
