New | Build-to-Order

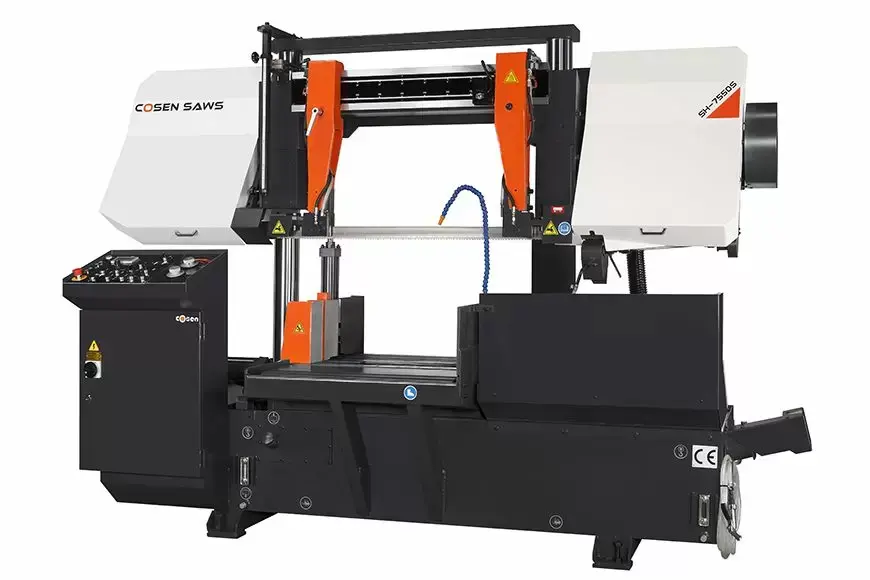

NEW COSEN SH-7550S

California, United States
754Listings|18Followers
Overview
Horizontal Band Saws

Cosen provides a semi-automatic band saw with double column in a wide variety of cutting capacities. These saws exceed many of the standard requirements that operators look for in a band saw machine. With its rigid construction and superior features, Cosen's SH-7550S fits into that category. This heavy duty band saw offers precision, efficiency in operation, lower cost per cut, and durability in a demanding production environment.

Standard Features
• Hydraulic dual column design.
• Gearbox designed to accept high lateral pressure (no thermal distortion).
• Inverter blade drive system which allows infinitely variable blade speeds.
• Adjustable flood coolant system.
• Motor driven, synchronized wire blade brush.
• Carbide blade guides and bearings provides additional blade support.
• Hydraulically actuated cast-iron guide arms.
• Cast-iron hydraulic front and rear vises.
• Split vise jaw for reduced burr.
• Automatic hydraulic blade tensioning device.
• Dual valve feed pressure and feed rate system for optimal cutting performance.

Specs
Rect-Cap (H)
20"
508 mm
Rect-Cap (W)
29.5"
749.3 mm
Rounds-Cap
20"
508 mm
Square-Cap
20"
508 mm
Power
7.5 hp
5.6 kW
Type (Auto, Manual, Semi)
Semi
Semi
Blade Width
2"
50.8 mm
Blade Thickness
0.063"
1.6002 mm
Blade Length
238"
6,045.2 mm
Weight
4,967 lb
4,967 lb

Type Of Saw
Horizontal

Automation
Semi-Automatic

Miter
NO

Production Line
Horizontal-Column

Capacity-Max. Height (Mm)
≦500

Capacity-Max. Width/Throat (Mm)
≦700

Capacity-Round (Mm)
500

Top Clamp-Min.~Max. Height (Mm)
130~235

Blade / Circular Saw Width (Mm)
54

Blade Speed Min.~Max. (M/Min)
15~85
