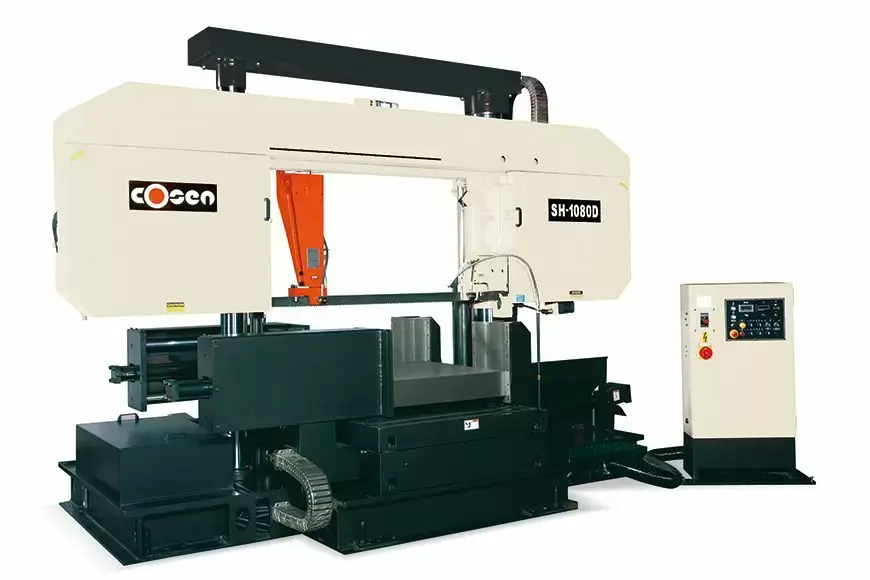

Cosen provides a semi-automatic heavy duty band saw in a wide variety of cutting capacities. These saws exceed many of the standard requirements that operators look for in a band saw machine. With its rigid construction and superior features, Cosen's SH-1080D fits into that category. This heavy duty band saw offers precision, efficiency in operation, lower cost per cut, and durability in a demanding production environment.
Standard Features
• Hydraulic dual column design.
• Gearbox designed to accept high lateral pressure (no thermal distortion).
• Inverter blade drive system which allows infinitely variable blade speeds.
• Adjustable flood coolant system.
• Motor driven, synchronized wire blade brush.
• Carbide blade guides and bearings provides additional blade support.
• Hydraulically actuated cast-iron guide arms.
• Cast-iron hydraulic front and rear vises.
• Split vise jaw for reduced burr.
• Automatic hydraulic blade tensioning device.
• Dual valve feed pressure and feed rate system for optimal cutting performance.
| Rect-Cap (H) | 31.5" | 800.1 mm |
| Rect-Cap (W) | 39.4" | 1,000.8 mm |
| Rounds-Cap | 31.5" | 800.1 mm |
| Square-Cap | 31.5" | 800.1 mm |
| Power | 15 hp | 11.2 kW |
| Type (Auto, Manual, Semi) | Semi | Semi |
| Blade Width | 2.6" | 66.04 mm |
| Blade Thickness | 0.06" | 1.524 mm |
| Blade Length | 346.5" | 8,801.1 mm |
| Weight | 13,252 lb | 13,252 lb |
Type Of Saw
Horizontal
Automation
Semi-Automatic
Miter
NO
Production Line
Horizontal-Column
Capacity-Max. Height (Mm)
≦800
Capacity-Max. Width/Throat (Mm)
≦1000
Capacity-Round (Mm)
800
Blade / Circular Saw Width (Mm)
67
Blade Speed Min.~Max. (M/Min)
15~88
