USED FEED LEASE PR-15M-42 AND FLCC-24-76-7

Coil Weight: 15000 pounds
Coil Width: 24 inches
Coil Thickness: .187 inches

Standard Specifications 15,000 lbs. Coil Weight24" Maximum Coil Width.187" x 24" Coil Thickness at Full Width.250" x .12" Maximum Coil ThicknessRight To Left Feed Direction72" Maximum Coil O.D.19-24" I.D. Range

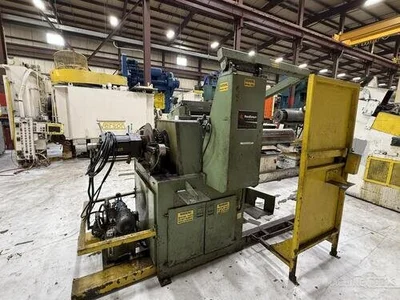

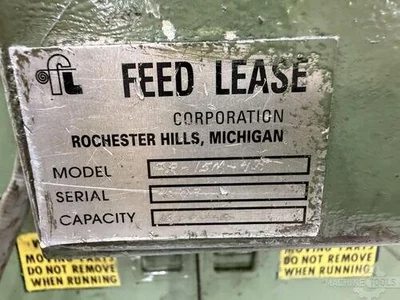

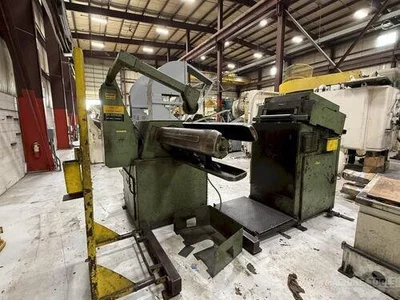

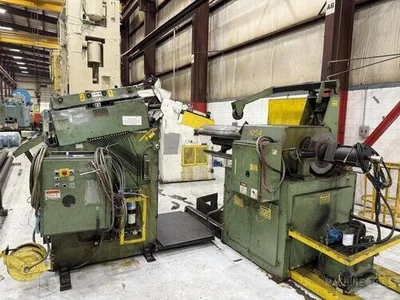

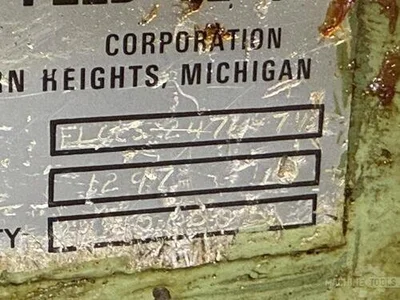

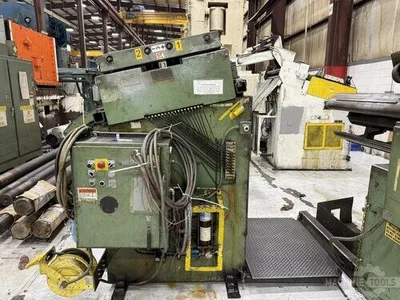

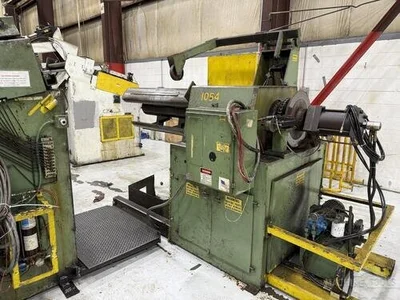

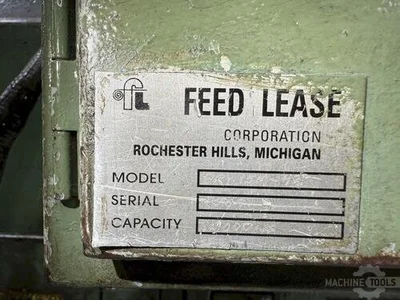

Feed Lease Coil Reel Model # PR-150M-42Serial Number - 4509Three Leaf Mandrel PadsHydraulic Thread DriveHydraulic Mandrel ExpansionHold-Down Arm with End WheelClock Spring Safety GuardAir Brake on Main SpindleHydraulic Unit and PumpFeed Lease Powered Coil Straightener # FLCCS-2476-7.5Serial Number 12977 Straightening Rolls Entry and Exit Pinch Rolls with Air Operated AdjustmentAdjustable Breaker RollsAutomatic Lubrication SystemInclined Straightening HeadAdjustable Stock Width Edge GuidesAuto / Run CycleLoop Control7.5 HP Main Drive MotorCan be seen under power in the S&G Press Warehouse.This Feed Lease 24" Wide Coil Reel and Straightener system is a robust solution for processing heavy-gauge coil materials. The Feed Lease Corporation PR-150M-42 coil reel (42" Maximum Coil Width on the Reel), with a substantial 15,000 lbs. capacity, accommodates coils up to 24" wide and 72" in outer diameter, with an inner diameter range of 19-24". Its hydraulic thread drive, mandrel expansion, and hold-down arm ensure secure and efficient coil handling, complemented by a clock spring safety guard and air brake for operational safety.Paired with the Feed Lease FLCCS-2476-7.5 powered coil straightener, this system handles material up to .187" thick at full width, or .250" thick for narrower stock. The straightener features seven precision rolls, adjustable breaker rolls, and air-operated pinch rolls for optimal material flatness. An automatic lubrication system and adjustable edge guides enhance performance and longevity. Designed for right-to-left feeding, the unit offers auto/run cycle and loop control, driven by a 7.5 HP motor, providing reliable and automated coil processing.
