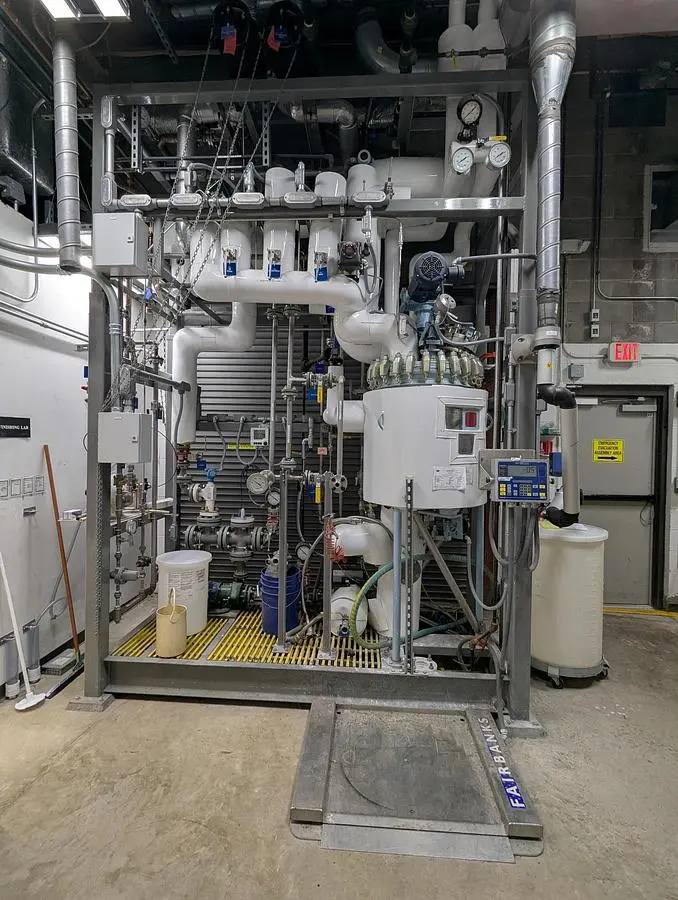

Pfaudler 50-gallon glass-lined reactor system, skid-mounted and includes condenser, Mokon temperature control unit, and integrated control panel. The vessel is internally rated for 150 PSI / Full Vacuum at 450°F and jacket rated for 125 PSI at 450°F, with a minimum design metal temperature of -20°F. Glass type 9115. Previously used in the production of silica particles, the unit is well suited for reaction processes requiring corrosion resistance and thermal control. System is still installed.
Stock Number: 5991534
Manufacturer: Pfaudler
Model: RT 24-50-16S-125 JOW
Year: 2016
Serial Number: 4196998
Gallons: 50
Materials of Construction: Glass-lined carbon steel
Pressure Rating (Internal): 150 PSI @ 450°F / -20ºF
Jacket Pressure: 125 PSI @ 450ºF / -20ºF

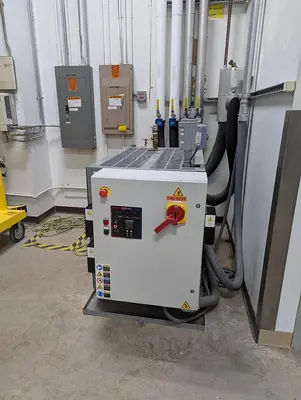

Controls: Electrical control panel included

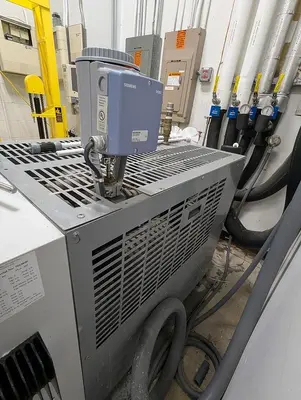

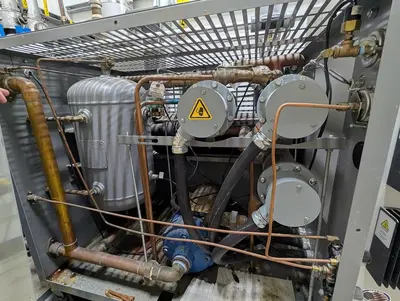

Additional Equipment: Overhead condenser, Mokon temperature control unit
Basis: As Is, Where Is
