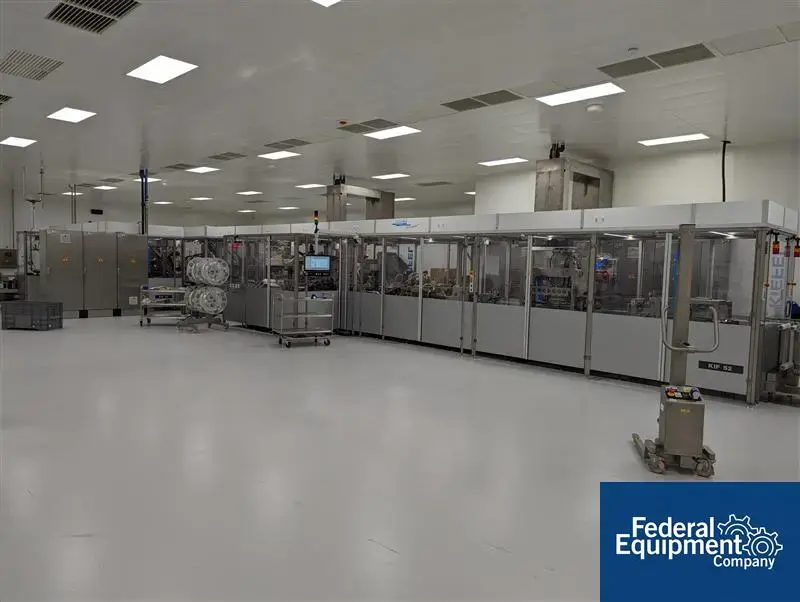

USED Kiefel Technologies Kiefel Technologies Bag Making Machine, Model KIF

Used Kiefel Technologies Bag Making Machine, Model KIF 52, Serial #416-030, for forming, filling, and sealing medical-grade bags and IV bags.  The KIF 52 machine is a 4-fold form-fill-seal system for manufacturing and filling infusion bags. The machine can manufacture and fill 100ml and 250ml bags.  General Performance and operational data:  UM1 Max. roll diameter – external: 600 mm Core diameter: 152.4 mm / 6" Max. film width: 400 mm Working rollers/reserve rollers: 2/0   AP1 Max. punch pressure: 0.24 kN Max. press stroke at top: 30 mm Max. press stroke at bottom: 30 mm Max. useful surface: 134 x 10 mm Weight: 100 kg. Compressed air connection: 6 bar Cooling water connection: G 3/8″   AP2 Max. punch pressure: 2.0 kN Max. press stroke at top: 60 mm Max. press stroke at bottom: 60 mm Max. useful surface: 440 x 100 mm Weight: 100 kg. Compressed air connection: 6 bar Cooling water connection: G 3/8″   AP3 Max. punch pressure: 2.0 kN Max. press stroke at top: 60 mm Max. press stroke at bottom: 60 mm Max. useful surface: 440 x 100 mm Weight: 100 kg. Compressed air connection: 6 bar Cooling water connection: G 3/8″   IM1 Feed: 490 mm Max. film width: 250 mm Compressed air connection: 6 bar   WT2 Max. force: 50 kN Max. stroke at top: 100 mm Max. stroke at bottom: 55 mm Max. useful surface: 490 x 320 mm Welding procedure: TC Compressed air connection: 5 bar Cooling water connection: G 3/8″   AC2 Max. force at top: 1.5 kN Max. force at bottom: 2.5 kN Max. stroke at top: 50 mm Max. stroke at bottom: 50 mm Max. useful surface: 480 x 240 mm Compressed air connection: 5 bar Cooling water connection: G 3/8″   SM1 Stripper: 4x set of products Stripping stroke of linear unit with servomotor Max.: 1050 mm Knee lever stroke pneumatic drive: 39 mm Hold-down clamp stroke pneumatic drive: 40 mm   TL1 Stripper: 4x set of products Transfer stroke of linear unit with servomotor: 890 mm Suction pick and place unit stroke of pneumatic drive: 50/50 mm double stroke Compressed air connection: 5 bar   TL2 Stroke of linear unit with servomotor: 700 mm Suction pick and place unit / swivel unit stroke of linear unit with servomotor: 100 mm / 90° Compressed air connection: 5 bar   AP7 Max. vertical servo stroke: 40 mm Max. horizontal PN stroke: 153 mm Max. adjustment: +/-6 mm Compressed air connection: 5 bar

Manuals: True
Stainless Steel Grades: 316L
Serial Number: 416-030
Year of Construction: 2022
