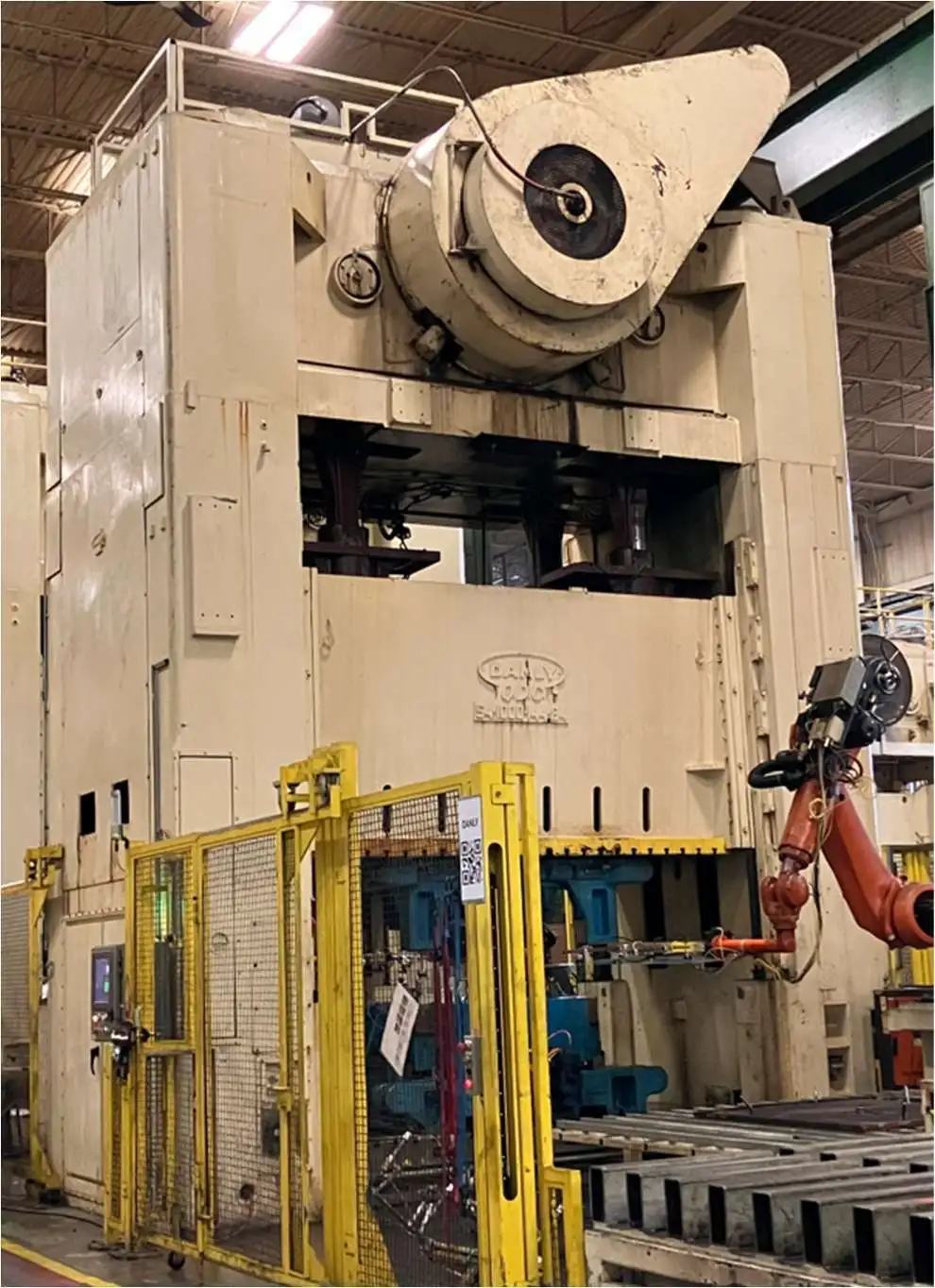

USED 1969 DANLY S4-1000-144-84

Danly S4-series 1000-ton straight-side press (4-post frame, single main slide). The Danly S4-1000-144-84 is a large straight-side (4-post) mechanical press. The model “S4” denotes a single-slide (single-action) configuration. Only the main ram moves (delivering 1000 tons), and there is no separate blankholder slide. Its drive is a dual-crank (double-eccentric) mechanical system, but functionally it is a single-action press (one moving slide). This makes it a classic 4-post single-action stamping press: a rigid straight-side frame with a single slide (single-action) used for high-tonnage pressing.

Manufacturer: Danly
Model Number: S4-1000-144-84
Built Year: 1969
Capacity / Tonnage: 1000T @ 1/2" ABDC
Slide Area (L-R x F-B): 144” x 84” (3657 x 2133 mm)
Slide Plate: 6” distant T-slotted
Stroke: 33” (838 mm)
Slide Adjustment: 30” (762 mm)
Shut Height over Bolster (SDAU): 72” (1828 mm)
Strokes per Minute (SPM): 18 to 22 (Dual Speed Clutch)
Main Motor Capacity: 200 HP @ 1200 RPM
Number of Cushions: 0 (original equipment had cushions, now removed)
Press Overall Size: 235” x 148” (5969 x 3759 mm), no side openings in columns
Press Width at Base Feet: 186” (4724 mm)
Press Overall Height: 40 ft (12,192 mm)
Height Above Floor: 30.5 ft (9296 mm)
Bolster Area (L-R x F-B): 144” x 84” (3657 x 2133 mm)
Number and Type of Bolster: (1) Uni-Directional Rolling Bolster, front-back movement
Bolster Thickness/Height: 17” (432 mm)
Top Plate: 6” distant T-slotted

Features:
Operator’s controls panel at the press column
Palm-button stand
Illuminated shut height indicator
Stroke indicator
Standard Press safety stop-buttons
Safety blocks
