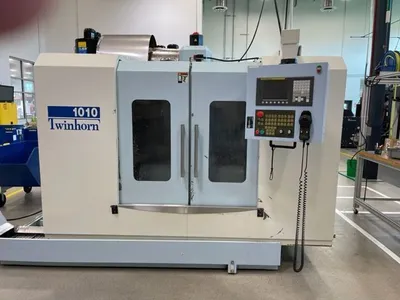

Fanuc 0i-MD, 40.20.20", 8000 RPM, 30 SMTC, 20 HP, Cat 40, TSC, Fourth Axis, Box Ways, Chip Conveyor, Mist Collector
| X | 39.76" | 1,009.9 mm |
| Y | 19.7" | 500.38 mm |
| Z | 20.47" | 519.94 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 30 | 30 |
| Taper | #40 | #40 |
| Table-W | 47.24" | 1,199.9 mm |
| Table-L | 17.71" | 449.83 mm |
| # Axis | 4 | 4 |
| Dimensions | 17" x 91" x 97" | 17" x 91" x 97" |
| Weight | 12,000 lbs. | 12,000 lbs. |
X-Axis 39.76"
Y-Axis 19.7"
Z-Axis 20.47"
Table Size 47.24" x 17.71"
Spindle Speed 8000 RPM
Spindle Taper CAT 40
Spindle Motor 20 / 15 HP AC
Tools 30
Table Load Capacity 1320 lbs.
Rapid Traverse Rates 787 IPM
Max Tool Diameter 3.23" / 4.92"
Max Tool Length 11.8"
Max Tool Weight 15.4 lbs.
Machine Dimensions (L x D x H) 117" x 91" x 97"
Machine Weight 12,000 lbs.
Spindle Nose to Table Top 4.72 - 25.6"

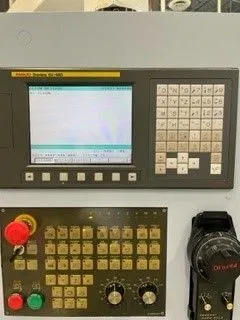

• FANUC 0i-MD CNC Control
• 10.4" Color LCD
• USB Port
• Through Spindle Coolant (250 psi)
• Chip Conveyor (Front Left Exit Hinge Type)
• 30 Position Side Mount Tool Changer

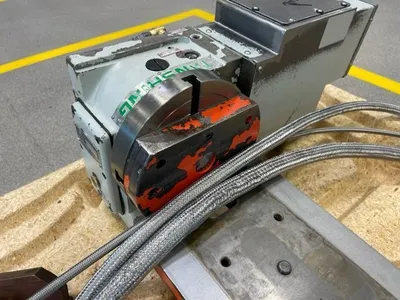

• Tanshing VRNC-210 Fourth Axis Rotary Table

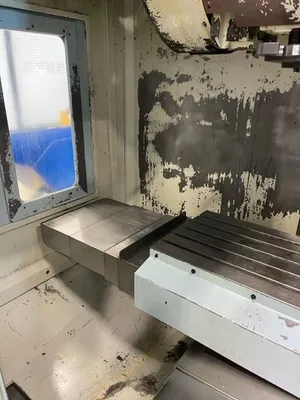

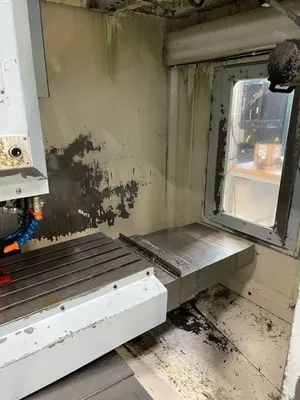

• Horizontal Fixture Plate with Bearing Support
• Spindle Chiller Unit
• Rigid Tapping
• Remote Jog Handle
• Base Coolant Wash System
• Three Color Tower Light
• Auto Power Off
• Spindle Air Blast
• Mist Collector
• Two Speed Gearbox
• Heavy Duty Box Way Construction
• Manufacture Date June 2010
