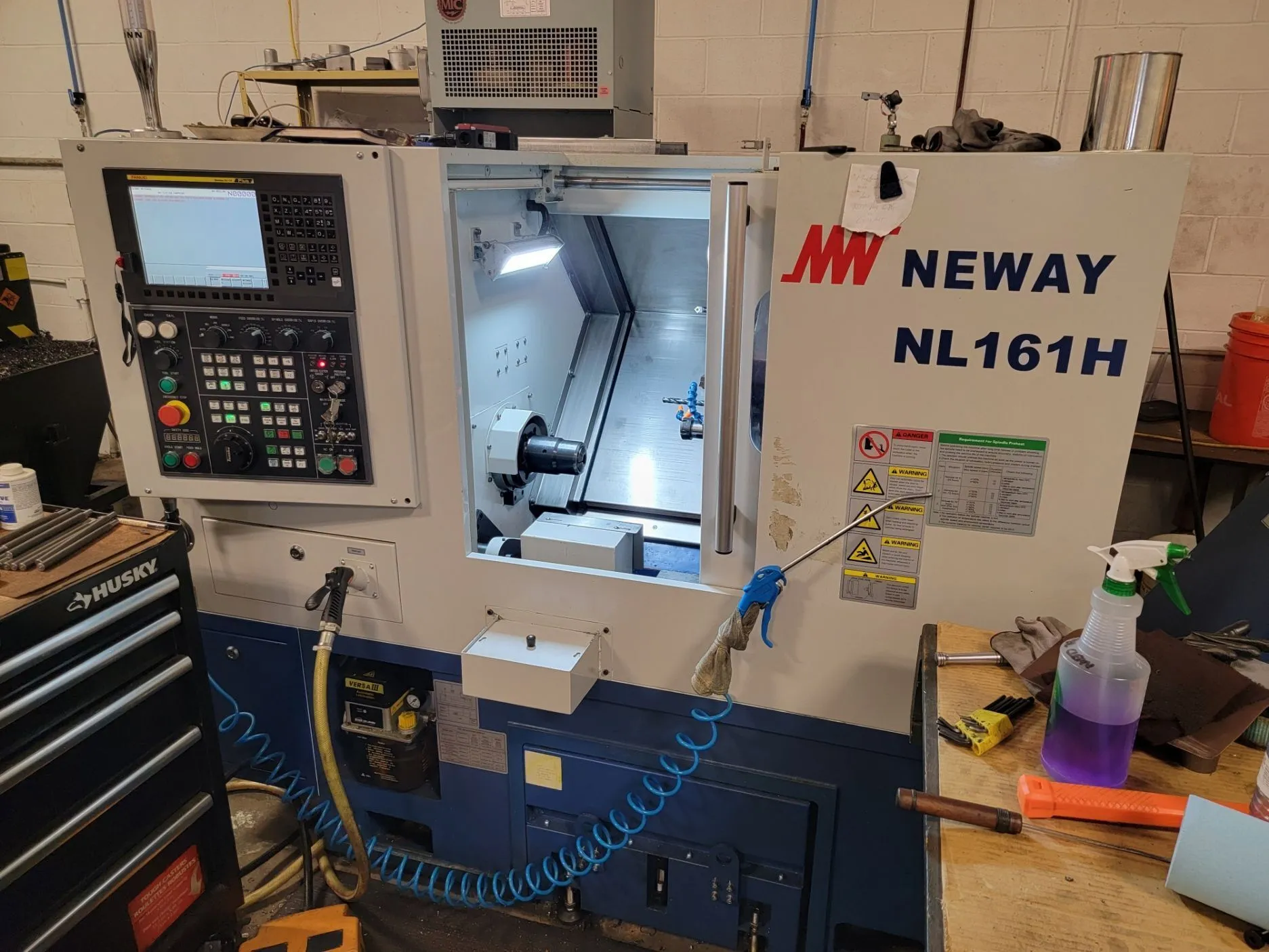

USED NEWAY NL161H
Overview
The Neway NL161H is a known for high speed, rigidity, and precision. It features a 45° slant bed design, a reinforced spindle box, and a high-speed spindle unit.
Specs
Neway NL161H 2 Axis Slant Bed CNC Lathe
Capacity -
Max. Work Swing: 19.69"
Swing Over Cross Slide: 11.81"
Max. Turning Diameter: 8.26"
Max. Turning Length: 12.6"
Bar Capacity 1.7"
Travels -
X Axis: 4.92"
Z Axis: 13.78"
Spindle -
Spindle Nose: A2-5
Chuck Diameter: 6" Hollow
Spindle Motor Power: 7.4/10 HP
Spindle Speed: 6,000 RPM
Turret -
Tool Stations: 8 Tools
Tool Size (turning tool): 3/4"
Tool Size (boring tool): 1-1/4"
Indexing Time Tool-to-Tool: 0.5s
Tailstock (Option) -
Dia./travel of the Sleeve: 2.56/3.15"
Mandrel Taper Hole: Morse #4
Programmable Position and Quill
Feedrate -
X/Z Axis Rapid: 1182/1182 IPM
Cutting Feed Rates: 315 IPM
Power & Air Requirements -
220 Volts/ 3 Phase/ 60 Cycle
Coolant System -
Pump Motor Output: 0.493 HP
Pump Flow Rate: 7.3 gpm
Pump Pressure: 21.78 PSI
Equipped With
- Fanuc 0i-T Control
- 8-station Hydraulic Turret
- 6" Hollow Hydraulic Chuck and Solid Cylinder
- Air Conditioner Electric Cabinet
- Automatic Lift-up Chip Conveyor With Scrap Cart
- Automatic Lubricating System
- Hydraulic System
- Coolant System & Air Gun
- Tri-Color Cycle Light
- Operation Manual
