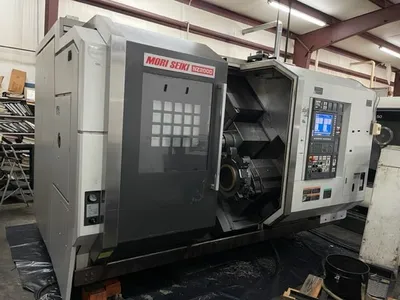

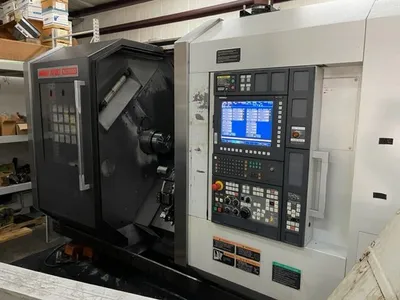

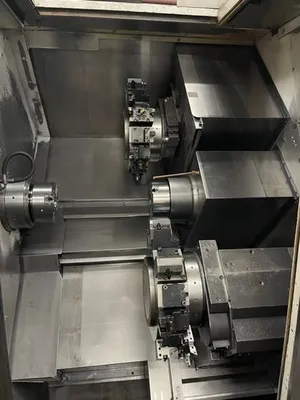

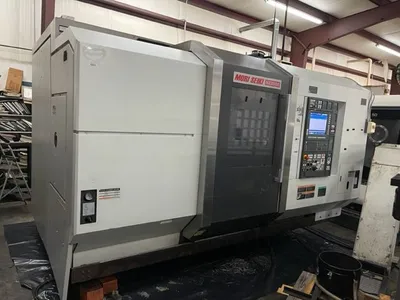

USED 2008 MORI SEIKI NZ-2000T2Y
Overview
Description
MSX-701, Twin Opposed Spindles, 2.5" Bar, Y-Axis, Upper & Lower Turrets, (2) 8" Chucks, 5000 RPM, 16/16 Tools, 33HP, Chip
Specifications
| Swing | 31.5" | 800.1 mm |
|---|---|---|
| Machining Length | 31.9" | 810.26 mm |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.5" | 63.5 mm |
| Power | 33.3 hp | 24.8 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Turning Dia | 12.5" | 317.5 mm |
| Tailstock | 'No' | 'No' |
| Dimensions | 154.7" x 145" x 91.3" | 154.7" x 145" x 91.3" |
| Weight | 18,000 lbs. | 18,000 lbs. |
Chuck Size: 8" (2)
Max Diameter Bar Capacity: 2.5"
Max Swing Over Bed: 31.5"
Turning Diameter (Max / Std): 12.5" / 7.9"
Max Machining Length: 31.9"
Spindle Motor (L & R): 33.3 / 29.3 HP
Spindle Speed (L & R): 5000 RPM
Spindle Nose (L & R): A2-6
Spindle Bore (L & R): 2.9"
Tools: 16 x 2 (All Live)
Milling Motor: 10 HP
Milling Speed: 6000 RPM
Sub Spindle Travel: 36.2"
Rapid Traverse Rates (X / Z): 1181 / 1968 IPM
X-Axis Travel (Upper & Lower Turrets): 8.3"
Z-Axis Travel (Upper & Lower Turrets): 31.9"
Y-Axis Travel: 4.3"
C-Axis Index (Left & Right Spindles): .001 Degrees
Machine Dimensions (L x W x H): 154.7" x 145" x 91.3"
Machine Weight: 18,000 lbs.
Distance Between Spindles: 44.4"
Equipped With

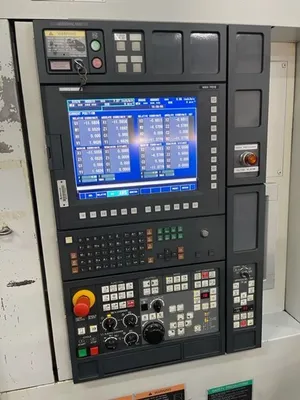

MORIC MSX-701 III CNC CONTROL
15" Color TFT

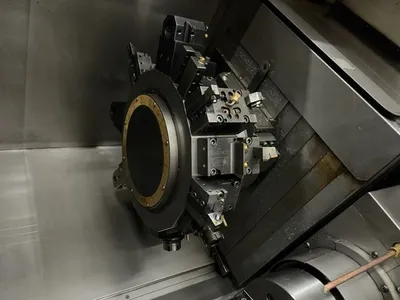

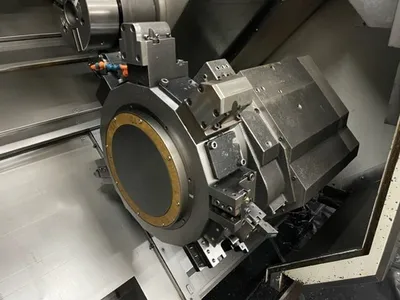

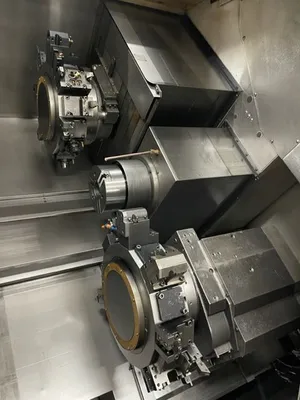

Upper & Lower Turrets with Twin Opposed Spindles

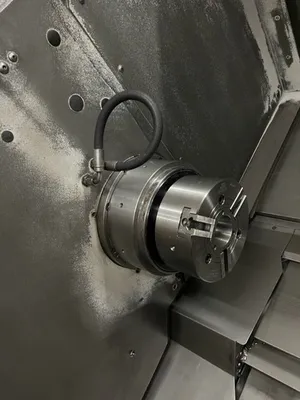

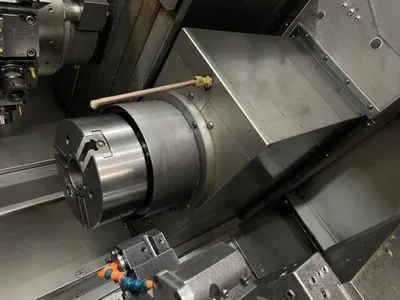

8" Hydraulic Chucks on Left and Right Spindles
Y-Axis Live Tooling in Upper Turret
Live Tooling on Lower Turret
CAPPS Conversational Programming
8" Hydraulic Chuck for Left and Right Spindle
High Pressure Coolant
Chip Conveyor (Side Exit)
(2) OD Live Holders
(4) Double Turning Holders
(6) Boring Bar Holders
(7) Turning Holders
Manufacture Date September 2008
24,516 Power On Time
287 Operation Time
213 Cutting Time
