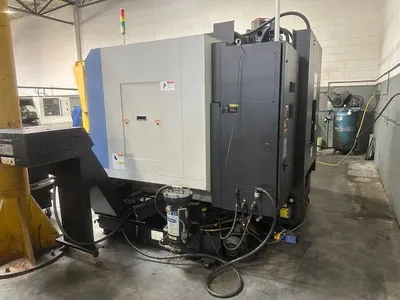

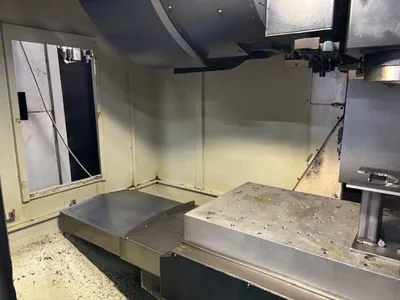

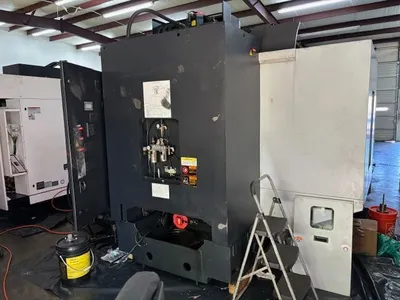

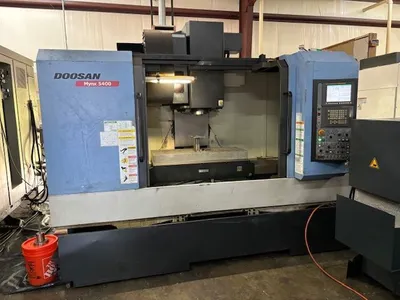

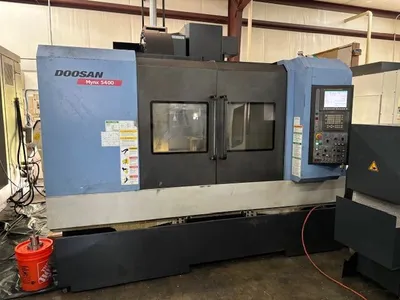

USED 2012 DOOSAN MYNX 5400
Overview
Description
This is the rare 40" x 20" VMC with box ways in excellent condition with very low (4058) cutting hours, through spindle coolant and chip conveyor. Ideal for cutting hard metals and tool steel molds.
Specifications
| X | 40.2" | 1,021.1 mm |
|---|---|---|
| Y | 21.3" | 541.02 mm |
| Z | 20.8" | 528.32 mm |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 30 | 30 |
| Taper | #40 | #40 |
| Table-W | 47.2" | 1,198.9 mm |
| Table-L | 21.2" | 538.48 mm |
| # Axis | 3 | 3 |
| Control | CNC (FANUC) | CNC (FANUC) |
| Weight | 16500 lbs. | 16500 lbs. |
X-Axis 40.2"
Y-Axis 21.3"
Z-Axis 20.8"
Table Size 47.2" x 21.2"
Spindle Speed 8000 RPM
Spindle Taper CAT 40
Spindle Motor 20 HP
Tools 30
Table Load Capacity 1760 lbs.
Rapid Traverse Rates 1181 IPM
Max Tool Diameter 3.54"
Max Tool Length 11.8"
Max Tool Weight 17.6 lbs.
Machine Weight 16,500 lbs.
Equipped With

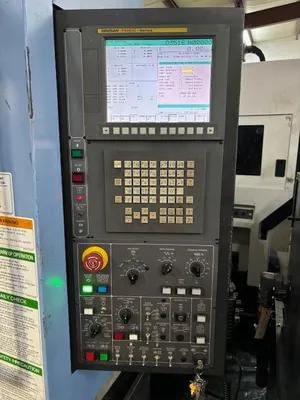

• FANUC i Series CNC Control
• 10.4" Color LCD
• USB Port
• Through Spindle Coolant (290 psi)
• Chip Conveyor (Hinge Type Right Side Exit)
• Remote Jog Handle
• Rigid Tapping
• 30 Position Side Mount Tool Changer
• 17,077 Power On Time
• 6554 Operating Time
• 4058 Cutting Time
• Manufacture Date March 2012
• Two Speed Gearbox
• Heavy Duty Box Way Construction
• New Replacement Cost $192,200
