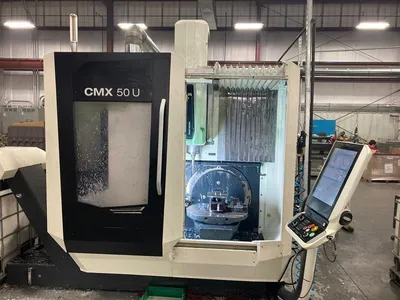

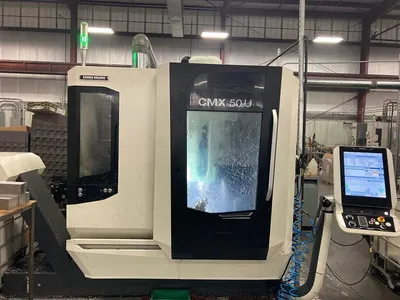

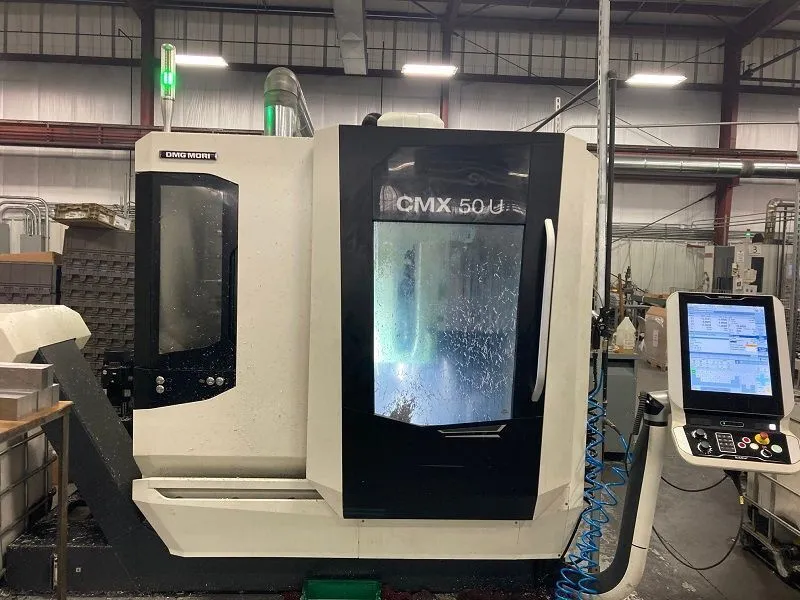

USED 2020 DMG MORI CMX 50U
Overview
Description
Siemens 840D, 5-Axis, 25 x 20" Pallet, 20.18.16", 15000 RPM, Cat 40 Big Plus, 28 HP, 60 Tools, TSC, Probes, 3D Quickset, Chip Conveyor
Specifications
| X | 19.6" | 497.84 mm |
|---|---|---|
| Y | 17.7" | 449.58 mm |
| Z | 15.74" | 399.8 mm |
| # Axis | 5 | 5 |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 60 | 60 |
| Taper | #40 | #40 |
| Control | CNC (DMG MORI SLIMline Multi-Touch) | CNC (DMG MORI SLIMline Multi-Touch) |
| Dimensions | 163" x 140" x 107" | 163" x 140" x 107" |
| Weight | 12,000 lbs. | 12,000 lbs. |
X-Axis: 19.6"
Y-Axis Travel: 17.7"
Z-Axis: 15.74"
B-Axis (Table Swivel): -5 to +110 Degrees
C-Axis Index: 0.001 Degree

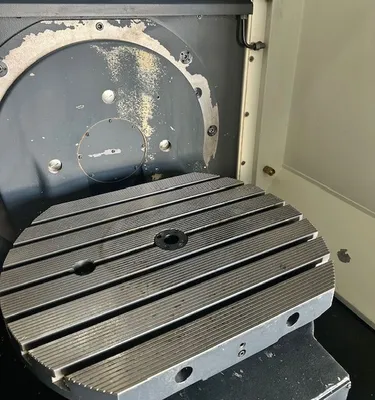

Table Size: 24.8" x 19.7"
Spindle Speed: 15,000 RPM
Spindle Taper: Cat 40 Big Plus
Spindle Motor: 27.2 / 19.4 HP
Tools: 60
Table Load Capacity: 440 lbs.
Rapid Traverse Rates: 1181 IPM
Max Tool Diameter: 2.76"
Max Tool Weight: 17.6 lbs.
Machine Dimensions (L x D x H): 163" x 140" x 107"
Machine Weight: 12,000 lbs.
Spindle Torque: 89.24 ft. lbs.
Equipped With

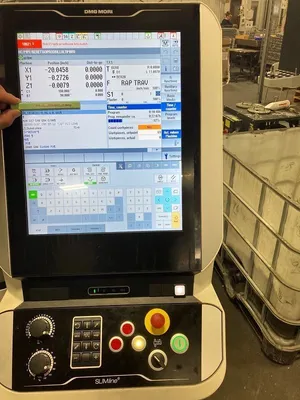

DMG MORI SLIMline Multi-Touch Control (Siemens 840D)
19" Multi-Touch Color TFT
5-Axis Machining Capability
(2) USB Ports

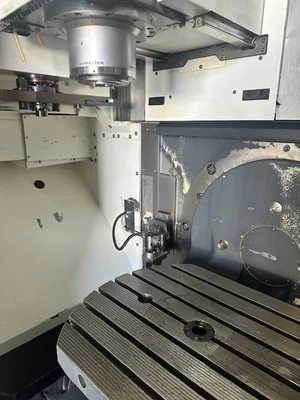

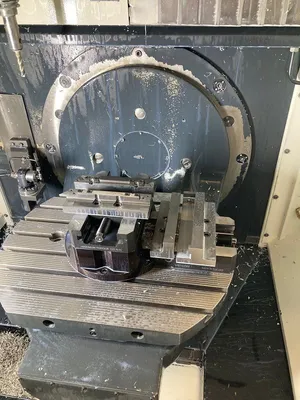

Integral Trunnion Rotary/ Tilt Platter
Chip Conveyor (Left Side Exit)
15000 RPM Cat 40 Big Plus Spindle
60 Tool Magazine
Renishaw PP40 Touch Probe
Renishaw TS27R Tool Presetter
3D Quickset
Through Spindle Coolant (12 Bar)
Bed and ATC Arm Flushing via M-Function
Coolant Spray Gun for Swarf Removal
External Electronic Handwheel
Cabin Roof
Signal Lamp with Four Colors
16 MB Memory
Graphic Simulation of the Machining Process
7112 Power On Time
5209 Cutting Time
