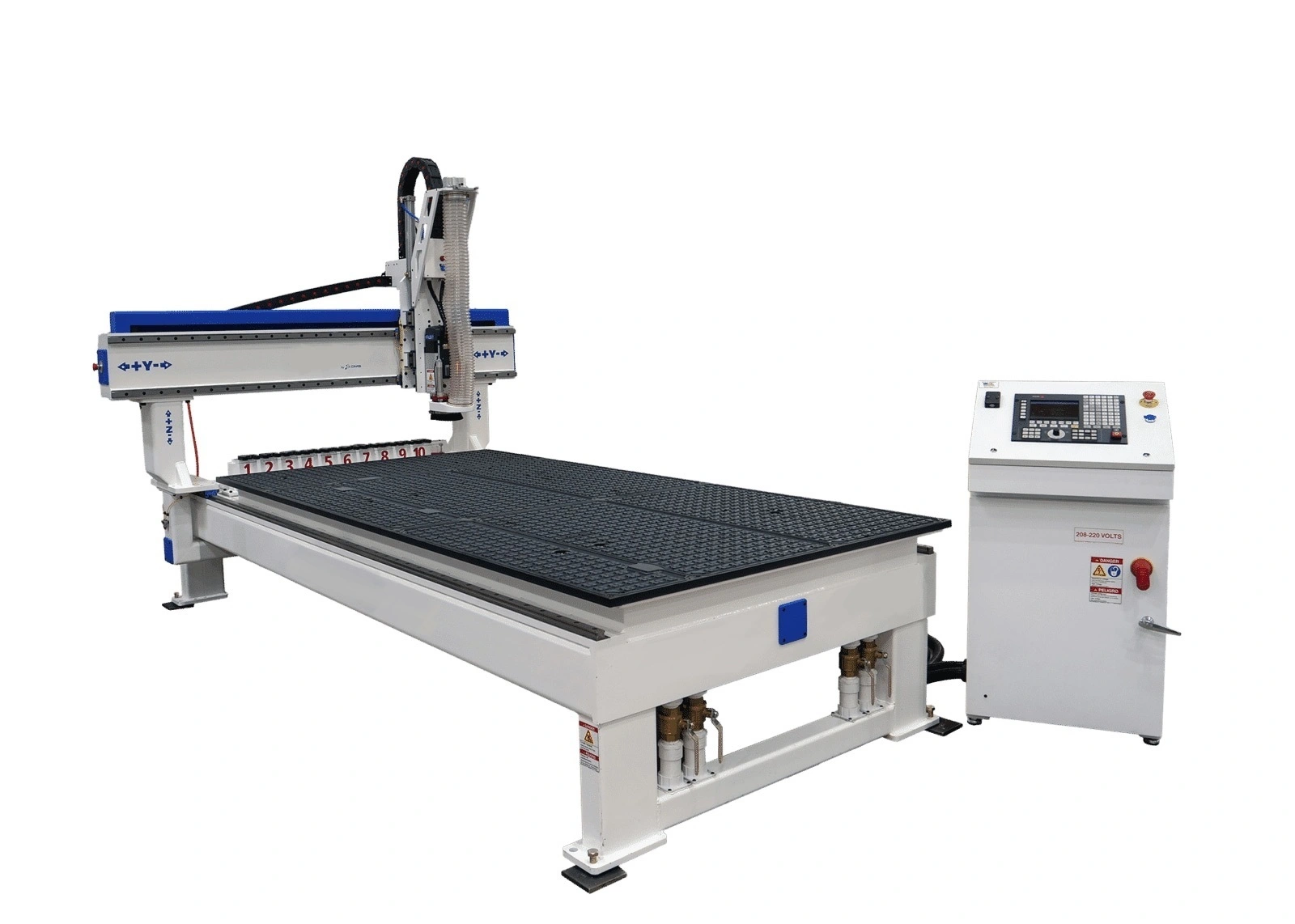

NEW DMS Freedom 10

Compact Industrial CNC for Small Shops and Specialty Manufacturing

The Freedom 10 Standard CNC Router by Diversified Machine Systems (DMS) is engineered for shops that need extra strength, speed, and workspace to scale production. With a robust 5′ x 10′ cutting table and reinforced gantry structure, this 3-axis router is ideal for high-efficiency cabinet production, custom woodworking, and nested-based panel processing at volume.

Its larger format supports fast machining of Baltic Birch sheets, hardwoods, composites, and thin aluminum, making it a powerful step up from the Freedom 4 or 8 for manufacturers who require both capacity and durability.

Standard lead time: approximately 14 weeks. Contact DMS for pricing

Key Advantages
• Industrial 3-axis CNC router with moving gantry design
• Fagor 8070 OL industrial controller with 17” LCD
• Rigid steel frame for stability during extended cuts
• Recirculating ball screw assembly on all axes
• Fagor AC servo motors & amplifiers on all axes
• Standard 5’x10’ phenolic table (aluminum optional)
• 5″ dust hood included, connects to user’s dust system
• Optional Becker vacuum pumps (5, 10, or 15 HP)
• Hiteco 10 HP electro spindle standard (other options available)
• Connectivity via Ethernet TCP/IP, USB, and Serial Port

Min – Max Axes Strokes * DMS standard configuration: X axis = Bridge axis
X: 60″
Y: 120″
Z: 12″
C: C-Axis optional

Operating Units and Spindles
Max Power (S1 / S6): 8kw
Max rpm: 24,000
Spindles Range (min-max kW)(S1): 4.5-8kw
Units Range: Hiteco MT200, MT201, PT300, PT402

Specifications
Transmission type: Spinning Ball Nut & Recirculating Ball Screw
Feedback encoders: 5’x10′
Motor Encoders: Rack-Man
Machine Envelope (Table Size): 12
HMI + NCs: Fagor+ Fagor
