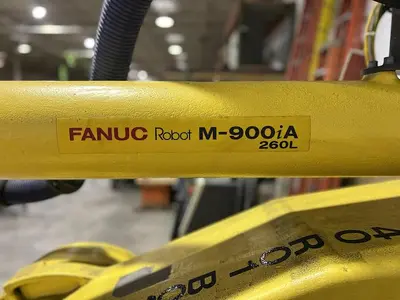

USED 2010 FANUC FANUC M-900IA/260L

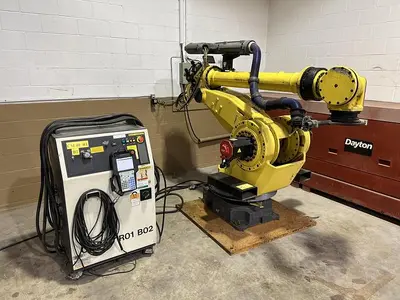

This used FANUC M900iA/260L (2010) is a robot available from R.A.B. Industries. It is equipped with the R30iA controller and 6-axis configuration.

1 - USED FANUC M900iA/260L 6 AXIS ROBOT WITH R30iA CONTROLLER

STK: 104878

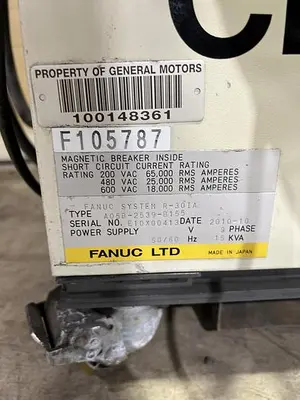

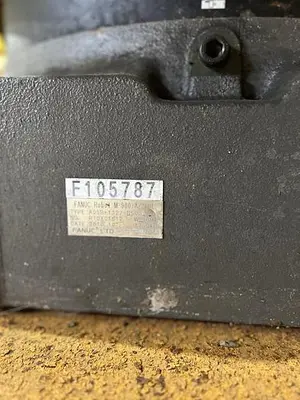

S/N: F105787

DATE OF MFG: 2010-10

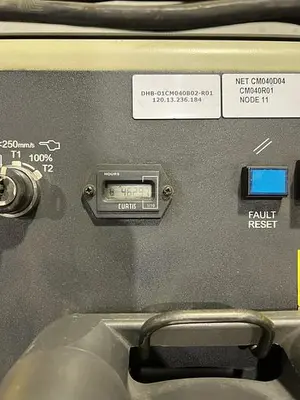

HOURS ON METER: 4,629

======================================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER:

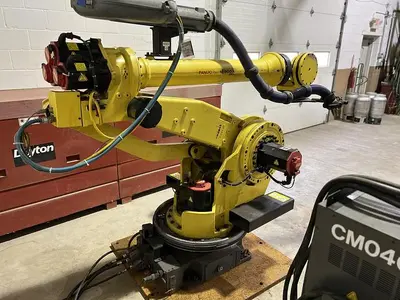

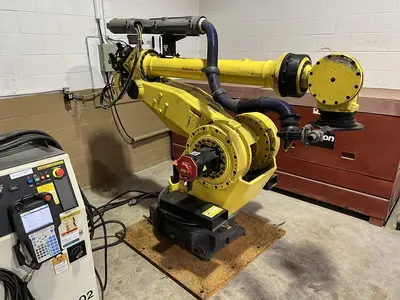

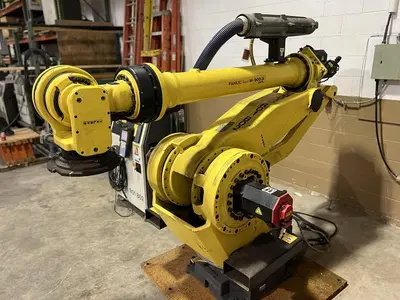

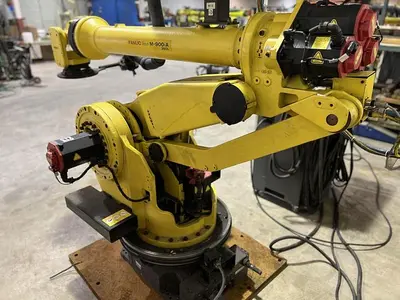

The Fanuc M-900iA/260L industrial robot arm features an extended horizontal reach to incorporate larger parts than the standard 900 robot arm. This robot can be floor, angle, or ceiling mounted to further produce a versatile and space savings workspace. Also, the slim, stationary outer arm helps to simplify hose and cable dress out, prolong service life, and also minimize interference with system peripherals in confined spaces.

SPECIFICATIONS:

Axes: 6

Payload: 260kg

H-Reach: 3100mm

Repeatability: ±0.3mm

Robot Mass: 1800kg

Structure: Articulated

Robot Motion Speed:

J1 100 °/s (1.75 rad/s)

J2 105 °/s (1.83 rad/s)

J3 95 °/s (1.66 rad/s)

J4 120 °/s (2.09 rad/s)

J5 120 °/s (2.09 rad/s)

J6 200 °/s (3.49 rad/s)

Robot Motion Range:

J1 ±180°

J2 ±75°

J3 +90° - 121°

J4 ±360°

J5 ±125°

J6 ±360°

Applications:

Waterjet Robots

Material Handling Robots

Fiberglass Cutting Robots

Spot Welding Robots

EQUIPPED WITH:

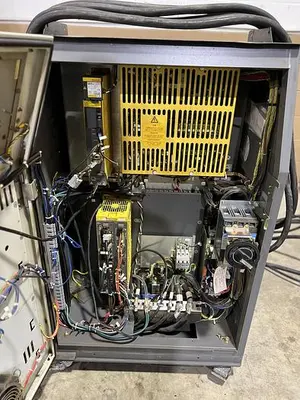

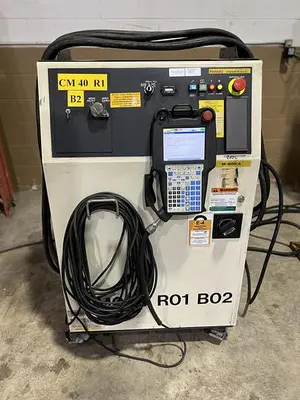

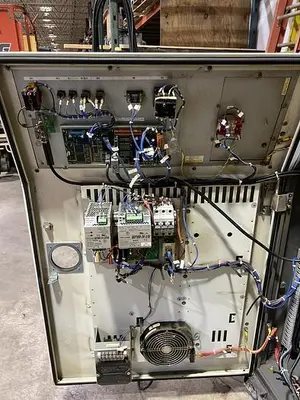

R30iA CONTROLLER

TEACH PENDANT, RM1, RM2, AND RP1 CABLES

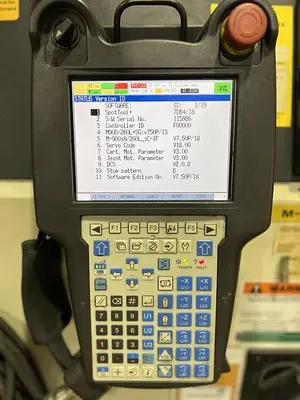

COLOR TEACH PENDANT
