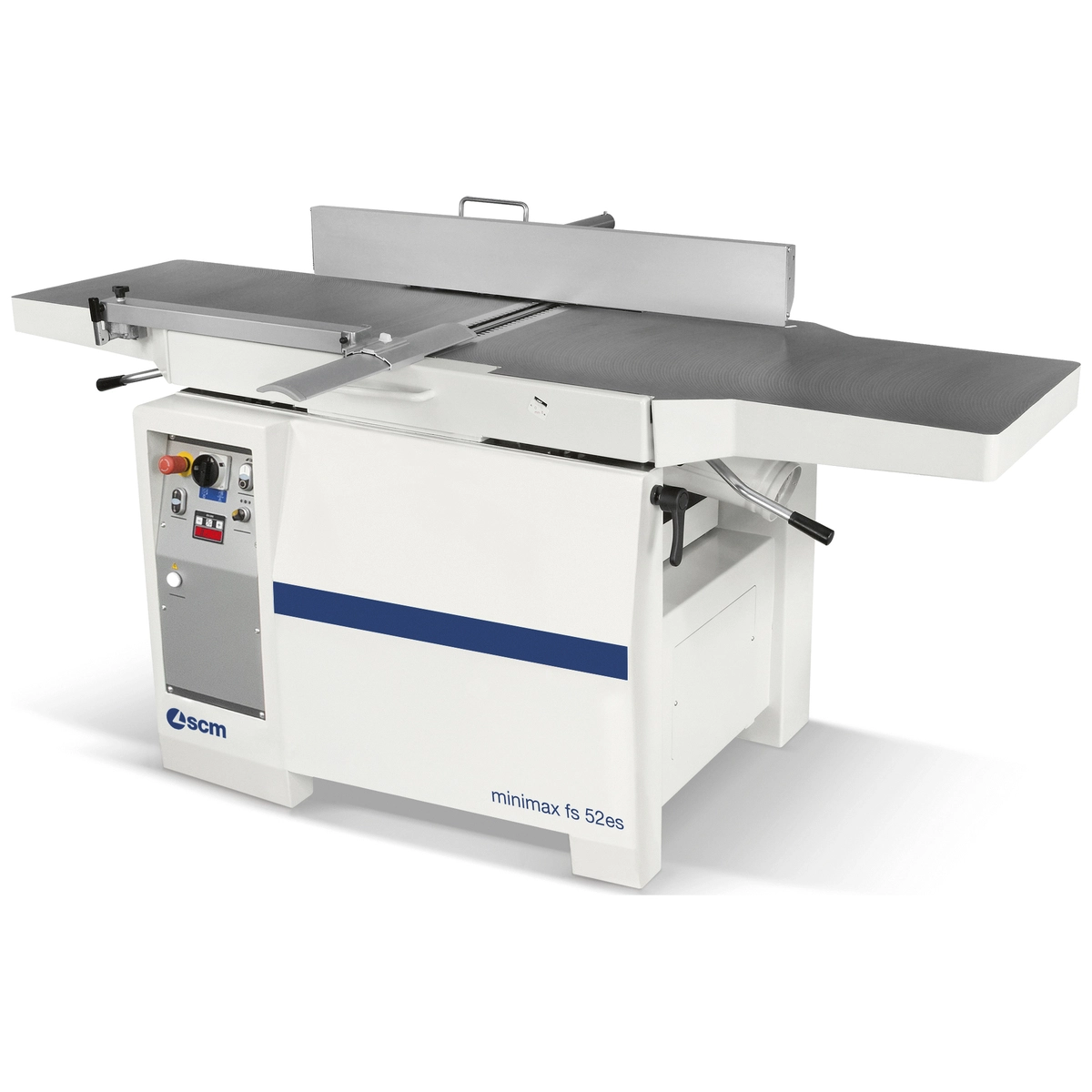

USED SCM FS 52 ES

The minimax fs 52es is a professional surfacing-thicknessing machine designed to meet the needs of demanding craftsmen and carpentry workshops. This massive and compact planer offers exceptional performance and versatility, making it ideal for high-flexibility production.
Equipped with the advanced "Xylent" spiral-knife cutterblock, the minimax fs 52es ensures superior finish quality and reduced noise levels. The cutterblock features three series of knives, which enhance cutting precision and extend the tool's lifespan, ensuring long-term reliability.
This single-phase machine combines robust construction with cutting-edge technology, making it a perfect choice for those seeking durability, precision, and efficiency in their woodworking projects.
ADVANTAGES

Perfect finish An optimal planing with minimal effort, thanks to the 120 mm diameter cutter block and 4 knives: perfect finishing with the minimum effort

“Xylent” spiralknife cutter block with 3 series of knives The 3 spiralknives give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.

Thicknessing table with lifting on 4 spindles with trapezoidal threads: stability overtime

High rigidity High rigid fence with a smooth movement thanks to the central locking on round bar.

PRODUCT DETAILS
Surface planer tables with simultaneous opening
Dedicated surface planer fence (dimensions 1200 x 150 mm)
Thicknessing table lifting by means of 4 columns dust protected
Helicoidal thicknesser infeed roller
Rubber-coated thicknesser outfeed roller
Pre-setting for mortiser
Numerical readout (1/10 mm) for thicknessing table height
Automatic star-delta start

SPECS
"Xylent" spiralknife cutterblock with 3 series of knives complete with:
no. 84 plates 15x15x2,5mm with 4 selflocking and selfcentering screw knives
no. 1 dynamometric key for the correct and safe use of the locking
no. 2 inserts for the dynamometric key
10 spare inserts kit (15x15x2,5) for Xylent spindle
self-braking motor
start/stop pushbuttons on operator position
Additional overturning fence for processing of thin workpieces
Powered vertical movement of thicknessing table with digital display
TECHNICAL DATA
 working width
[mm]
520
cutter block diameter (mm)/no. of standard knives
120/4
standard knives dimensions
[mm]
520 x 30 x 3
max. stock removal
[mm]
5
surfacing total length
[mm]
2250
thicknessing table dimensions
[mm]
520 x 850
feed speed on thicknesser
[m/min]
5/8/12/18
min. ÷ max. working height on thicknesser
[mm]
3 ÷ 240
min. working length on thicknesser
[mm]
220
Other technical features:
- Single-phase motor
 3,6kW (4,8hp) 60Hz
- exhaust outlet diameter
[mm]
120
