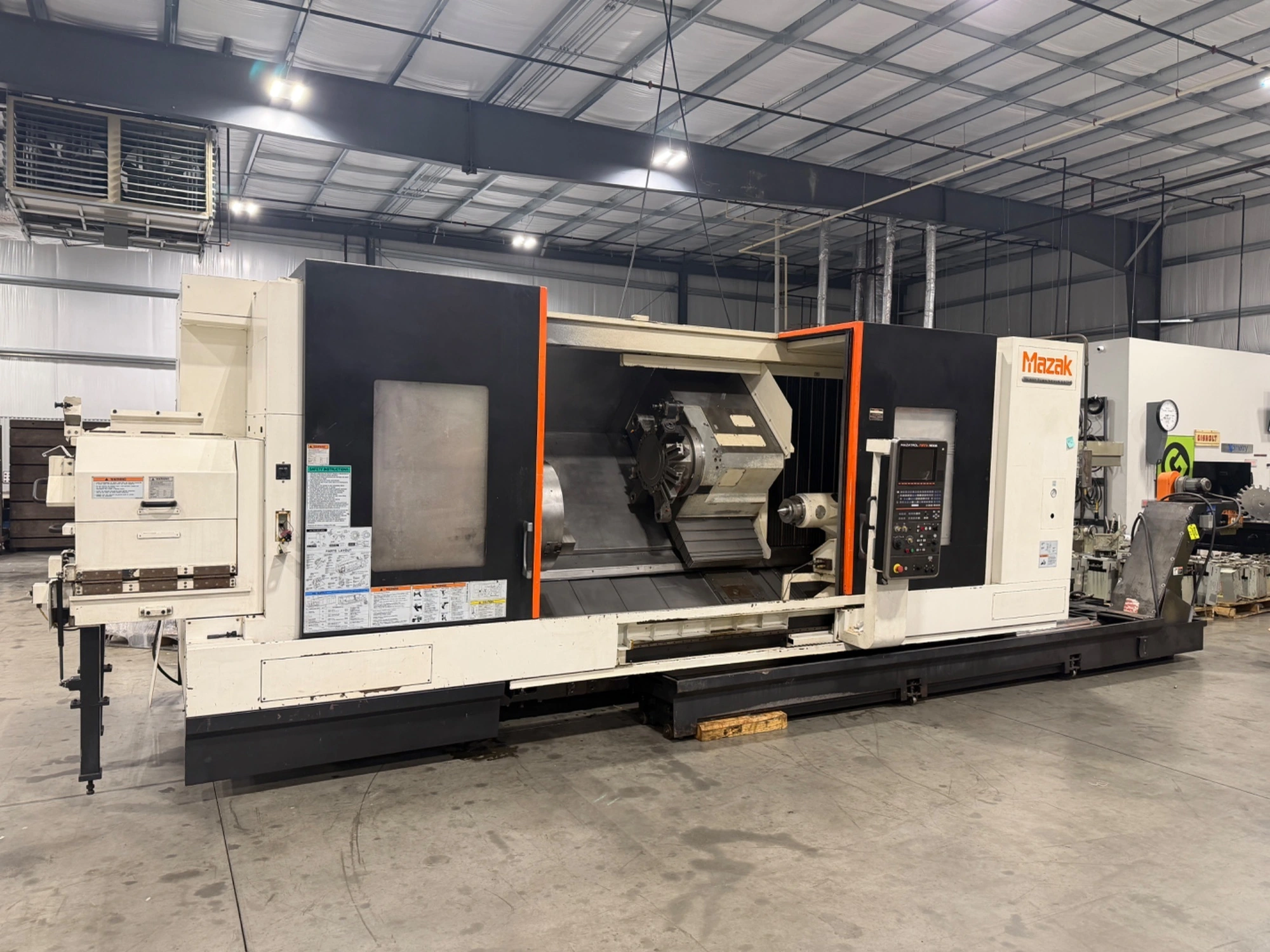

USED 2011 MAZAK SLANT TURN NEXUS 550M
Overview
Description
2011 MAZAK SLANT TURN NEXUS 550M CNC lathe features a 12.5" spindle bore, 80" machining length, 24" chuck, 3-axis control, and 60 hp power. Includes chip conveyor, 24" air chuck, and multitap transformer.
Specifications
| Swing | 40.9" | 1,038.9 mm |
|---|---|---|
| Machining Length | 80" | 2,032 mm |
| # Axis | 3 | 3 |
| Chuck Size | 24" | 609.6 mm |
| Bar Capacity | 12.5" | 317.5 mm |
| Power | 60 hp | 44.7 kW |
| Max RPM | 750 RPM | 750 RPM |
| Turning Dia | 29" | 736.6 mm |
| Tailstock | Yes | Yes |
| Live Tooling | Yes | Yes |
| Sub Spindle | No | No |
| Control | CNC (Mazatrol Matrix) | CNC (Mazatrol Matrix) |
SPINDLE BORE: 12.5
12 POSITION DRUM TURRET
ROTARY-TOOL SPINDLE SPEED: 4000 RPM
Equipped With
Chip Conveyor
24" Air Chuck
Rear Chuck Prep
EIA Option
Multitap Transformer
Steady rest prep (no steady rest included)
