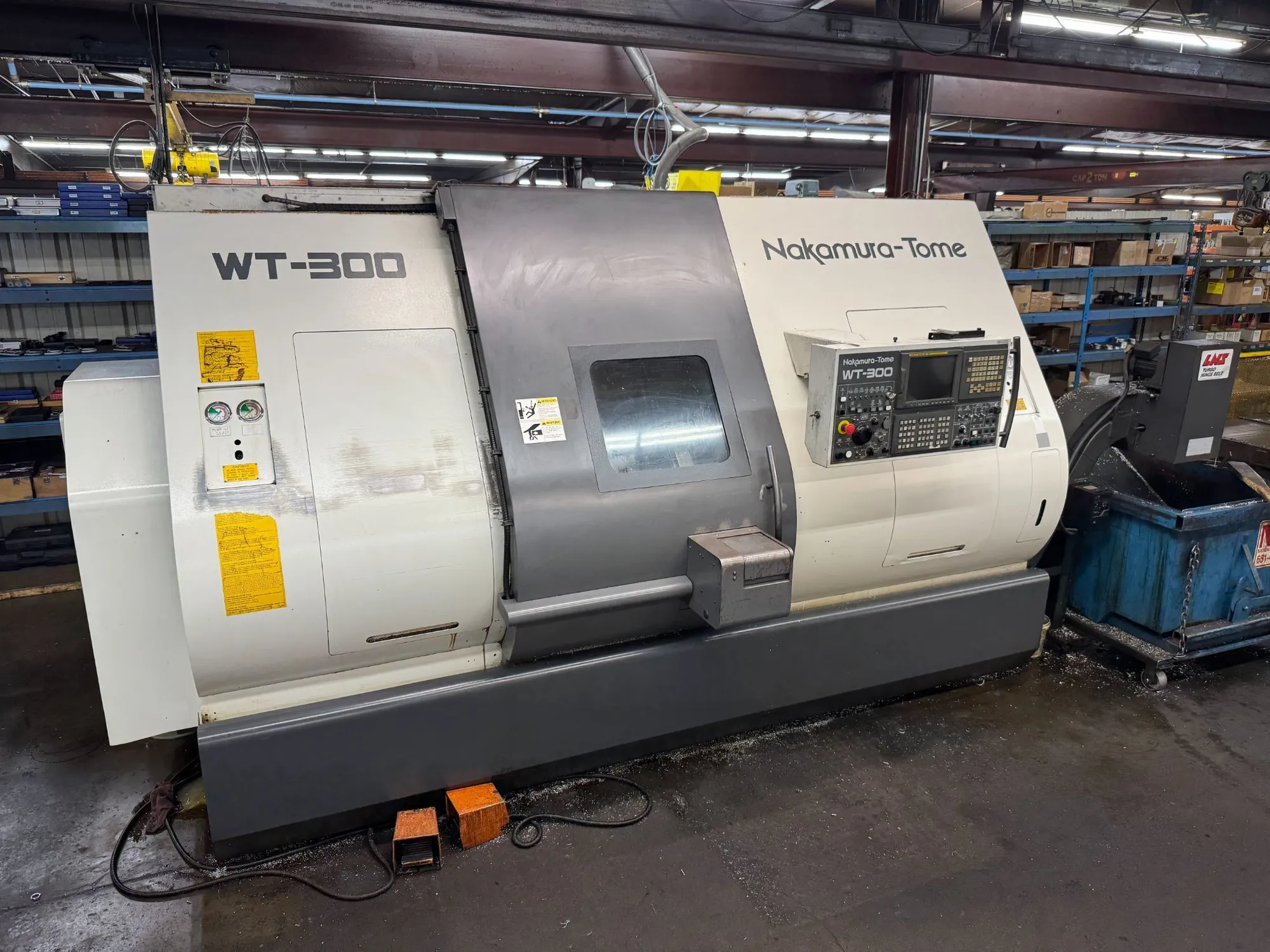

USED 2008 NAKAMURA TOME WT-300MMY
Or as low as $117.26 USD/month over 60 months
Overview
Description
Nakamura-Tome WT-300 MMY is a high-performance, multi-tasking CNC machine known for its precision milling and turning capabilities. It's a robust and reliable machine, box ways and very stout.
Specifications
| Swing | 10.6" | 269.24 mm |
|---|---|---|
| Machining Length | 43.3" | 1,099.8 mm |
| # Axis | 5 | 5 |
| Bar Capacity | 2.5" | 63.5 mm |
| Chuck Size | 10" | 254 mm |
| Distance Between Centers | 43.3" | 1,099.8 mm |
| Turning Diameter | 10.6" | 269.24 mm |
| Power | 25 hp | 18.6 kW |
| Max RPM | 4,500 RPM | 4,500 RPM |
| Tailstock | No | No |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |
| # of Turrets | 2 | 2 |
| Hole Thru | 2.5 in | |
| Control | CNC (FANUC 18 ITB) | CNC (FANUC 18 ITB) |
| Dimensions | 156" x 96" x 96" | 156" x 96" x 96" |
| Weight | 27,000 | 27,000 |
Max. Swing Dia.: 10.630''
Standard Cutting Diameter: 10.630''
Max. Distance Between Spindles: 43.30''
Bar Capacity 1 / 2: 2.5"
Spindle Nose / Spindle Thru Hole Diameter 1 / 2: A2-6'' / 3.15''
Spindle Speed: 4500 RPM
Spindle Horsepower 1 / 2: 25 HP AC
B - Axis Travel Right Spindle : 33.46''
Turret Type Number Of Positions 1 / 2: 24 DRUM TURRET
Number Of Milling Positions 1 / 2: 12 / 12
Rotary Tool Speed 1 / 2: 3600 RPM
Rotary Tool Horsepower 1 / 2: 7.5 HP AC
X - Axis Travel X1 / X2: 7.68'' / 7.68''
Z - Axis Travel Z1 / Z2: 30.71'' / 30.71''
Spindle Indexing Increments 1 / 2: .001 DEGREE
Machine Weight: 27,000 LBS.
Y - Axis Travel Y1: 4.72"
Turret Type Number Of Positions 1 / 2 : 24 DRUM TURRET
Equipped With
BMT65 Turrets - Live on both turrets
Upper/Lower Turrets
Y Axis Upper Turret
Main/Sub Spindles
Fanuc 18i-TB
Main Spindle - 10" three Jaw Chuck
Sub Spindle - 3 Jaw Kitagawa Chuck
(7) Various X and Z axis Live tools
LNS Turbo Chip Conveyor
