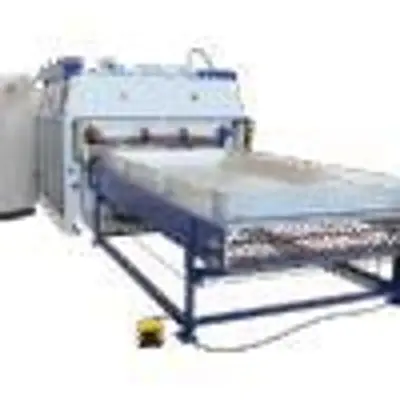

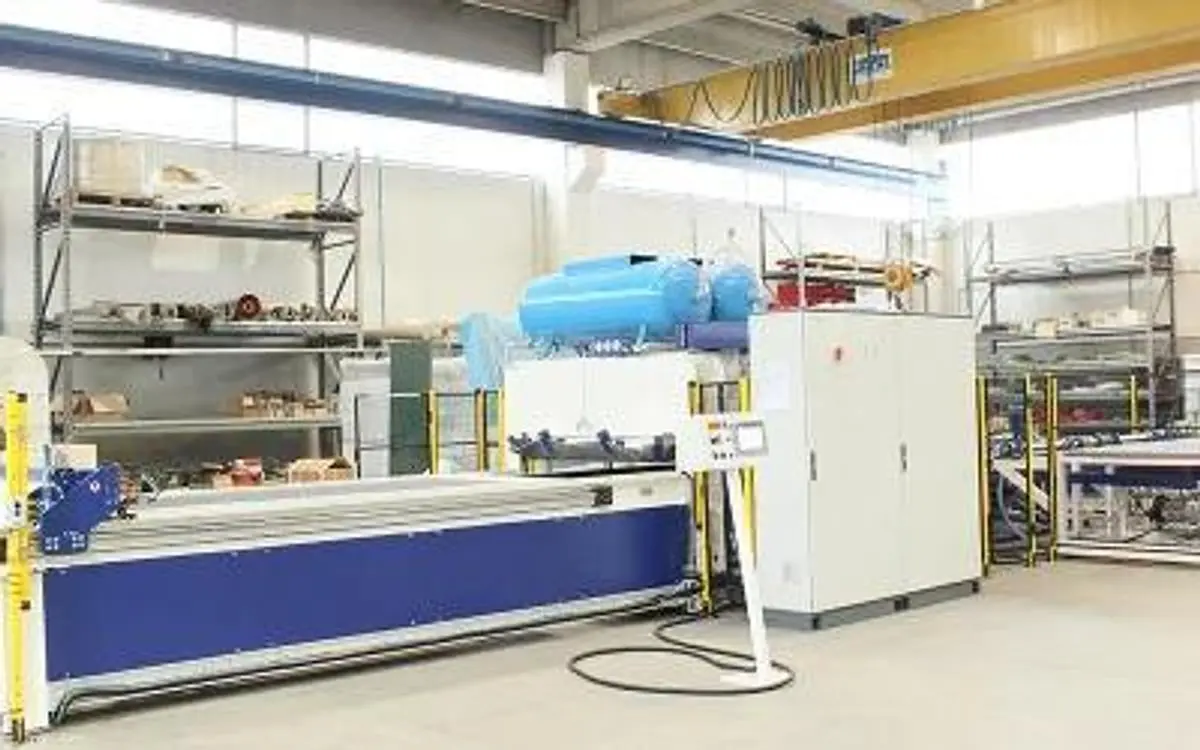

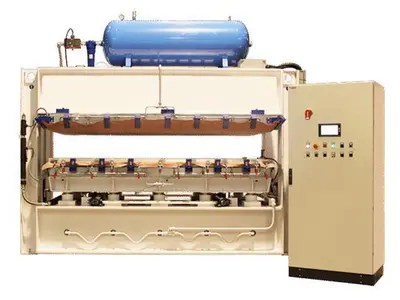

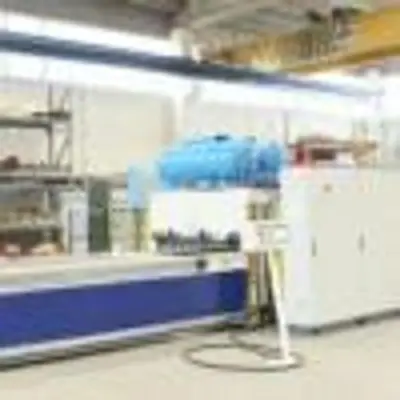

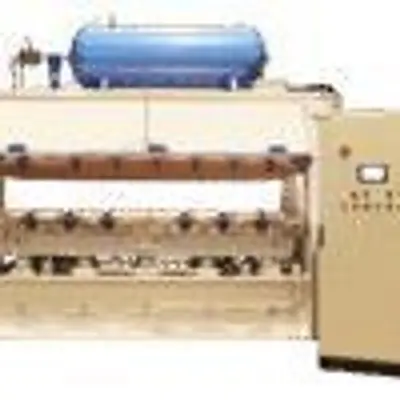

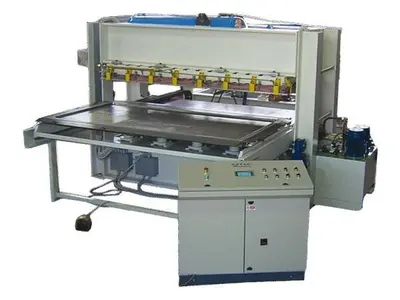

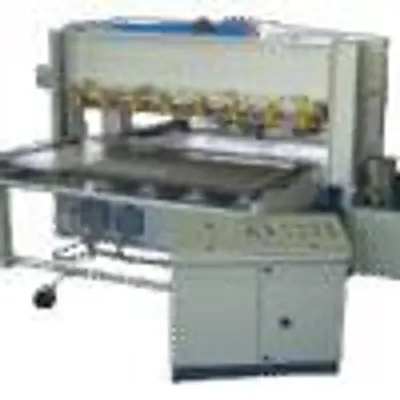

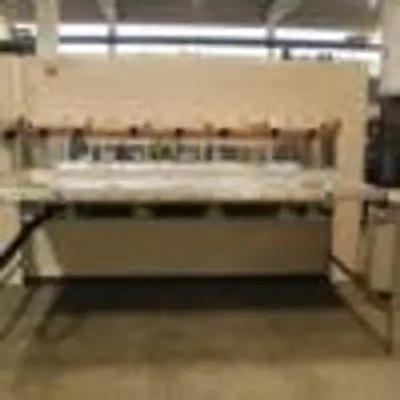

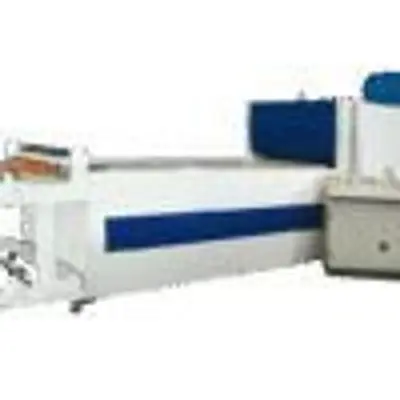

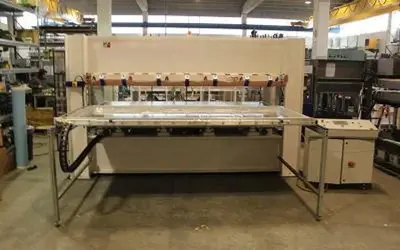

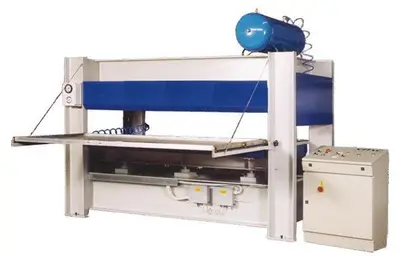

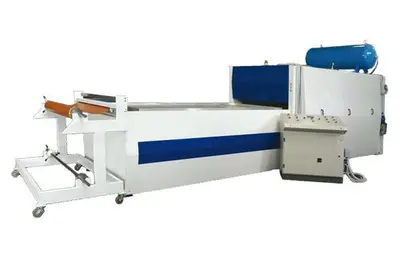

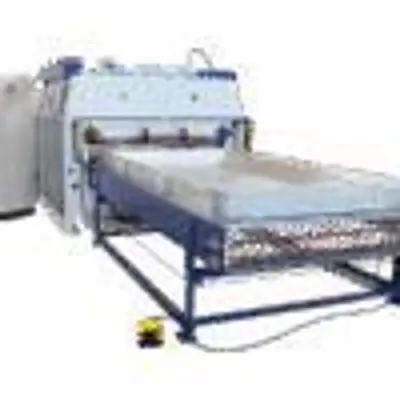

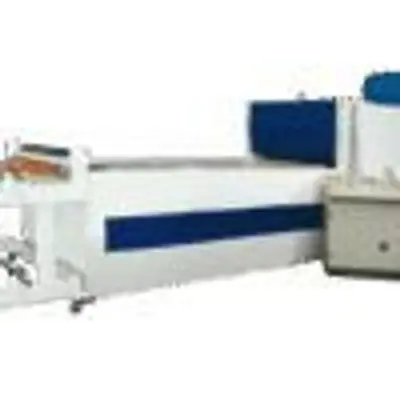

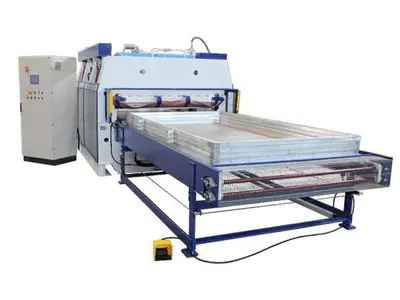

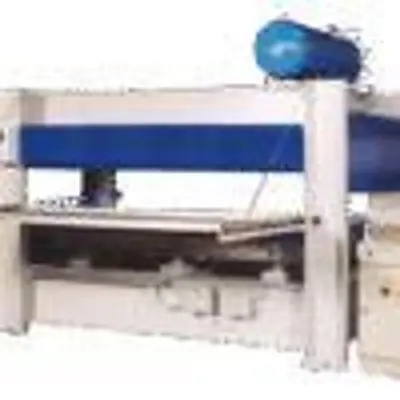

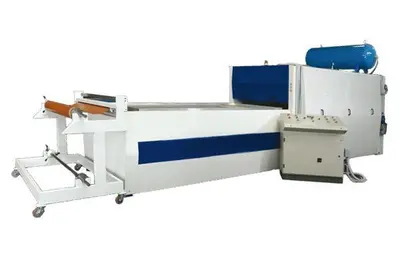

PL Conversion M Membrane Press

The PL Conversion M is a membrane press designed for the application of 3D thermoforming films and veneer on one side of shaped surfaces. Part of the PL Conversion series, it uses heat, air, and vacuum and is designed to achieve production volumes suitable for small and medium-sized enterprises.

The PL Conversion M can apply PVC, PPE, ABS, and other 3D thermoforming films with or without a membrane, depending on the application. For veneer application on shaped surfaces, the use of the membrane is always required. The press is equipped with a system that allows the membrane to be quickly attached and removed.

The PL Conversion M is also a standard hot/cold press for veneer and laminate application. Material is manual loaded from the long side, with two available working sizes and pressure configurations.

Functions:

Application of 3D thermoforming films including PVC, PPE, and ABS on shaped surfaces

Thermoforming with or without membrane depending on the application

Application of veneer on shaped surfaces

Hot/cold pressing for veneer and laminate application

Final Products:

Various types of shaped panels

Shaped components

Furniture doors

Bathroom furniture doors

Kitchen furniture doors

Loading:

Manual loading from the long side

Working Sizes:

PL Conversion M 25/13

Working Area: 2350 x 1180mm

Thrust: 3.5 + 1 kg/cm²

PL Conversion M 30/13

Working Area: 2800 x 1180mm

Thrust: 4 + 1 kg/cm²

Common Features:

Solid drilled steel work surfaces

Maximum working temperature: 250°C

Maximum specific working pressure: 30 kg/cm²

Steel plate work surfaces with holes for the circuit

Oil boiler with maximum oil temperature of 120°C, customizable for higher temperatures

Diathermal oil heating fluid

Digital touchscreen control panel

Standard Equipment:

1 rubber membrane

Diathermal oil heating

1 vacuum pump

Optional Equipment:

The PL Conversion M can be equipped with accessories available for the PL Conversion series, including:

PVC unwinding cart with manual cutting

PVC unwinding trolley with pneumatic cutting

Load group partializing bar

JIG System 25/14, magnetic

JIG System 30/14, magnetic

JIG System 25/14, electronic

JIG System 30/14, electronic

1400mm antistatic brush

Shiny PVC system with intermediate flange, software, and silicone membrane

Modular chamber, 90mm or 180mm

Surface cleaning system for glossy PVC

High Gloss PVC system

PVC granulator

PVC tensioning device

Tray scanning with distension and PVC cutting

Rotation multi-station PVC warehouse with 10 coils

Suction cup tipper unloader with motorized roller conveyor

The PL Conversion M complies with the EC 2006/42/EC Machinery Directive.
