Airtec Double

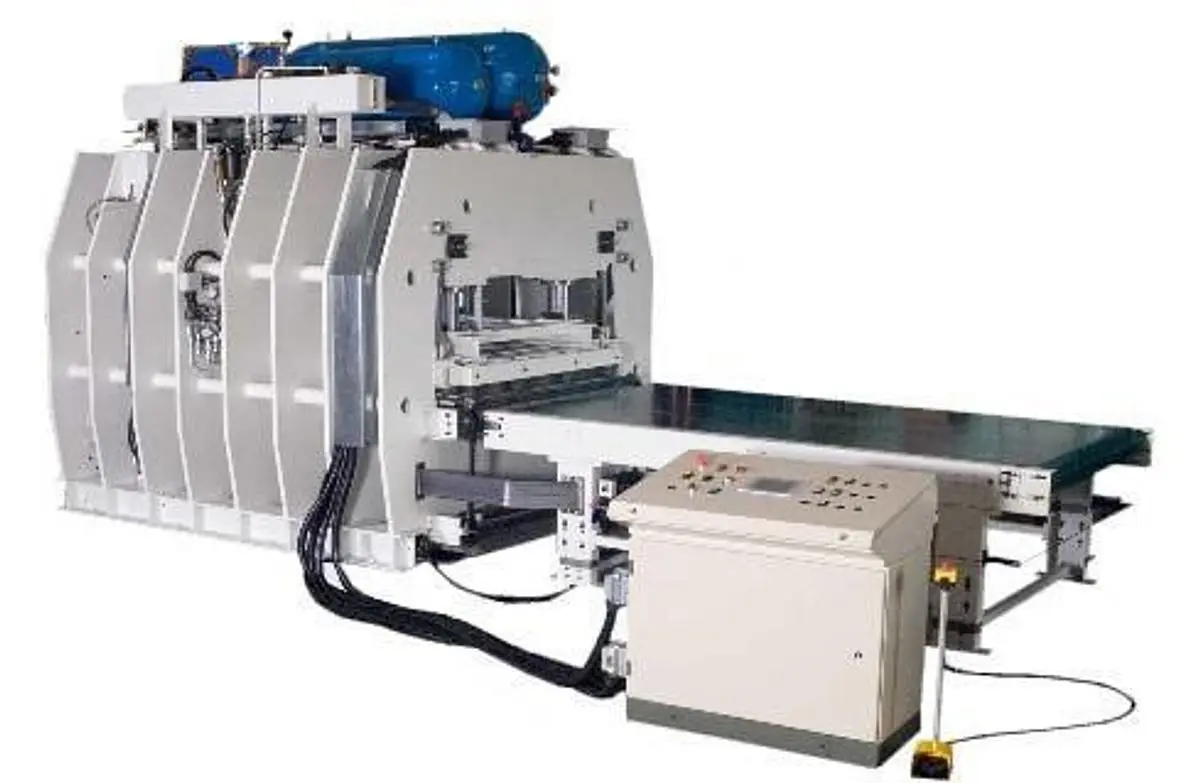

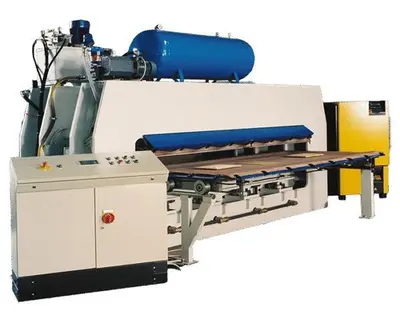

The Airtec Double Membrane Press is a high-performance industrial membrane press designed for the application of 3D thermoforming films and veneer on two sides of shaped panels and furniture components. Combining heat, air pressure, and vacuum technology, this machine is engineered for high-volume production where consistent coating quality, complex surface processing, and efficient material handling are essential.

Designed to process PVC, PPE, ABS, and other 3D thermoforming films, the Airtec Double Membrane Press can apply coatings to complex shaped surfaces with or without a membrane, depending on the application. For veneer processing, the membrane system provides the controlled pressure required for consistent adhesion across shaped surfaces. A quick-release system allows the membranes to be attached or removed efficiently when changing applications.

Online the single-sided Airtec models, the Airtec Double Membrane Press is specifically designed for two-sided thermoforming and veneer application. Equipped with two rubber membranes, dual proportional control valves, and two 500-litre compressed air tanks, the machine provides the pressure and control required to process both sides of the workpiece efficiently.

The Airtec Double Membrane Press features a heavy-duty oxy-cut structure, solid drilled worktops, diathermal heating, and digital touchscreen controls for reliable operation in demanding production environments. Motorized carpet loading further improves material handling and productivity, making this model particularly well suited for industrial furniture and shaped panel manufacturing.

Key Features:

Designed for two-sided thermoforming and veneer application

Processes PVC, PPE, ABS, and other 3D thermoforming films

Suitable for complex shaped surfaces

High pneumatic thrust for consistent coating application

Two rubber membranes for double-sided processing

Motorized carped loading system

Heavy-duty oxy-cut machine structure

Solid drilled steel worktops

Digital touchscreen control panel

Quick-release membrane system

Diathermal oil heating

Maximum working temperature up to 250°C

Maximum specific working pressure up to 30 kg/cm²

Available Models:

Airtec Double Up

Upper movable top

Motorized loader with carpet

Airtec Double Down

Upper movable floor

Motorized loader with carpet

Working Size:

Airtec Double 30/42

Working Area: 2550 x 1250mm

Thrust: 8 kg/cm²

Applications:

The Airtec Double Membrane Press is ideal for producing:

Double-sided thermoformed panels

Double-sided veneered panels

Shaped furniture panels

Kitchen cabinet components

Bathroom furniture components

Furniture doors and fronts

Decorative furniture components

Interior architectural panels

Complex shaped surfaces

Advanced Components:

Double-sided membrane pressing system

Two rubber membranes

Motorized carpet loading system

Solid drilled steel worktops

High pneumatic thrust system

Digital touchscreen control panel

Diathermal oil heating system

Dual proportional pressure control

Heavy-duty oxy-cut structure

Precision-machined steel work surfaces

Standard Equipment:

2 rubber membranes

Diathermal oil heating system

2 proportional control valves

2 x 500-litre compressed air tanks

Optional Equipment:

PVC unwinding cart with manual cutting

PVC unwinding trolley with pneumatic cutting

Load group partializing bar

JIG System 25/14, magnetic or electronic

JIG System 30/14, magnetic or electronic

1400mm antistatic brush

Shiny PVC system with intermediate flange, software, and silicone membrane

Modular chamber, 90mm or 180mm

Surface cleaning system for glossy PVC

High Gloss PVC system

PVC granulator

PVC tensioning device

Tray scanning system with PVC distension and cutting

Rotating multi-station PVC warehouse for up to 10 coils

Suction cup tipper unloader with motorized roller conveyor

Airtec Double Membrane Press is an ideal solution for manufacturers requiring efficient and precise coating of both sides of shaped components. Combining double-sided processing, high pneumatic thrust, advanced heating technology, and motorized material handling, the Airtec Double Membrane Press delivers reliable, professional-quality results for high-volume furniture, cabinet, and decorative panel production.
