Air Vacuum Forming Presses
Overview

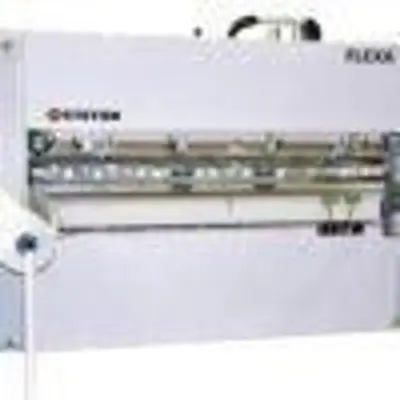

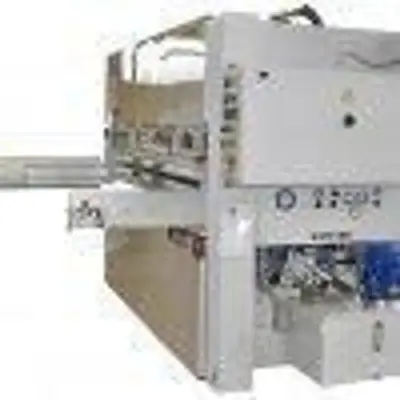

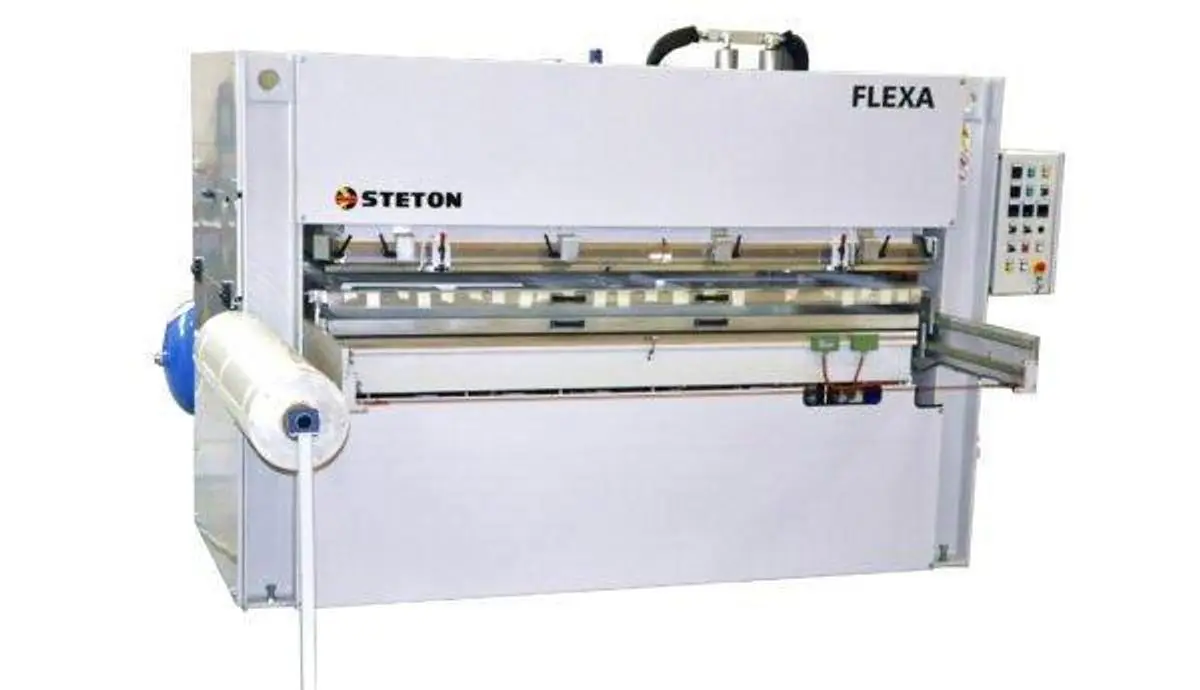

Industrial panel moulding air vacuum press FLEXA is used to cover shaped panels with PVC covering doors for kitchen cabinetry.
Industrial panel moulding Air Vacuum Forming Press FLEXA is designed to cover shaped panels with PVC for kitchen cabinetry doors. Its structure, built from profile-welded beams, withstands the high pressures required in this process. The top plates are resistance heated. The bottom mobile platen is precisely positioned by a rack system during press and release.
Air Vacuum Forming Presses can include extractable daylight trays (up to two) to ease manual loading and unloading. An O-ring silicon sealing wire ensures a tight seal between the fixed platen and tray.
Heating and pressurizing air is managed via an electric exchanger; the air heating circuit guarantees even surface heating for optimal results.

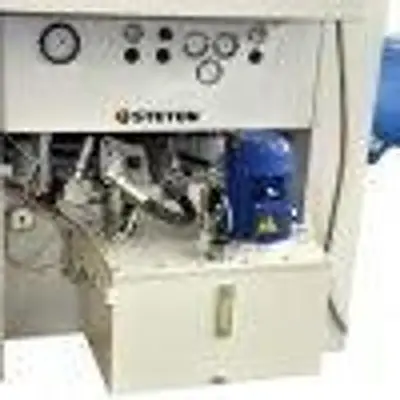

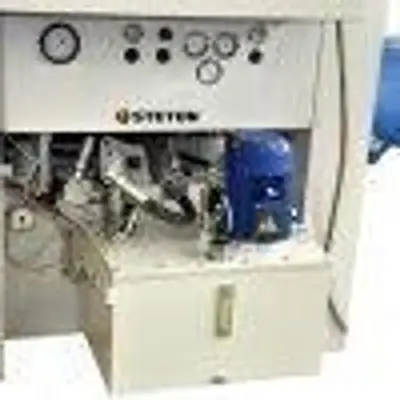

Air Vacuum Forming Presses operate using a standard facility air compressor. A high-power pump is included in the vacuum device for immediate air evacuation.
These features make Air Vacuum Forming Presses ideal for high-quality, efficient panel forming in cabinetry production.

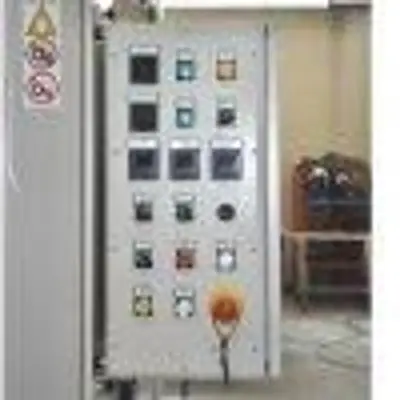

Electric control board with PLC to control the working cycle step by step:
Hydraulic pressure on the plate and air pressure inside the pressurisation chamber
Air temperature control
Automatic pressure reset system
Time alarm for automatic opening
Time alarming system for gluing control
Opening/closing pushbuttons
TECHNICAL DATA
Specific working pressure kg/cm²: 6
Cylinders diameter: Ø 3.35″
Stroke of cylinders: 17.7″
Useful working dimensions: 92.5″×49.2″ / 112″×49.2″
Number. of pressing cylinders: 12
Total pressure totap: 200 to 240 metric ton.
OPTIONAL
PVC cutter
Spare membrane 25/14 30/14
Loading and unloading tray 25/14 – 30/14
Double loading and unloading tray 25/14 – 30/14
Please contact us to lean more about the availability and options Get Your Free estimate for planer Today
All press options are available at the link below
Presses
Black brother air vacuum press black bros also have similar configuration as well
